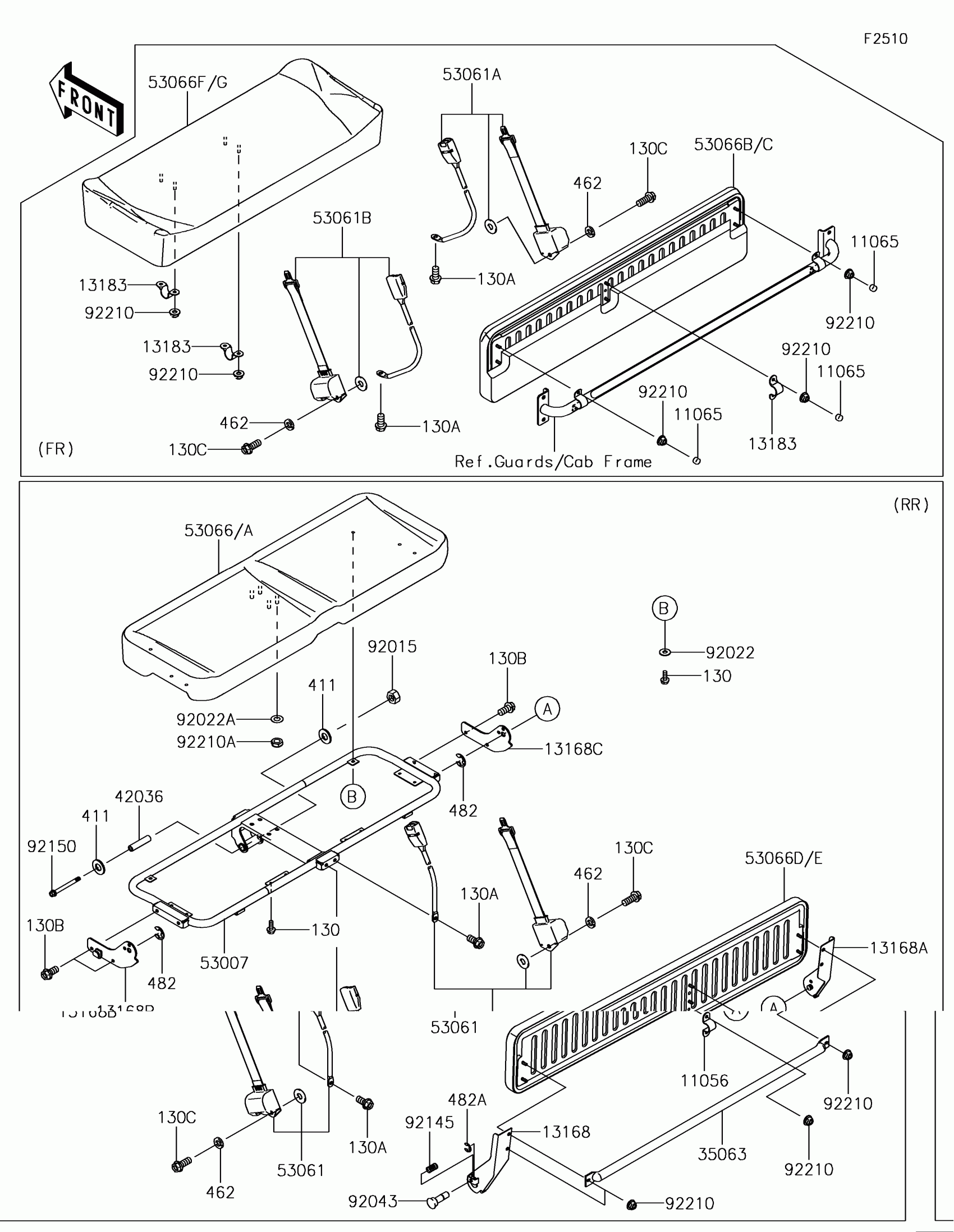

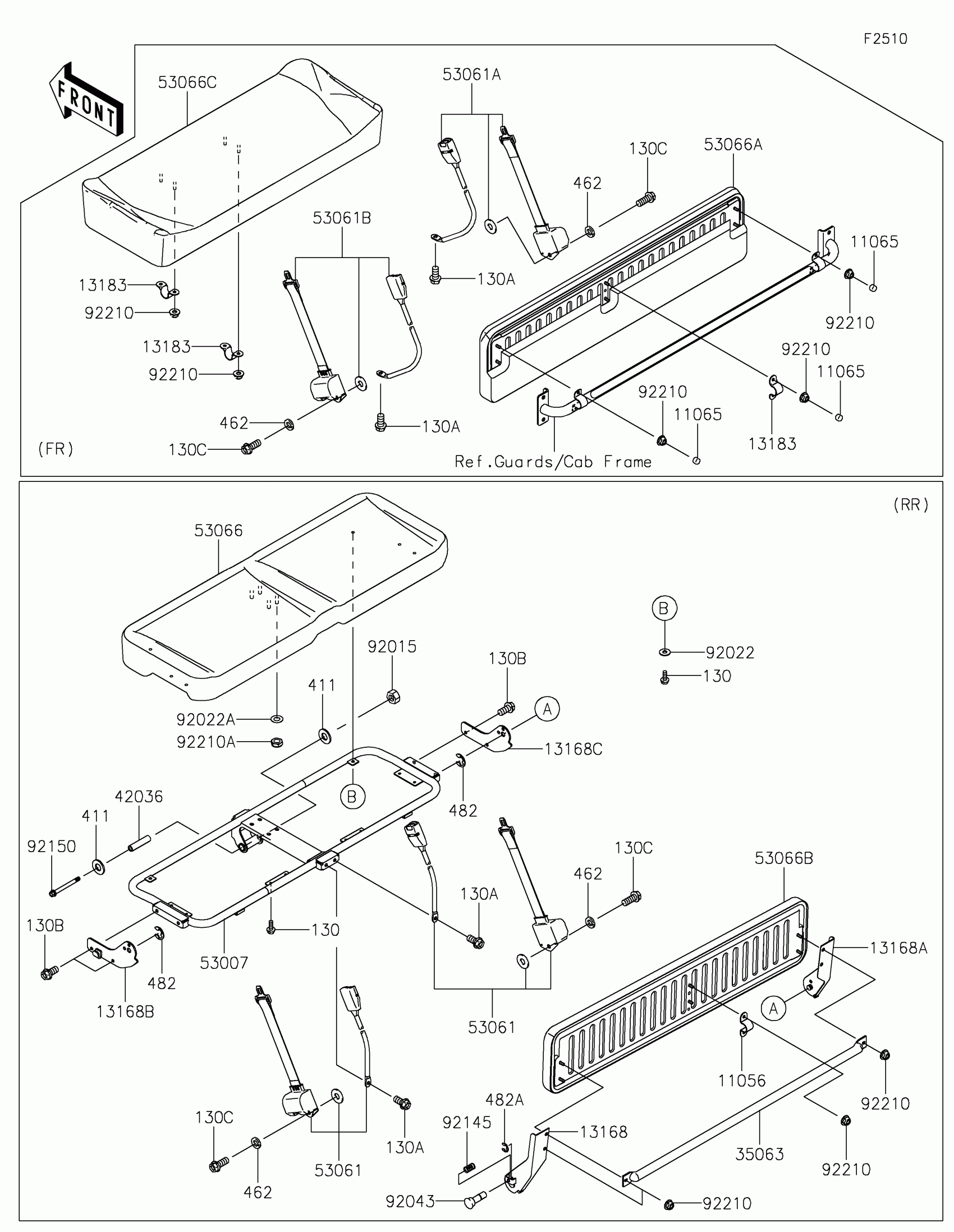

Kawasaki MULE™ 4010 TRANS4x4® CAMO Seat Diagram
#
Description
Price
11056
BRACKET,SEAT BACK
11056-0034
$7.88
11065
CAP
11065-7504
$1.50
13168
LEVER,SEAT,TOP,LH
13168-7502
$58.46
13168A
LEVER,SEAT,TOP,RH
13168-7503
$58.46
13168B
LEVER,SEAT,LWR,LH
13168-7504
$47.79
13168C
LEVER,SEAT,LWR,RH
13168-7505
$47.79
13183
PLATE,SEAT
13183-1400
$7.58
35063
STAY,REAR BACK
35063-7510
$147.48
42036
SLEEVE,12.1X20X85
42036-7501
$10.13
53007
FRAME-SEAT
53007-0327
$157.04
53061
BELT-SEAT,RR
53061-0314
$117.32
53061A
BELT-SEAT,FR,RH
53061-0315
$117.32
53061B
BELT-SEAT,FR,LH
53061-0316
$117.32
53066
SEAT-ASSY,RR,LWR,BLACK
53066-0237-MA
$535.13
53066A
SEAT-ASSY,FR,BACK,BLACK
53066-0258-MA
$275.29
53066B
SEAT-ASSY,RR,BACK,BLACK
53066-0259-MA
$275.29
53066C
SEAT-ASSY,FR,LWR,BLACK
53066-0274-MA
$472.69
92015
NUT,LOCK,12MM,BLACK
92015-1190
$7.34
92022
WASHER,7X18X1.2
92022-1545
$1.03
92022A
WASHER,10.5X20X1
92022-239
$3.92
92043
PIN
92043-7503
$4.17
92145
SPRING
92145-7507
$1.50
92150
BOLT,FLANGED,12X117
92150-1895
$12.74
92210
NUT,FLANGED,LOCK,8MM
92210-0005
$4.67
92210A
NUT,LOCK,10MM
92210-0278
$2.15
130
BOLT-FLANGED,6X16
130BA0616
$1.20
130A
BOLT-FLANGED,12X20
130BA1220
$3.74
130B
BOLT-FLANGED,10X20
130BB1020
$5.96
130C
BOLT-FLANGED,12X25
130BB1225
$5.05
411
WASHER-PLAIN
411AB1200
$3.92
462
WASHER-SPRING,12MM
462DB1200
$1.19
482
CIRCLIP-TYPE-E,12MM
482EA0200
$2.30
482A
CIRCLIP-TYPE-E,8MM
482EA8000
$0.68
