Guards/Cab Frame

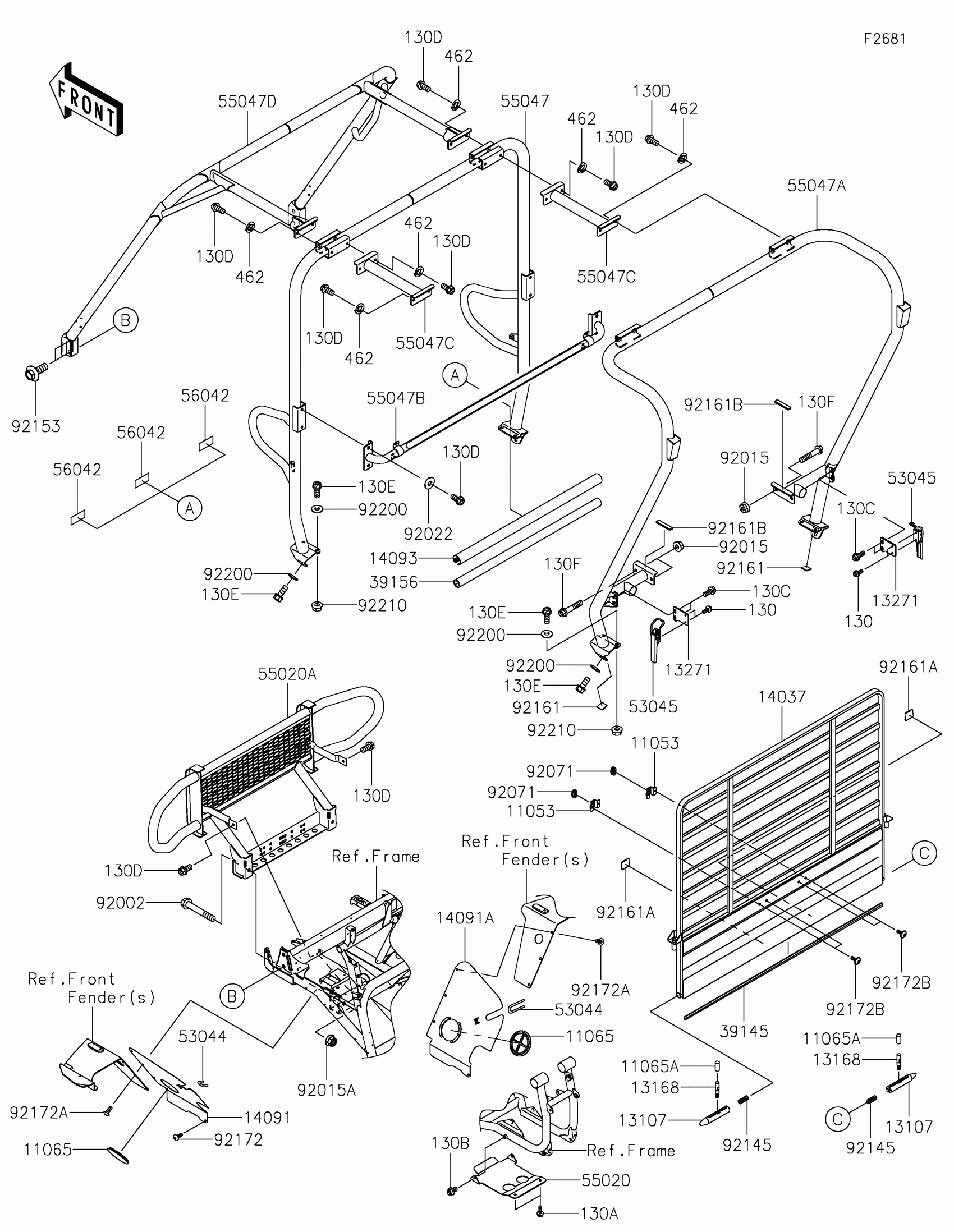

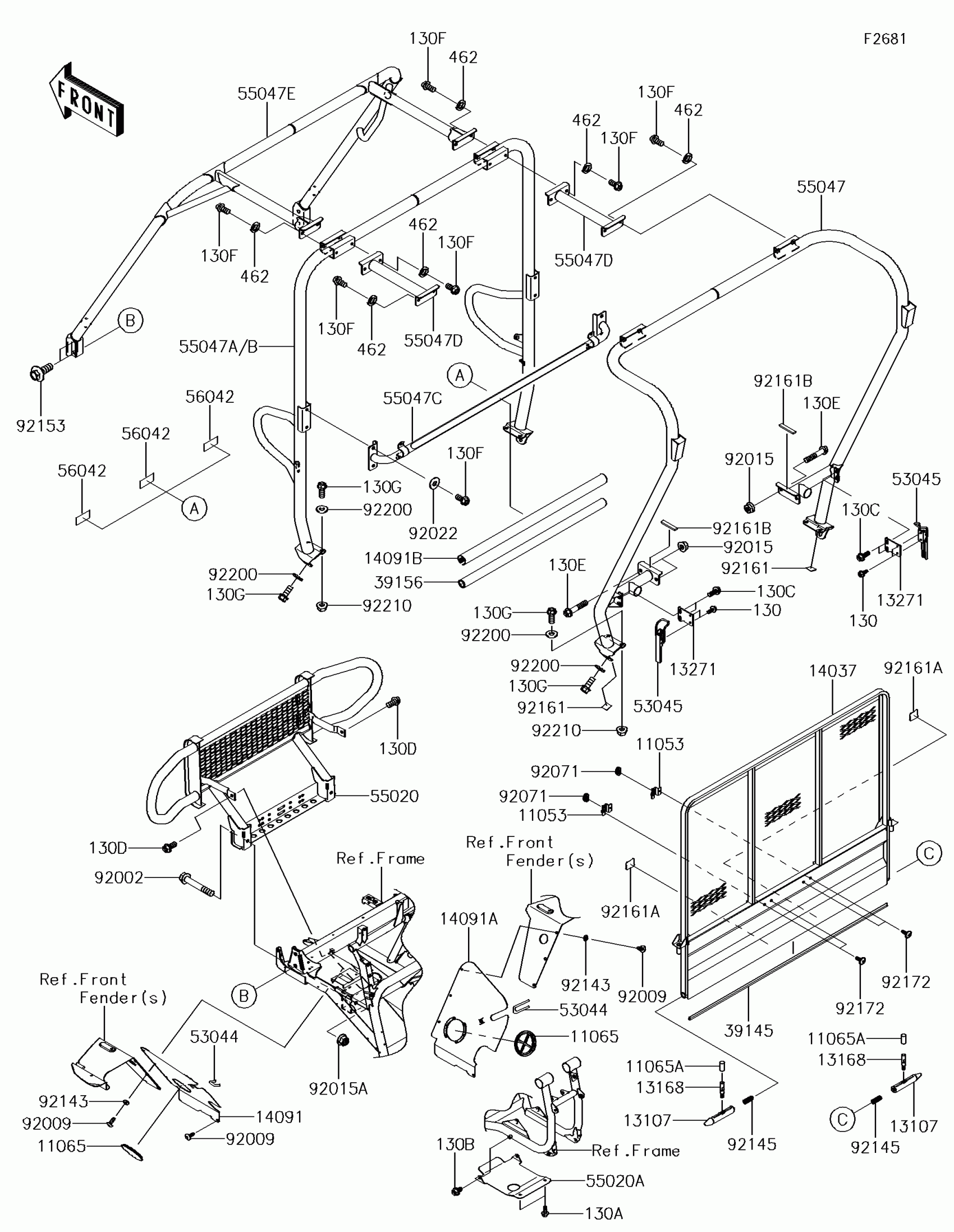

Kawasaki MULE™ 4010 TRANS4x4® CAMO Guards/Cab Frame Diagram
#
11053
BRACKET,SCREEN
11053-7528
$5.99
11065
CAP,F.BLACK
11065-1053-6Z
$8.40
11065A
CAP
11065-7503
$1.69
13107
SHAFT
13107-7501
$10.88
13168
LEVER
13168-7506
$8.17
13271
PLATE,HOOK
13271-7540
$11.77
14037
SCREEN,REAR CAB,T.BLACK
14037-0811-388
$195.95
14091
COVER,FR,LH
14091-1758
$75.61
14091A
COVER,FR,RH
14091-1759
$75.61
14093
COVER
14093-0907
$32.35
39145
TRIM-SEAL,L=1157
39145-7502
$29.08
39156
PAD
39156-7506
$11.59
53044
TRIM
53044-1137
$10.65
53045
HOOK-ASSY
53045-7501
$23.27
55020
GUARD,GEAR CASE
55020-2295
$30.42
55020A
GUARD,FR
55020-2299
$252.43
55047
BAR-COMP,CNT,T.BLACK
55047-0353-388
$543.51
55047A
BAR-COMP,RR,T.BLACK
55047-0385-388
$659.59
55047B
BAR-COMP,FRONT SEAT,T.BLACK
55047-7503-388
$71.19
55047C
BAR-COMP,TOP,T.BLACK
55047-7504-388
$50.30
55047D
BAR-COMP,FR,T.BLACK
55047-7510-388
$472.03
56042
ADHESIVE
56042-7502
$1.45
92002
BOLT,FLANGED,12X75
92002-1661
$13.75
92015
NUT,FLANGED,10MM
92015-1428
$5.00
92015A
NUT,LOCK,FLANGED,12MM
92015-1433
$8.86
92022
WASHER,10.5X26X2.3
92022-044
$3.92
92071
GROMMET
92071-7505
$2.26
92145
SPRING,TENSIONER
92145-1215
$4.63
92153
BOLT,FLANGED,14X36
92153-1282
$7.63
92161
DAMPER
92161-0020
$5.00
92161A
DAMPER
92161-0061
$2.41
92161B
DAMPER
92161-7514
$1.45
92172
SCREW,TAPPING,6X16
92172-0739
$0.85
92172A
SCREW,6X16
92172-0826
$2.26
92172B
SCREW,6X14
92172-0996
$2.58
92200
WASHER,10.2X23X2.5
92200-0211
$3.35
92210
NUT,LOCK,FLANGED,10MM
92210-0276
$2.61
130
BOLT-FLANGED,6X14
130BA0614
$1.20
130A
BOLT-FLANGED,6X16
130BA0616
$1.20
130B
BOLT-FLANGED,8X12
130BA0812
$0.95
130C
BOLT-FLANGED,8X20
130BA0820
$4.14
130D
BOLT-FLANGED,10X20
130BA1020
$3.35
130E
BOLT-FLANGED,10X25
130BA1025
$3.40
130F
BOLT-FLANGED,10X50
130BA1050
$1.64
462
WASHER-SPRING,10MM
462DA1000
$4.60
