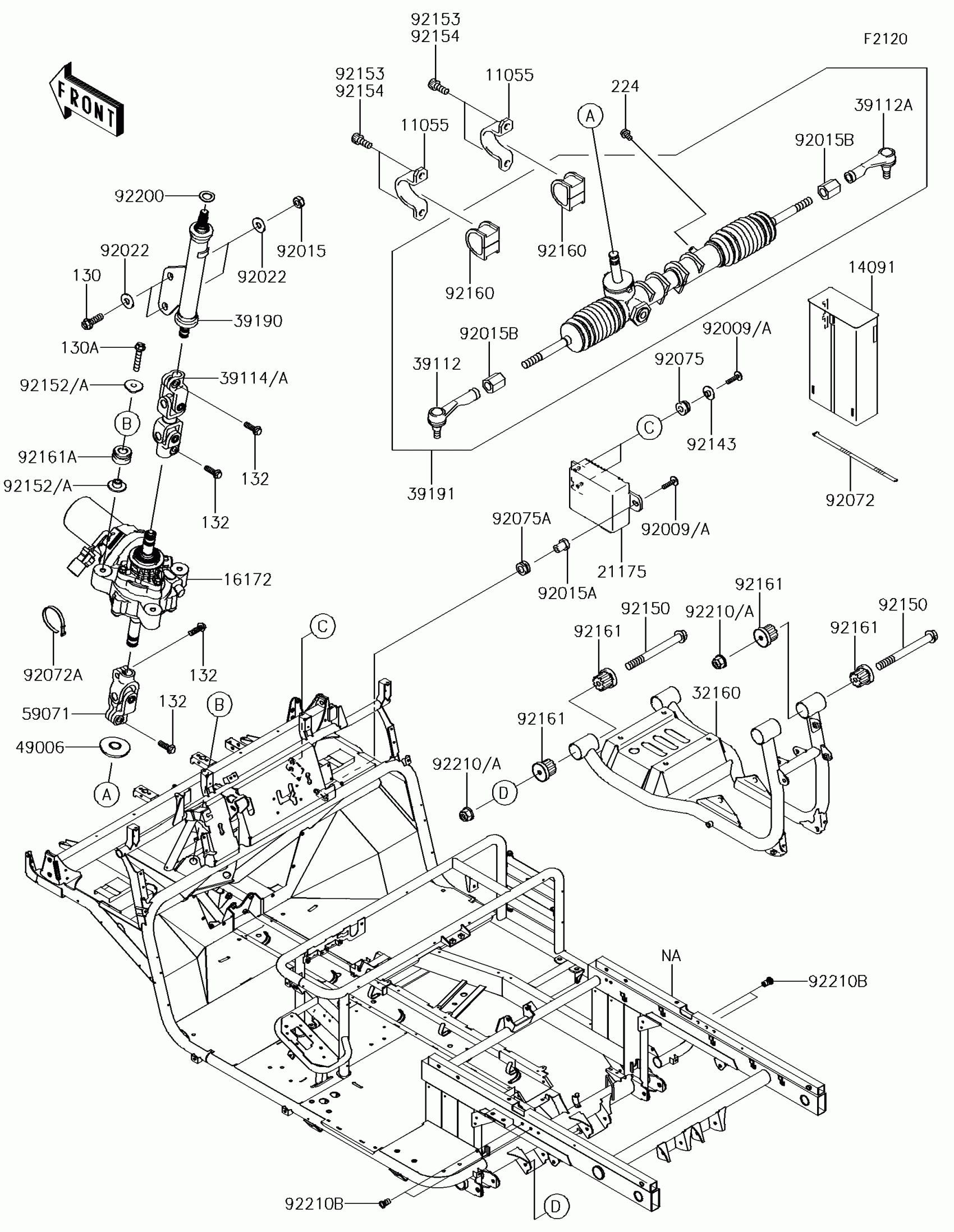

Kawasaki MULE™ 4010 TRANS4x4® CAMO Frame Diagram

#

Description
Price

11055

BRACKET,STEERING GEAR

11055-1240

$10.61

14091

COVER,ECU

14091-7560

$46.35

16172

ACTUATOR

16172-0028

$1,812.19

21175

CONTROL UNIT-ELECTRONIC,E.P.S

21175-7501

$858.20

32160

FRAME-COMP,RR

32160-0004

Unavailable

39112

RODEND-TIE,STEERING GEAR,LH

39112-1068

$96.05

39112A

RODEND-TIE,STEERING GEAR,RH

39112-1069

$96.05

39114

SHAFT-COMP-STRG

39114-0019

$96.23

39114A

SHAFT-COMP-STRG

39114-0308

Unavailable

39190

SHAFT-ASSY-STEERING

39190-7501

$231.78

39191

GEAR-ASSY-STEERING

39191-0021

$1,066.48

49006

BOOT,STEERING SHAFT,LWR

49006-1255

$34.90

59071

JOINT

59071-7501

$128.28

92009

SCREW,6X28,BLACK

92009-1400

$5.52

92009A

SCREW,6X25

92009-1465

$3.92

92015

NUT,LOCK,10MM,BLACK

92015-1189

$7.34

92015A

NUT,RUBBER,6MM

92015-1692

$7.34

92015B

NUT

92015-1864

$14.39

92022

WASHER,10.5X26X2.3

92022-044

$3.92

92072

BAND,L=123

92072-030

$5.00

92072A

BAND,L=186

92072-056

$5.00

92075

DAMPER,RUBBER

92075-1123

$5.00

92075A

DAMPER

92075-294

$4.10

92143

COLLAR,L=6.5

92143-1025

$6.22

92150

BOLT,FLANGED,10X100

92150-1731

$18.15

92152

COLLAR,8.5X30X10.6

92152-2149

$5.04

92152A

COLLAR

92152-7513

$5.04

92154

BOLT,SOCKET,10X23

92154-1434

$2.75

92160

DAMPER,STEERING GEAR

92160-1084

$31.96

92161

DAMPER

92161-0800

$9.61

92161A

DAMPER,ACTUATOR

92161-7517

$3.35

92200

WASHER,15X25X1.6

92200-0460

$3.71

92210

NUT,LOCK,FLANGED,10MM

92210-0276

$2.61

92210A

NUT,LOCK,FLANGED,10MM

92210-1139

$4.18

92210B

NUT,POP,6MM,L=15

92210-1397

$5.48

130

BOLT-FLANGED,10X30

130BA1030

$5.25

130A

BOLT-FLANGED,8X45

130CA0845

$1.22

132

BOLT-FLANGED-SMALL,8X25

132BA0825

$4.12

224

SCREW-PAN-WP-CROS,5X8

224AA0508

$0.68
