- MULE™ 4010 TRANS4x4® CAMO
Chassis Electrical Equipment

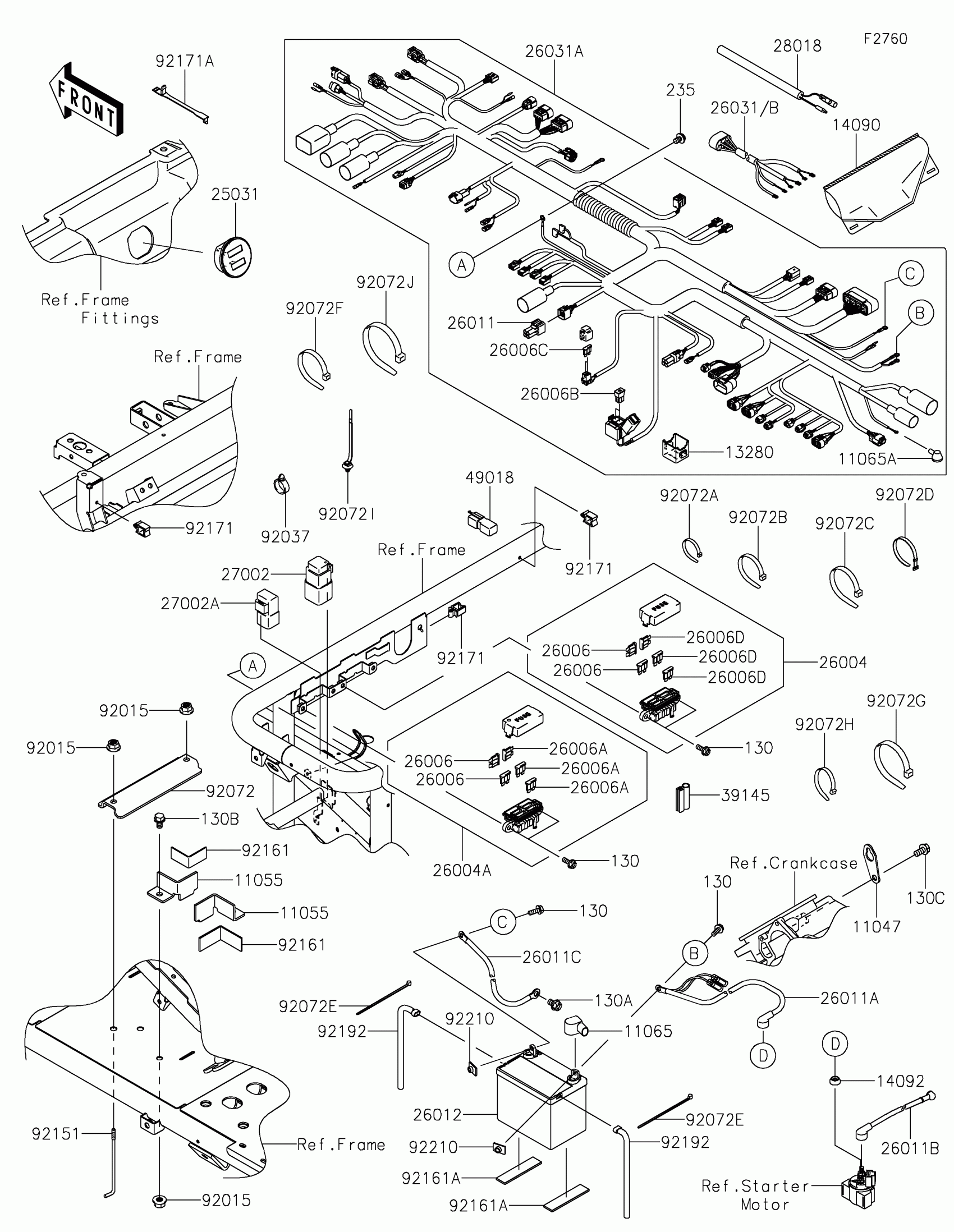

Kawasaki MULE™ 4010 TRANS4x4® CAMO Chassis Electrical Equipment Diagram
#
11047
BRACKET,F.BLACK
11047-2056-9H
$8.44
11055
BRACKET
11055-0433
$3.77
11065
CAP,BATTERY TERMINAL
11065-0285
$4.60
11065A
CAP,NEUTRAL SW.
11065-0726
$7.60
13280
HOLDER
13280-7508
$3.21
14090
COVER,COUPLER
14090-1611
$8.51
14092
COVER,MAGNETIC SW.
14092-0851
$1.93
25031
METER-ASSY
25031-0829
$111.46
26004
FUSE-ASSY
26004-0018
$43.96
26004A
FUSE-ASSY
26004-0019
$43.96
26006
FUSE,BLADE,30A,GREEN
26006-0004
$6.02
26006A
FUSE,BLADE,10A,RED
26006-0005
$6.02
26006B
FUSE,SLOW BLOW,BT,40A,GREEN
26006-0014
$5.24
26006C
FUSE,7.5A
26006-0015
$5.24
26006D
FUSE,BLADE,20A,YELLOW
26006-1051
$4.96
26011
WIRE-LEAD
26011-0037
$13.02
26011A
WIRE-LEAD,BATTERY(+)
26011-0813
$18.25
26011B
WIRE-LEAD,STARTER
26011-0815
$51.80
26011C
WIRE-LEAD,BATTERY(-)
26011-7516
$50.02
26012
BATTERY,12V 14AH
26012-0107
Unavailable
26031
HARNESS
26031-2080
$102.85
26031A
HARNESS,MAIN
26031-2459
$744.45
26031B
HARNESS
26031-3842
$109.11
27002
RELAY-ASSY
27002-1068
$68.42
27002A
RELAY-ASSY
27002-1088
$42.06
28018
RESISTOR
28018-0553
$29.54
39145
TRIM-SEAL
39145-0046
$5.98
49018
DIODE
49018-0005
$47.13
92015
NUT,FLANGED,8MM
92015-1406
$4.45
92037
CLAMP,HOSE
92037-1827
$7.45
92072
BAND
92072-0112
$11.81
92072A
BAND,L=123
92072-030
$5.00
92072B
BAND,L=149
92072-031
$5.00
92072C
BAND,L=218
92072-032
$5.00
92072D
BAND,L=186
92072-056
$5.00
92072E
BAND,92X2.4
92072-0791
$0.42
92072F
BAND,L=202
92072-1195
$1.56
92072G
BAND,L=250
92072-1237
$2.14
92072H
BAND,L=188
92072-1239
$1.73
92072I
BAND,OS170-FT7(BLACK)
92072-1414
$3.74
92072J
BAND,L=368.3
92072-3872
$1.59
92151
BOLT,BATTERY
92151-1897
$6.69
92161
DAMPER
92161-0580
$2.40
92161A
DAMPER,31.1X130X5
92161-0936
$4.68
92171
CLAMP
92171-0290
$3.73
92171A
CLAMP
92171-1365
$4.20
92192
TUBE,BREATHER,7X10X210,WHT MK
92192-1680
$3.90
92210
NUT,PLATE,6MM
92210-1352
$2.41
130
BOLT-FLANGED,6X16
130BA0616
$1.20
130A
BOLT-FLANGED,8X12
130BA0812
$0.95
130B
BOLT-FLANGED,8X14
130BA0814
$2.16
130C
BOLT-FLANGED,8X16
130BA0816
$1.12
235
SCREW-PAN-WP-CROS,6X10
235AA0610
$3.86
