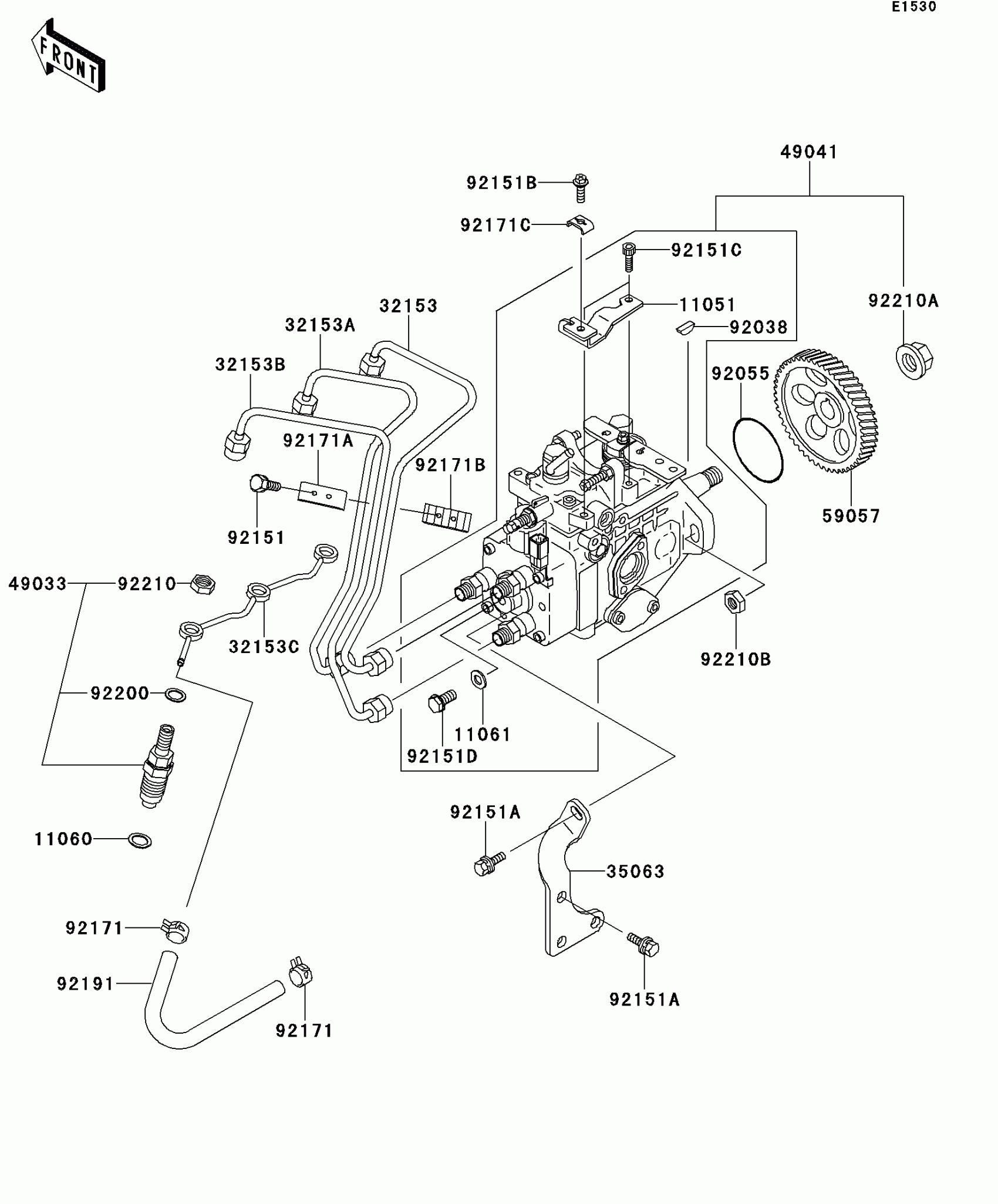

Kawasaki MULE™ 4010 DIESEL 4x4 Fuel Injection Diagram

Description

Price

11051

BRACKET,THROTTLE

11051-1570

$41.66

11060

GASKET,INJECTION NOZZLE

11060-1962

$6.42

11061

GASKET,INJECTION PUMP

11061-1052

$2.85

32153

PIPE,RH

32153-1190

$41.81

32153A

PIPE,CNT

32153-1191

$50.11

32153B

PIPE,LH

32153-1192

$45.62

32153C

PIPE,NOZZLE LEAKAGE

32153-1194

$38.65

35063

STAY,INJECTION PUMP

35063-1097

$33.33

49033

NOZZLE-INJECTION

49033-0018

$221.25

49041

PUMP-INJECTION

49041-0001

$2,673.69

59057

GEAR-HELICAL,INJECTION PUMP

59057-1003

$169.03

92038

KEY

92038-1065

$3.91

92055

RING-O,INJECTION PUMP

92055-1629

$2.58

92151

BOLT,6X20

92151-1667

$2.58

92151A

BOLT,8X20

92151-1697

$2.58

92151B

BOLT,5X20

92151-1698

$2.58

92151C

BOLT,SOCKET

92151-1718

$7.92

92151D

BOLT,INJECTION PUMP

92151-1885

$7.79

92171

CLAMP,TUBE

92171-1165

$2.58

92171A

CLAMP,INJECTION PIPE

92171-1166

$9.40

92171B

CLAMP,INJECTION PIPE

92171-1167

$15.76

92171C

CLAMP,THROTTLE

92171-1168

$6.52

92191

TUBE,FUEL

92191-1450

$5.06

92200

WASHER,INJECTION NOZZLE

92200-1507

$3.86

92210

NUT,INJECTION NOZZLE

92210-1220

$6.78

92210A

NUT,14MM

92210-1221

$5.84

92210B

NUT,8MM

92210-1222

$2.58
