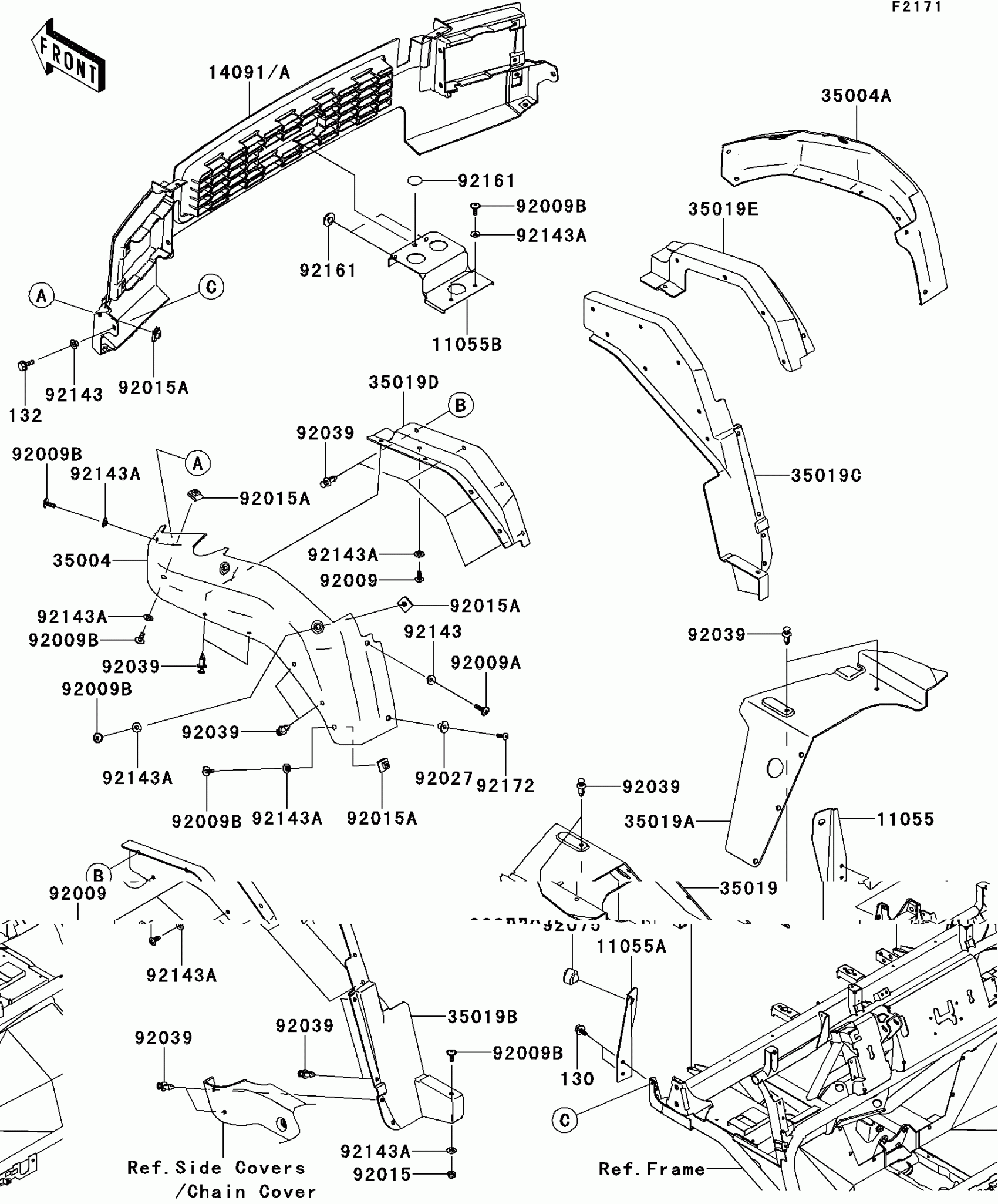

Kawasaki MULE™ 4010 DIESEL 4x4 Front Fender(s)(F9F-FBF) Diagram

Description

Price

11055

BRACKET

11055-0917

$30.71

11055A

BRACKET

11055-0918

$30.71

11055B

BRACKET

11055-0954

$40.81

14091A

COVER,FRONT GRILL,W.GREEN

14091-0818-286

$102.68

35004

FENDER-FRONT,SIDE,LH,F.BLACK

35004-0123-6Z

$82.78

35004A

FENDER-FRONT,SIDE,RH,F.BLACK

35004-0124-6Z

$82.78

35019

FLAP,FR,LH

35019-0062

$37.96

35019A

FLAP,FR,RH

35019-0063

$37.96

35019B

FLAP,SIDE,RR,LH

35019-0064

$69.70

35019C

FLAP,SIDE,RR,RH

35019-0065

$69.70

35019D

FLAP,SIDE,MIDDLE,LH

35019-0068

$49.82

35019E

FLAP,SIDE,MIDDLE,RH

35019-0069

$49.82

92009

SCREW,TAPPING,6X16

92009-1166

$5.52

92009A

SCREW,6X22,BLACK

92009-1256

$2.78

92009B

SCREW,6X16

92009-1621

Unavailable

92015

NUT,LOCK,FLANGED,6MM

92015-1675

$4.31

92015A

NUT,CLAMP,6MM

92015-1678

$5.52

92027

COLLAR

92027-1767

$5.52

92039

RIVET

92039-1229

$1.19

92075

DAMPER

92075-015

$5.00

92143

COLLAR

92143-1057

$5.00

92143A

COLLAR

92143-1087

$4.31

92161

DAMPER,RUBBER

92161-1200

$4.20

92172

SCREW

92172-1072

$2.41

130

BOLT-FLANGED,6X14

130BB0614

$2.49

132

BOLT-FLANGED-SMALL,6X20

132BB0620

$3.99
