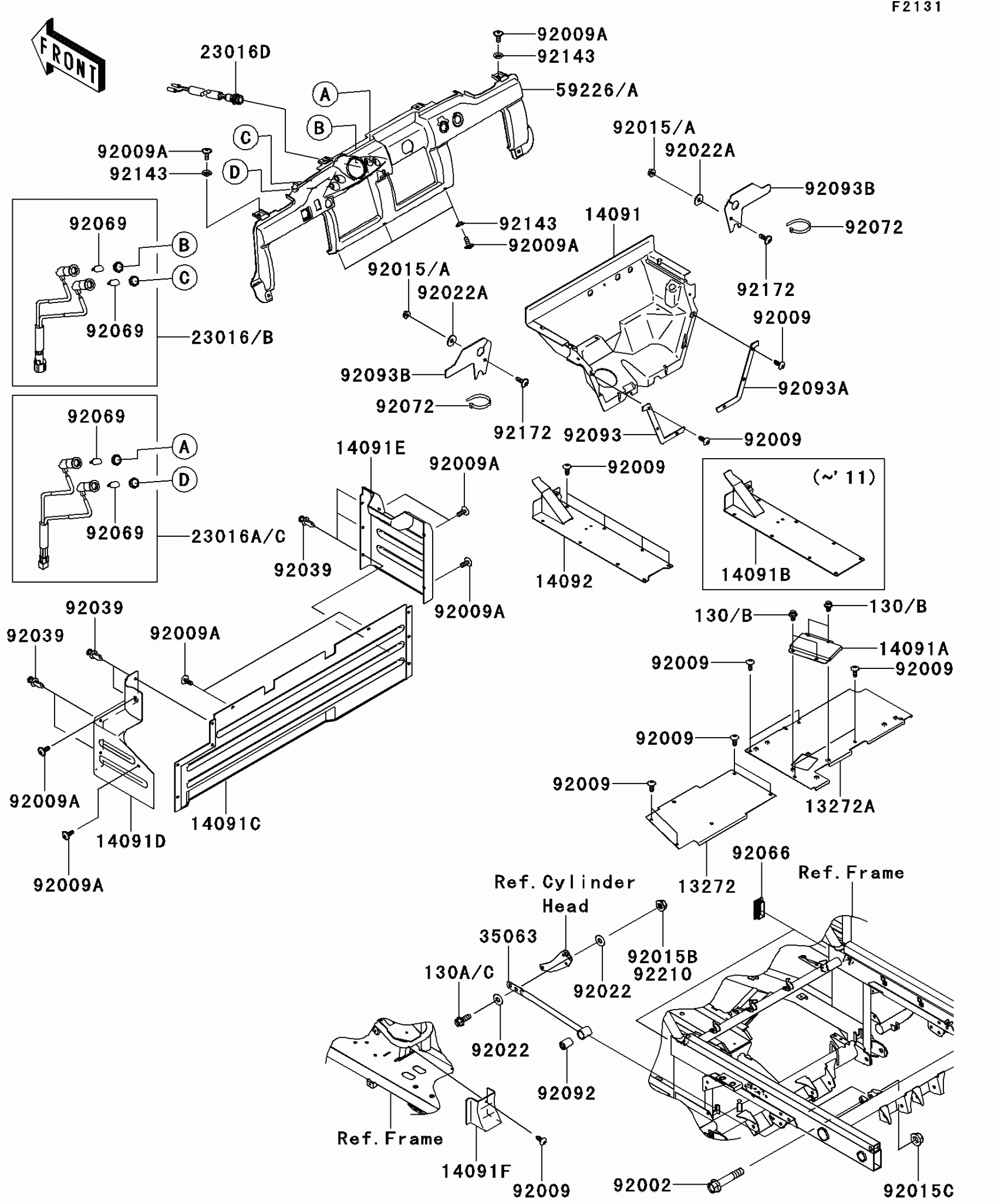

Kawasaki MULE™ 4010 DIESEL 4x4 Frame Fittings Diagram

#

Description
Price

13272

PLATE

13272-0284

$104.14

13272A

PLATE

13272-0285

$123.48

14091

COVER,FLOOR

14091-1378

$98.40

14091A

COVER

14091-1666

$20.39

14091B

COVER,FLOOR,CNT,FR

14091-1692

$87.14

14091C

COVER,FRONT SEAT,CNT

14091-7531

$113.24

14091D

COVER,FRONT SEAT,LH

14091-7541

$34.21

14091E

COVER,FRONT SEAT,RH

14091-7542

$49.47

14091F

COVER,PARKING CABLE

14091-7551

$13.47

14092

COVER,FLOOR,CNT,FR

14092-0832

$81.76

23016B

LAMP-ASSY,PARKING&WATER TEMP

23016-0035

$87.81

23016C

LAMP-ASSY,OIL PRESSURE&GROW

23016-0037

$91.16

23016D

LAMP-ASSY,LED

23016-7501

Unavailable

35063

STAY

35063-1107

$61.65

59226

PANEL-CONTROL,F.BLACK

59226-0012-6Z

$124.59

59226A

PANEL-CONTROL,F.BLACK

59226-0026-6Z

$114.91

92002

BOLT,ROD,12MM

92002-1757

$12.71

92009

SCREW,TAPPING,6X16

92009-1166

$5.52

92009A

SCREW,6X16

92009-1621

Unavailable

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$5.52

92015A

NUT,FLANGED,6MM

92015-1367

$3.69

92015B

NUT,FLANGED,LOCK,8MM

92015-1668

$4.69

92015C

NUT

92015-1706

$7.45

92022

WASHER,8.5X20X1.6,BLACK

92022-1317

$4.31

92022A

WASHER,6.5X20X1.6,BLACK

92022-1346

$0.49

92039

RIVET

92039-1229

$1.19

92066

PLUG

92066-7505

$4.51

92069

BULB,12V 1.7W,T10

92069-1059

$4.96

92072

BAND,L=368.3

92072-3872

$1.59

92092

BUSHING-RUBBER

92092-005

$14.10

92093

SEAL,FRONT FENDER,LH

92093-1293

$9.64

92093A

SEAL,FRONT FENDER,RH

92093-1294

$10.00

92093B

SEAL,LOWER COVER

92093-1295

$22.57

92143

COLLAR

92143-1087

$4.31

92172

SCREW,6X18

92172-0002

$2.80

92210

NUT,FLANGED,LOCK,8MM

92210-0005

$4.67

130

BOLT-FLANGED,6X10

130BA0610

$1.20

130A

BOLT-FLANGED,8X22

130BA0822

$3.21

130B

BOLT-FLANGED,6X10

130BB0610

$2.49

130C

BOLT-FLANGED,8X22

130BB0822

$2.34
