Description

Price

11055

BRACKET,HINGE,LH

11055-0037

$22.13

11055A

BRACKET,HINGE,RH

11055-0038

$22.13

11055B

BRACKET,RESERVOIR TANK

11055-0124

$4.78

11065

CAP,F.BLACK

11065-1053-6Z

$8.40

13280A

HOLDER,CUP HOLDER,LH,W.GREEN

13280-0265-286

$14.01

13280C

HOLDER,CUP HOLDER,RH,W.GREEN

13280-0266-286

$14.01

14091A

COVER,FRONT FENDER,W.GREEN

14091-0829-286

$186.25

14091B

COVER,RESERVOIR TANK

14091-1715

$30.42

16171

LINK

16171-0013

$34.23

21083

ARM,HOOD

21083-0051

$75.54

27012

HOOK,HOOD

27012-0119

$5.68

35004A

FENDER-FRONT,CNT,W.GREEN

35004-0096-286

$345.47

39145

TRIM-SEAL,L=2350

39145-0032

$46.93

46102

ROD

46102-0103

$4.09

92009

SCREW,TAPPING,6X16

92009-1166

$5.52

92009A

SCREW,6X22,BLACK

92009-1256

$2.78

92009B

SCREW,6X16

92009-1621

Unavailable

92015

NUT,CLAMP,6MM

92015-1678

$5.52

92022

WASHER,6.5X20X1.6,BLACK

92022-1346

$0.49

92022A

WASHER,7X18X1.2

92022-1545

$1.03

92022B

WASHER,4.3X12.5X1

92022-1949

$3.60

92039

RIVET

92039-1150

$3.92

92039A

RIVET

92039-1229

$1.19

92043

PIN,6X9

92043-1626

$2.26

92143

COLLAR

92143-1057

$5.00

92143A

COLLAR

92143-1087

$4.31

92145

SPRING

92145-0215

$4.55

92161

DAMPER,FR HOOD

92161-0790

$2.26

130

BOLT-FLANGED,6X16

130BB0616

$2.06

410

WASHER-PLAIN-SMALL

410AA0600

$1.31

550

PIN-COTTER,1.6X15

550AA1615

$2.51

554

PIN-SNAP,1.2X21.2

554DA0600

$0.95

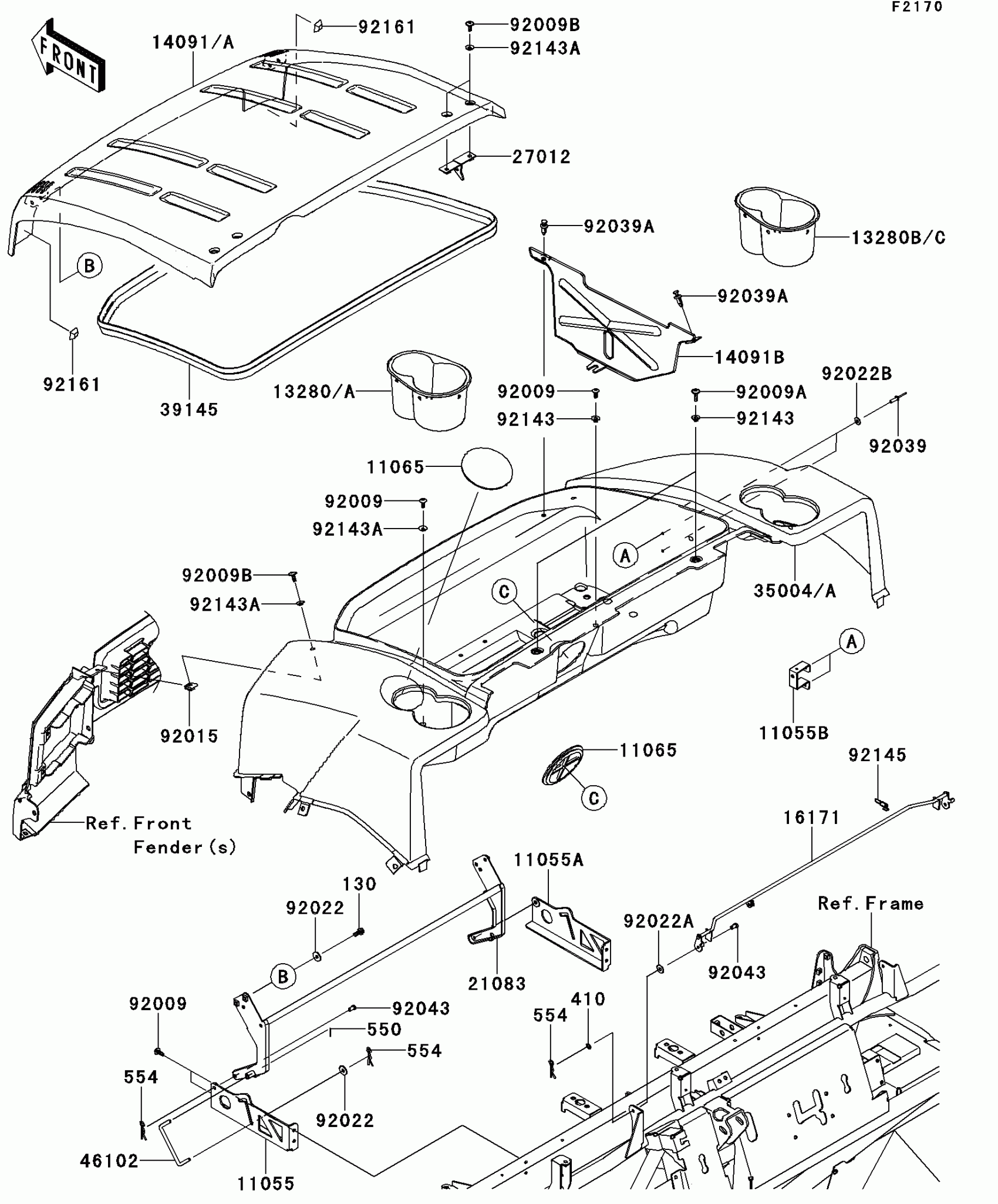

Kawasaki MULE™ 4010 DIESEL 4x4 Fenders(F9F-FBF) Diagram

BRACKET,HINGE,LH

BRACKET,HINGE,RH

BRACKET,RESERVOIR TANK

CAP,F.BLACK

HOLDER,CUP HOLDER,LH,W.GREEN

HOLDER,CUP HOLDER,RH,W.GREEN

COVER,FRONT FENDER,W.GREEN

COVER,RESERVOIR TANK

LINK

ARM,HOOD

HOOK,HOOD

FENDER-FRONT,CNT,W.GREEN

TRIM-SEAL,L=2350

ROD

SCREW,TAPPING,6X16

SCREW,6X22,BLACK

SCREW,6X16

NUT,CLAMP,6MM

WASHER,6.5X20X1.6,BLACK

WASHER,7X18X1.2

WASHER,4.3X12.5X1

RIVET

RIVET

PIN,6X9

COLLAR

COLLAR

SPRING

DAMPER,FR HOOD

BOLT-FLANGED,6X16

WASHER-PLAIN-SMALL

PIN-COTTER,1.6X15

PIN-SNAP,1.2X21.2
