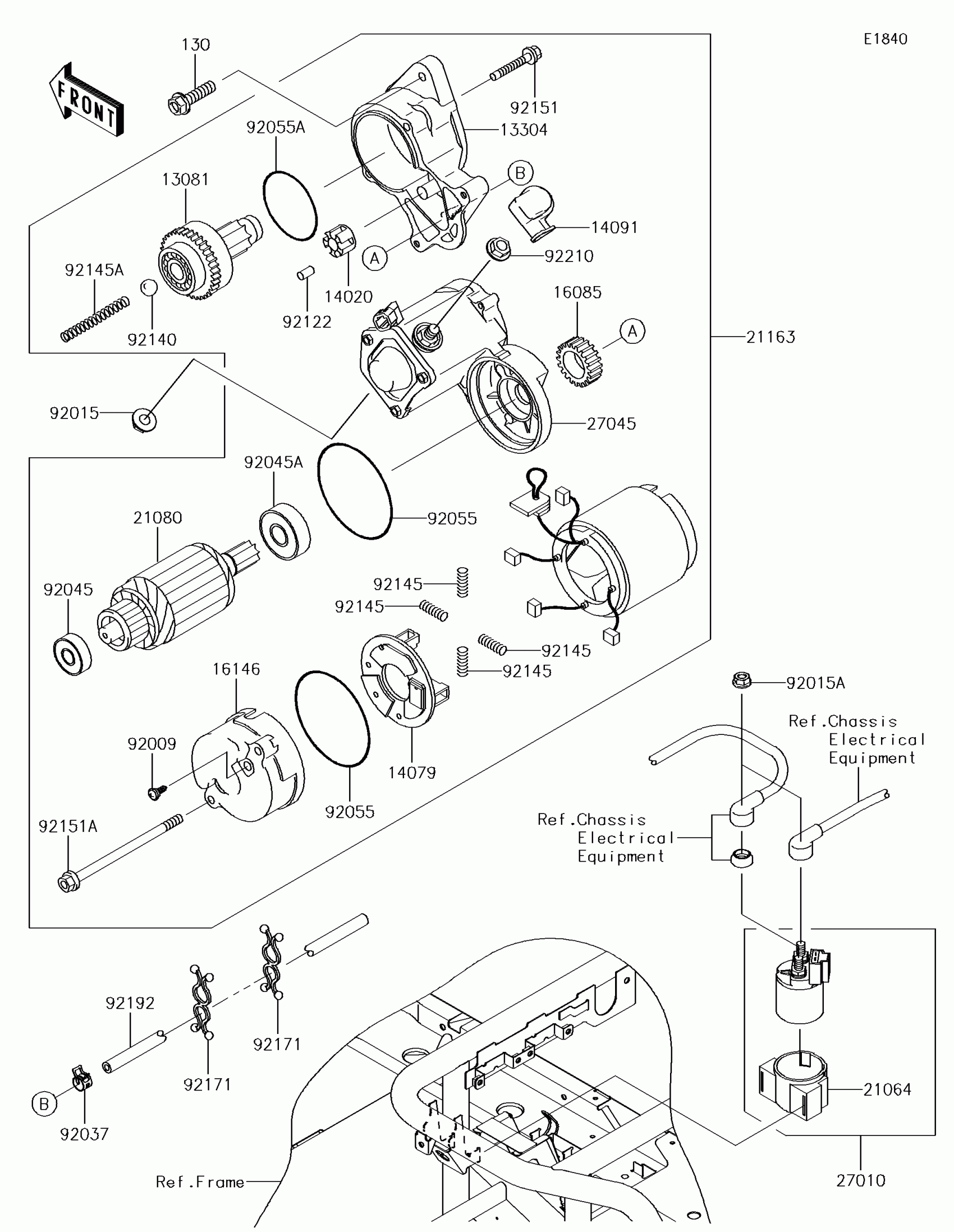

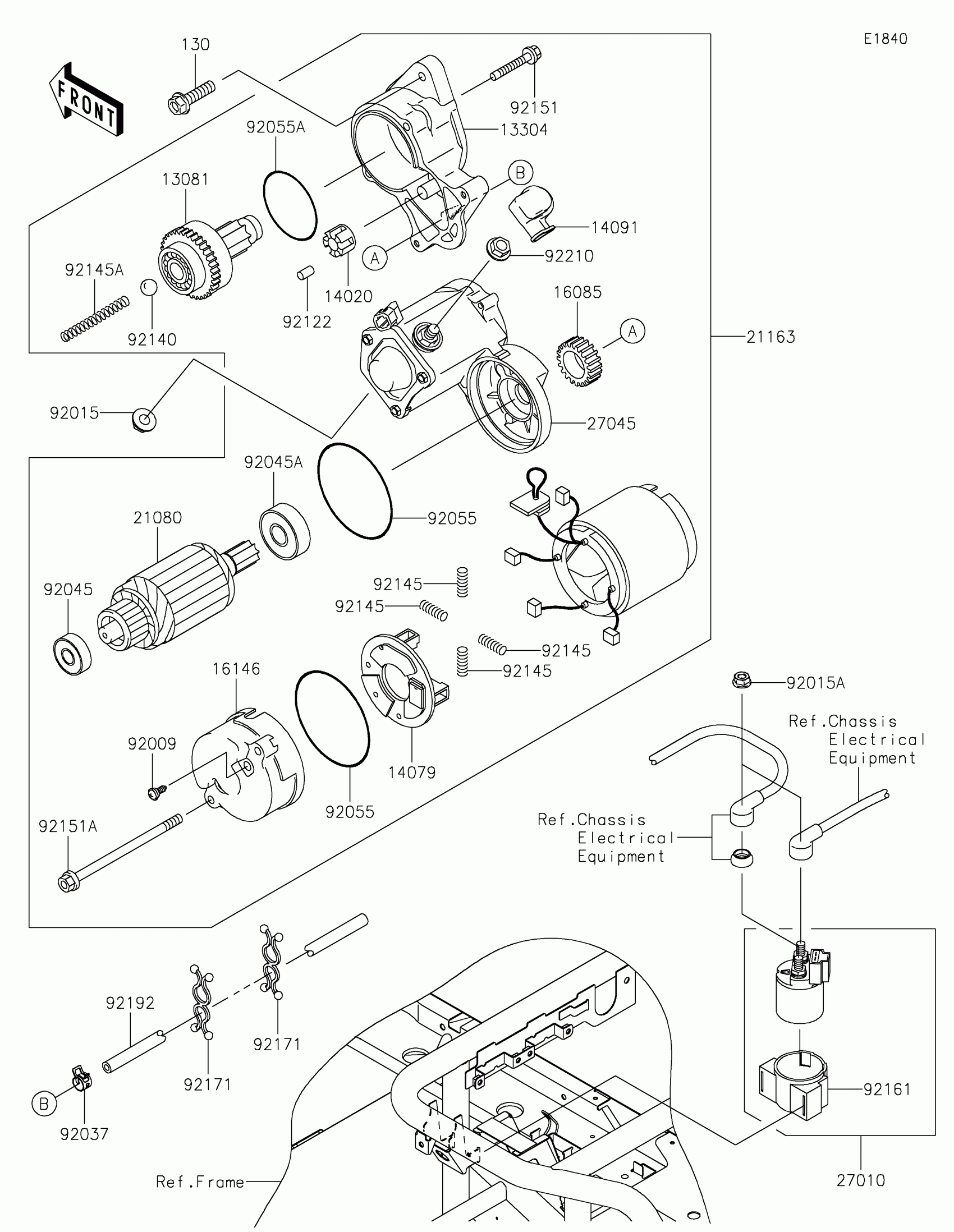

Kawasaki MULE™ 4010 4x4 Starter Motor Diagram

#

Description
Price

13081

CLUTCH-ASSY

13081-2231

$130.94

13304

HOUSING-ASSY

13304-2253

$278.63

14020

RETAINER

14020-2112

$11.16

14079

HOLDER-ASSY

14079-2064

$82.67

14091

COVER

14091-2080

$6.12

16085

GEAR

16085-2055

$40.82

16146

COVER-ASSY

16146-2243

$101.81

21064

DAMPER,MAGNETIC SWITCH

21064-002

Unavailable

21080

ARMATURE

21080-2070

$419.40

21163

STARTER-ELECTRIC

21163-2134

$746.81

27010

SWITCH,MAGNETIC

27010-1098

Unavailable

27045

SWITCH-ASSY

27045-2020

$436.54

92009

SCREW

92009-2455

$2.80

92015

NUT,8MM

92015-1143

$0.65

92015A

NUT,FLANGED,6MM

92015-1367

$3.69

92037

CLAMP

92037-2113

$1.03

92045

BEARING-BALL,60102RKMDSH2C3

92045-2257

$27.70

92045A

BEARING-BALL

92045-2258

$33.65

92055

RING-O

92055-2199

$7.63

92055A

RING-O

92055-2200

$5.00

92122

ROLLER

92122-2057

$2.41

92140

BALL

92140-2061

$2.39

92145

SPRING

92145-2096

$3.69

92145A

SPRING

92145-2097

$3.69

92151

BOLT

92151-2167

$2.41

92151A

BOLT

92151-2168

$13.21

92171

CLAMP

92171-0476

$3.90

92192

TUBE,4.7X9.5X1000

92192-0937

$7.87

92210

NUT

92210-2084

$6.18

130

BOLT-FLANGED,8X30

130CA0830

$1.08
