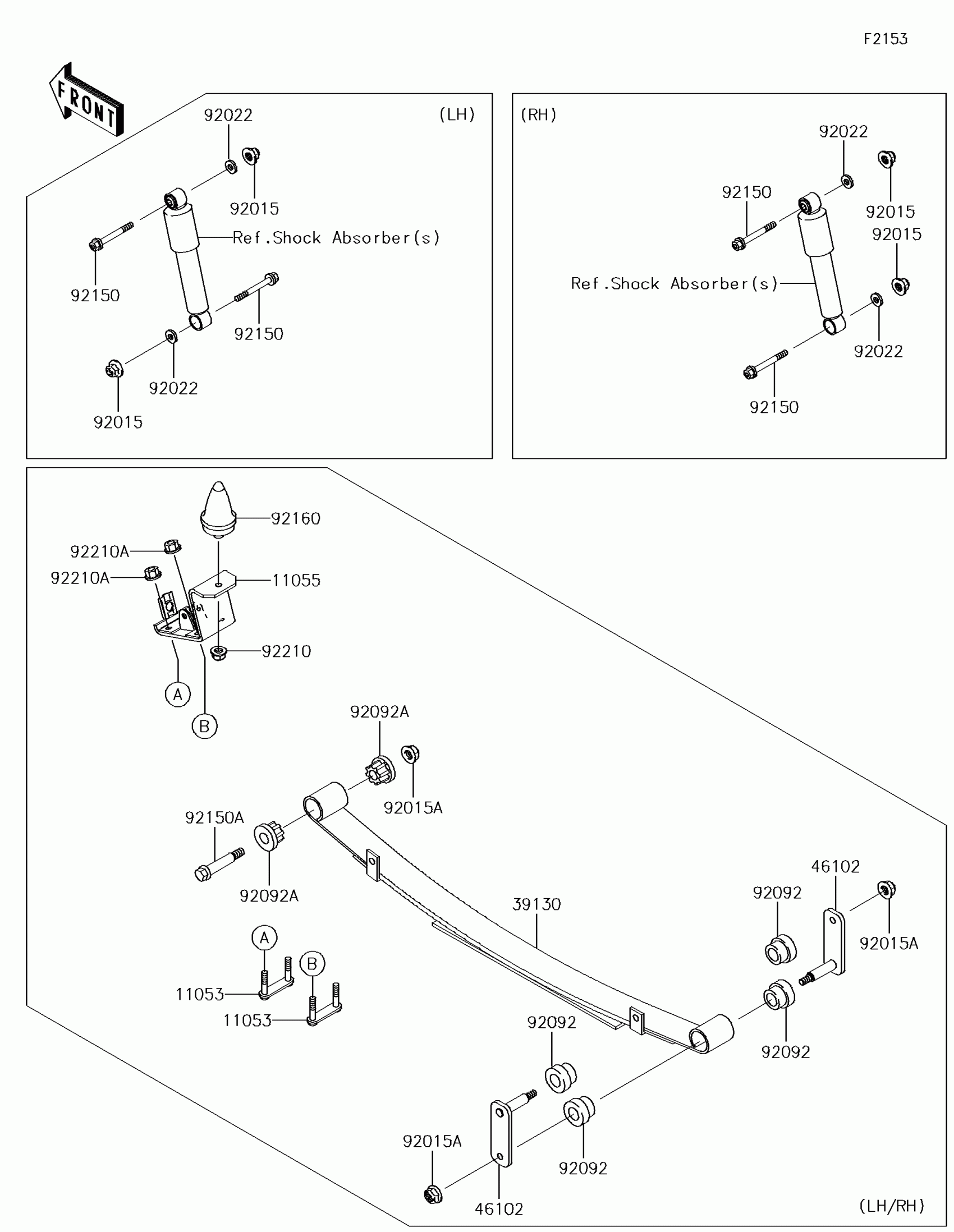

Kawasaki MULE™ 4010 4x4 SE Rear Suspension Diagram

Description

Price

11053

BRACKET,LEAF SPRING

11053-7564

$10.15

11055

BRACKET,LEAF SPRING

11055-7504

$19.88

39130

SPRING-LEAF

39130-1066

$366.86

46102

ROD,LEAF SPRING,RR

46102-1338

$41.53

92015

NUT,LOCK,10MM

92015-1597

$4.18

92015A

NUT

92015-1706

$5.69

92022

WASHER,11.5X20.5X1.6

92022-1768

$4.05

92092

BUSHING-RUBBER

92092-1083

$5.79

92092A

BUSHING-RUBBER

92092-1084

$23.29

92150

BOLT,FLANGED,10X57

92150-1227

$6.55

92150A

BOLT,12MM

92150-1284

$18.08

92160

DAMPER,BUMP STOPPER

92160-1136

$39.09

92210

NUT,LOCK,FLANGED,10MM

92210-0276

$1.85

92210A

NUT,LOCK,10MM

92210-1204

$3.29
