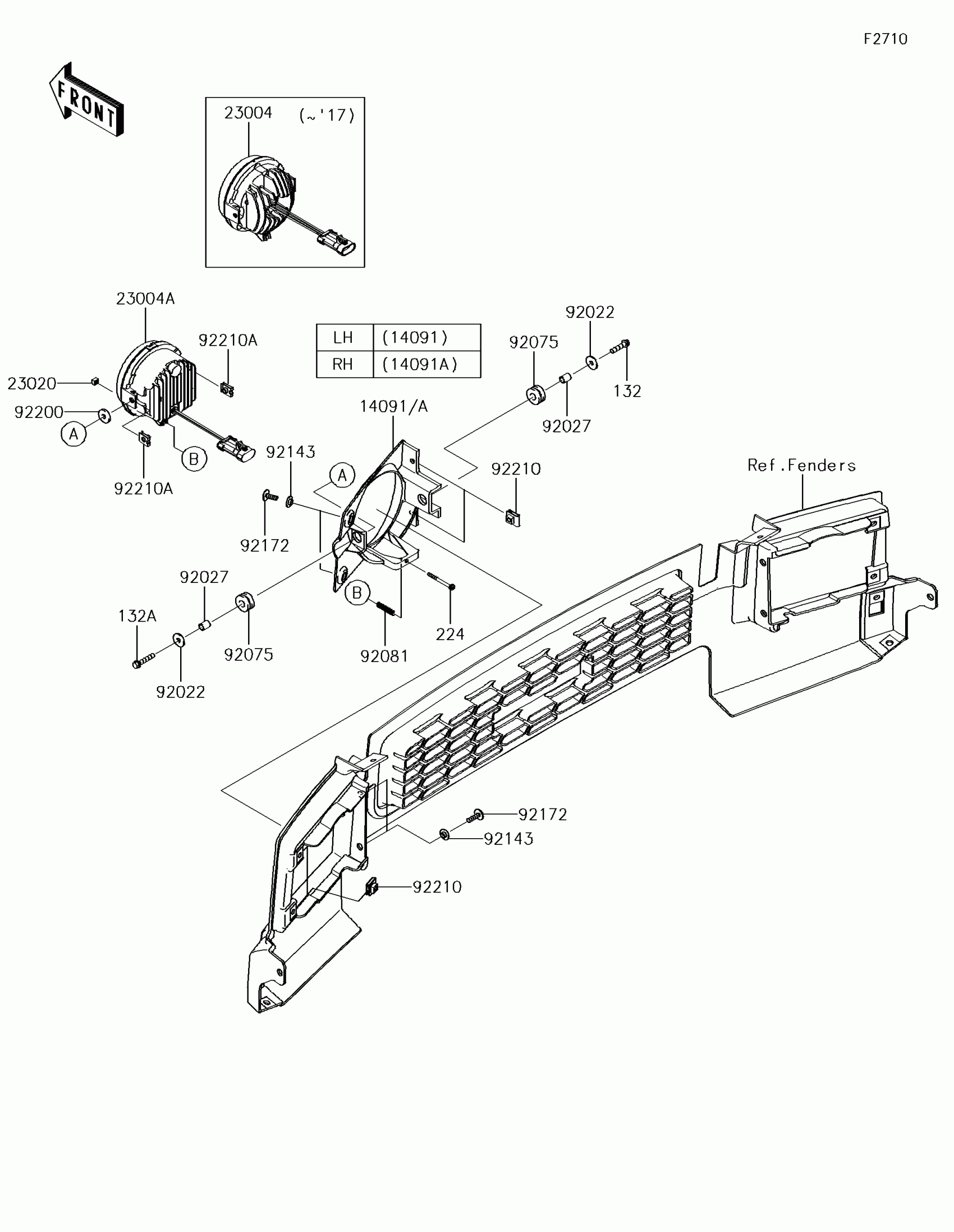

Kawasaki MULE™ 4010 4x4 SE Headlight(s) Diagram

Description

Price

14091

COVER,HEAD LAMP,LH

14091-0827

$14.15

14091A

COVER,HEAD LAMP,RH

14091-0828

$14.15

23004

LAMP-HEAD,LED

23004-0341

$209.78

23004A

LAMP-HEAD

23004-0372

$146.36

23020

NUT,4MM,FOCUS ADJUST

23020-018

$3.54

92022

WASHER,6.5X20X1.6

92022-125

$1.08

92027

COLLAR,6.8X10X12

92027-162

$4.93

92075

DAMPER,10X24X12

92075-1690

$3.81

92081

SPRING,FOCUS ADJUST

92081-1896

$3.99

92143

COLLAR

92143-1087

$2.98

92172

SCREW,TAPPING,6X20

92172-0488

$2.11

92200

WASHER,6.5X20X3.2

92200-0359

$1.57

92210

NUT,LEAF SPRING,6MM

92210-0624

$1.66

92210A

NUT

92210-1125

$3.63

132

BOLT-FLANGED-SMALL,6X25

132BA0625

$1.98

132A

BOLT-FLANGED-SMALL,6X30

132BA0630

$1.87

224

SCREW-PAN-WP-CROS,4X45

224AA0445

$1.33
