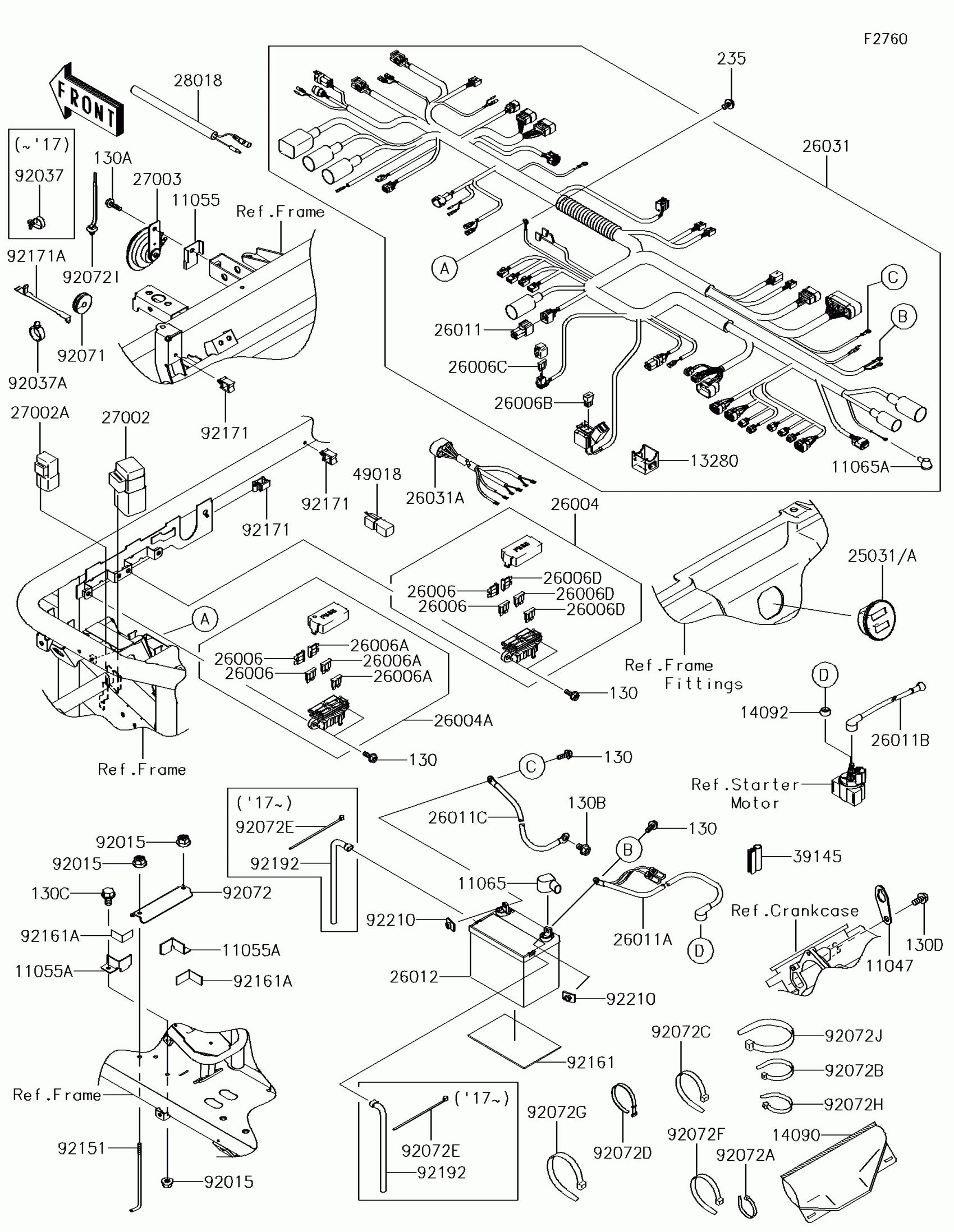

Kawasaki MULE™ 4010 4x4 SE Chassis Electrical Equipment Diagram

#

Description
Price

11047

BRACKET,F.BLACK

11047-2056-9H

$7.80

11055

BRACKET,HORN

11055-0167

$3.19

11055A

BRACKET

11055-0433

$3.31

11065

CAP,BATTERY TERMINAL

11065-0285

$4.08

11065A

CAP,NEUTRAL SW.

11065-0726

$5.80

13280

HOLDER

13280-7508

$2.58

14090

COVER,COUPLER

14090-1611

$8.31

14092

COVER,MAGNETIC SW.

14092-0851

$1.63

25031A

METER-ASSY

25031-0724

$105.97

26004

FUSE-ASSY

26004-0018

$39.01

26004A

FUSE-ASSY

26004-0019

$39.01

26006

FUSE,BLADE,30A,GREEN

26006-0004

$5.27

26006A

FUSE,BLADE,10A,RED

26006-0005

$4.55

26006B

FUSE,SLOW BLOW,BT,40A,GREEN

26006-0014

$4.61

26006C

FUSE,7.5A

26006-0015

$4.61

26006D

FUSE,BLADE,20A,YELLOW

26006-1051

$4.39

26011

WIRE-LEAD

26011-0037

$12.41

26011A

WIRE-LEAD,BATTERY(+)

26011-0813

$17.02

26011B

WIRE-LEAD,STARTER

26011-0814

$34.98

26011C

WIRE-LEAD,BATTERY(-)

26011-1787

$15.66

26012

BATTERY,12V 14AH

26012-0107

$115.35

26031

HARNESS,MAIN

26031-1535

$767.62

26031A

HARNESS

26031-2080

$104.85

27002

RELAY-ASSY

27002-1068

$61.26

27002A

RELAY-ASSY

27002-1088

$37.25

27003

HORN

27003-1330

$65.47

28018

RESISTOR

28018-0553

$30.12

39145

TRIM-SEAL

39145-0046

$5.24

49018

DIODE

49018-0005

$41.75

92015

NUT,FLANGED,8MM

92015-1406

$3.39

92037

CLAMP,SPEED,L=58

92037-1163

$4.93

92037A

CLAMP,HOSE

92037-1827

$5.69

92071

GROMMET

92071-1136

$7.29

92072

BAND

92072-0112

$11.29

92072A

BAND,L=123

92072-030

$3.81

92072B

BAND,L=149

92072-031

$3.81

92072C

BAND,L=218

92072-032

$3.81

92072D

BAND,L=186

92072-056

$3.81

92072E

BAND,92X2.4

92072-0791

$0.47

92072F

BAND,L=202

92072-1195

$1.16

92072G

BAND,L=250

92072-1237

$1.55

92072H

BAND,L=188

92072-1239

$1.30

92072I

BAND,OS170-FT7(BLACK)

92072-1414

$2.84

92072J

BAND,L=368.3

92072-3872

$1.20

92151

BOLT,BATTERY

92151-1897

$5.02

92161

DAMPER

92161-0578

$3.80

92161A

DAMPER

92161-0580

$2.00

92171

CLAMP

92171-0290

$3.29

92171A

CLAMP

92171-1365

$3.76

92192

TUBE,BREATHER,7X10X210,WHT MK

92192-1680

$3.41

92210

NUT,PLATE,6MM

92210-1352

$1.73

130

BOLT-FLANGED,6X16

130BA0616

$0.97

130A

BOLT-FLANGED,6X20

130BA0620

$1.28

130B

BOLT-FLANGED,8X12

130BA0812

$0.79

130C

BOLT-FLANGED,8X14

130BA0814

$1.54

130D

BOLT-FLANGED,8X16

130BA0816

$0.89

235

SCREW-PAN-WP-CROS,6X10

235AA0610

$3.49
