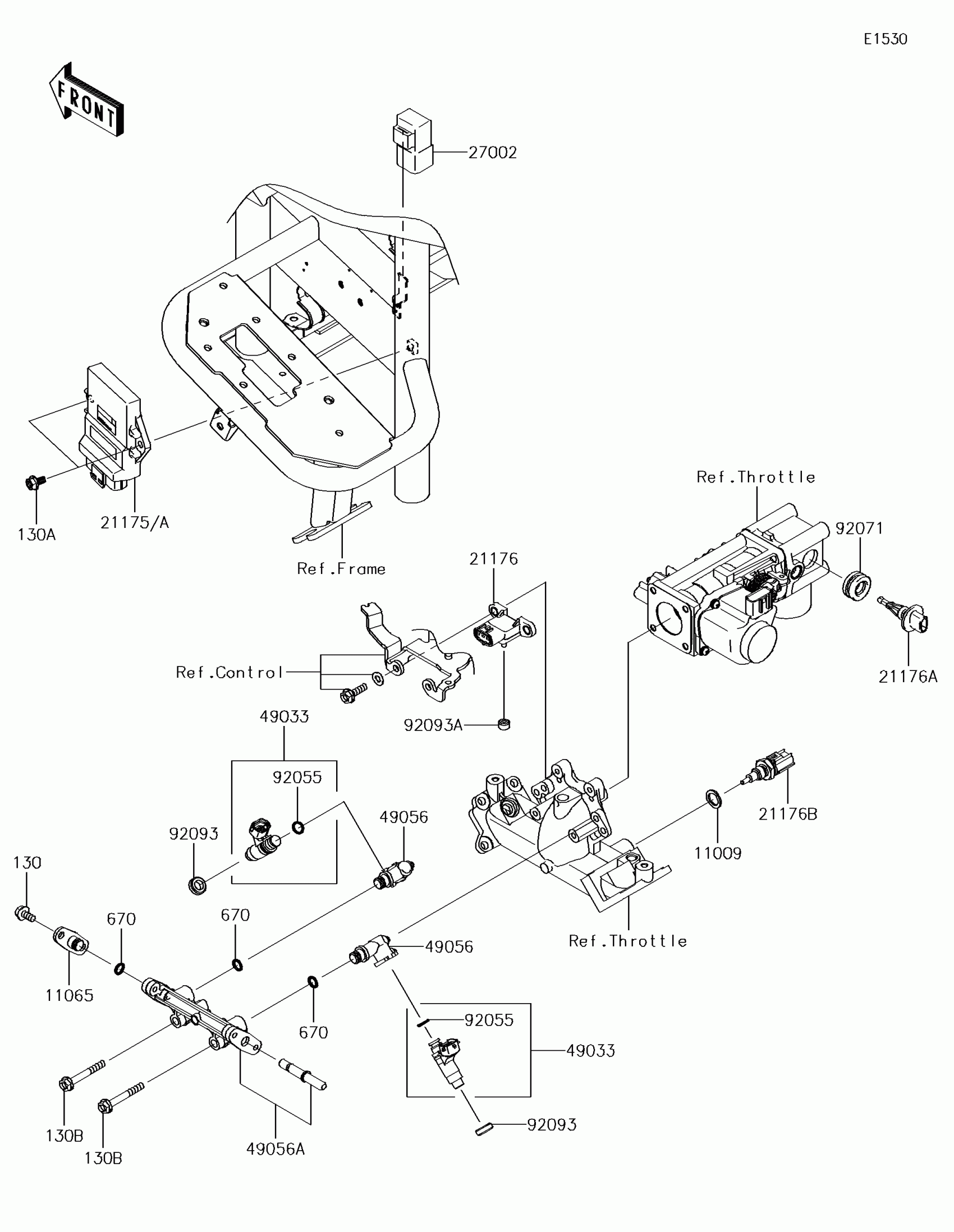

Kawasaki MULE™ 4010 4x4 SE Fuel Injection Diagram

Description

Price

11009

GASKET,12.5X18X1.5

11009-1376

$1.35

11065

CAP

11065-2129

$15.63

21175

CONTROL UNIT-ELECTRONIC,F.I.

21175-0332

$823.07

21175A

CONTROL UNIT-ELECTRONIC,F.I.

21175-1355

$823.07

21176

SENSOR,PRESSURE

21176-1095

$133.04

21176A

SENSOR,AIR TEMP

21176-2106

$19.69

21176B

SENSOR

21176-2111

$35.32

27002

RELAY-ASSY

27002-1088

$37.25

49033

NOZZLE-INJECTION

49033-2060

$134.27

49056

PIPE-INJECTION

49056-2062

$19.81

49056A

PIPE-INJECTION

49056-6003

$113.74

92055

RING-O,INJECTION NOZZLE

92055-1622

$1.42

92071

GROMMET

92071-2140

$3.28

92093

SEAL

92093-2119

$1.74

92093A

SEAL

92093-2127

$1.20

130

BOLT-FLANGED,6X12

130BA0612

$1.25

130A

BOLT-FLANGED,6X16

130BB0616

$1.49

130B

BOLT-FLANGED,6X45

130CA0645

$1.11

670

O RING,8MM

670E1508

$1.32
