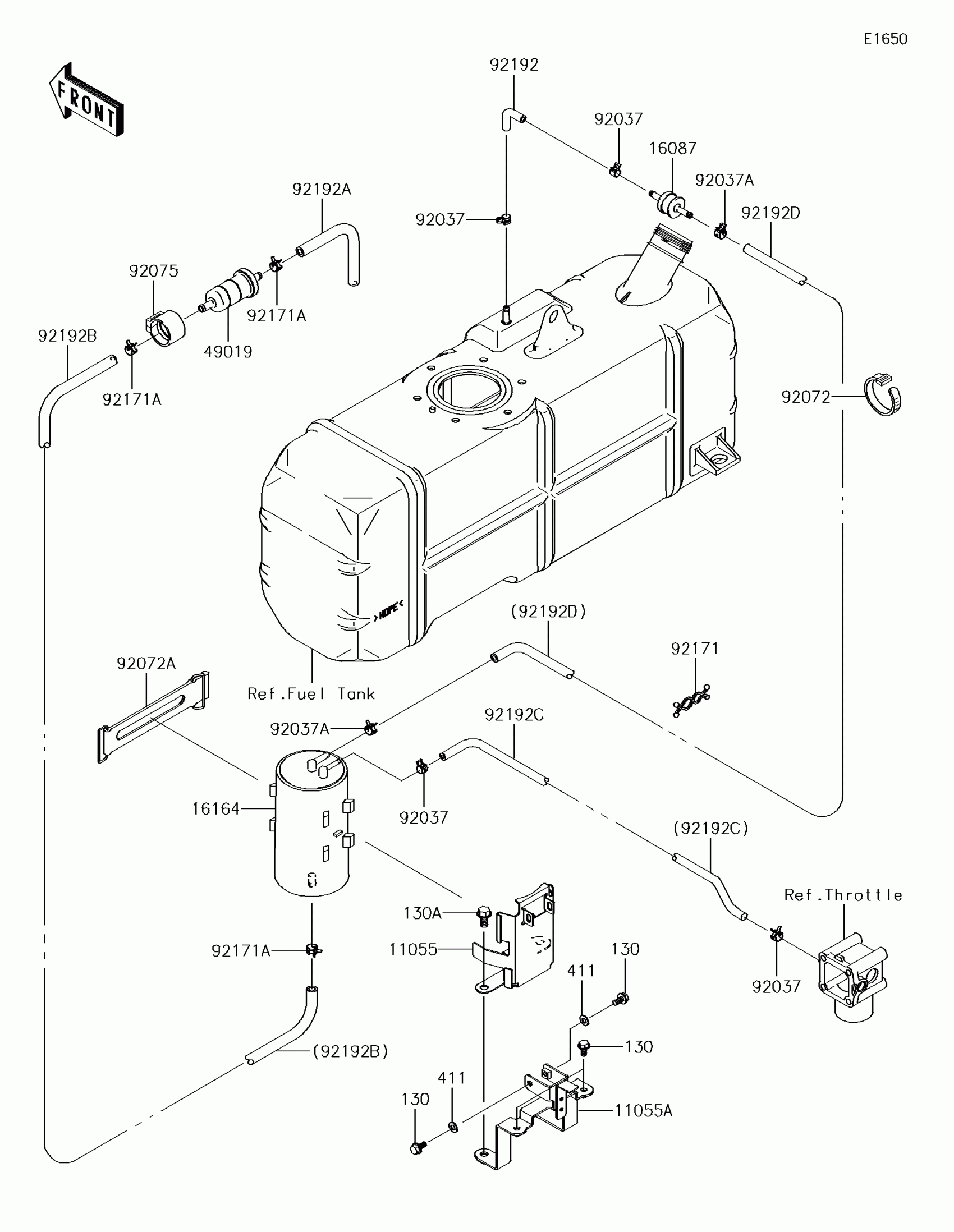

Kawasaki MULE™ 4010 4x4 SE Fuel Evaporative System Diagram

Description

Price

11055

BRACKET,UPP

11055-0263

$23.24

11055A

BRACKET,LWR

11055-0407

$17.44

16087

VALVE-CHECK

16087-0703

$33.58

16164

CANISTER

16164-0013

$184.89

49019

FILTER-FUEL

49019-1055

$18.12

92037

CLAMP,TUBE

92037-1461

$2.93

92037A

CLAMP,TUBE

92037-1505

$3.63

92072

BAND,L=186

92072-056

$3.81

92072A

BAND,L=168

92072-1306

$10.44

92075

DAMPER,FUEL FILTER

92075-1853

$9.39

92171

CLAMP

92171-0476

$3.51

92171A

CLAMP

92171-0515

$5.56

92192

TUBE,FUEL TANK-CHECK VALVE

92192-0067

$2.95

92192A

TUBE,FILTER-AIR

92192-0609

$5.32

92192B

TUBE,CANISTER-FUEL FILTER

92192-0713

$7.59

92192C

TUBE,4.5X9.5X460

92192-0909

$12.10

92192D

TUBE

92192-1161

$4.63

130

BOLT-FLANGED,6X12

130BA0612

$1.25

130A

BOLT-FLANGED,8X16

130BA0816

$0.89

411

WASHER-PLAIN,6MM

411AA0600

$2.06
