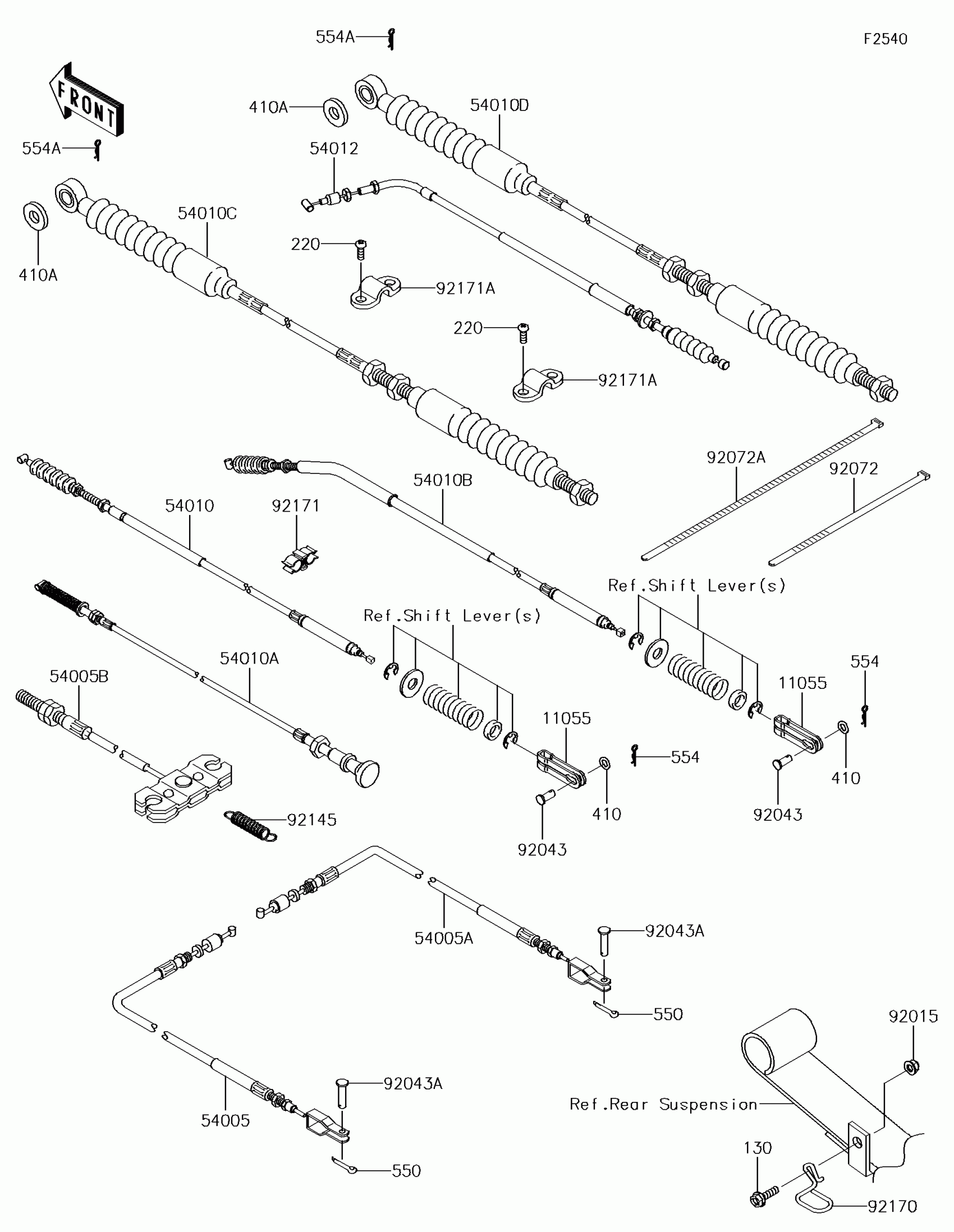

Kawasaki MULE™ 4010 4x4 SE Cables Diagram
#
Description
Price
11055
BRACKET,DIFF LOCK
11055-7505
$9.28
54005
CABLE-BRAKE,PARKING,RR,LH
54005-0306
$33.85
54005A
CABLE-BRAKE,PARKING,RR,RH
54005-0307
$40.04
54005B
CABLE-BRAKE,PARKING,FR
54005-1198
$10.30
54010
CABLE,2-4WD
54010-0044
$47.99
54010A
CABLE,HOOD
54010-0600
$30.05
54010B
CABLE,DIFF LOCK
54010-1120
$80.75
54010C
CABLE,SHIFT CONTROL
54010-1121
$148.62
54010D
CABLE,HI-LOW
54010-1124
$109.91
54012
CABLE-THROTTLE
54012-0251
$37.70
92015
NUT,LOCK,FLANGED,6MM
92015-1675
$4.31
92043
PIN,6X11
92043-092
$4.69
92043A
PIN
92043-1039
$9.91
92072
BAND,L=188
92072-1239
$1.73
92072A
BAND,L=368.3
92072-3872
$1.59
92145
SPRING
92145-7506
$9.34
92170
CLAMP,CABLE
92170-1372
$9.73
92171
CLAMP
92171-0129
$4.18
92171A
CLAMP
92171-1203
$2.58
130
BOLT-FLANGED,6X20
130AA0620
$1.74
220
SCREW-PAN-CROS,5X14
220AA0514
$4.43
410
WASHER-PLAIN-SMALL
410AA0600
$1.31
410A
WASHER-PLAIN-SMALL,8MM
410AA0800
$0.96
550
PIN-COTTER,2.0X22
550AA2022
$2.51
554
PIN-SNAP,1.2X21.2
554DA0600
$0.95
554A
PIN-SNAP
554DA0800
$1.36
