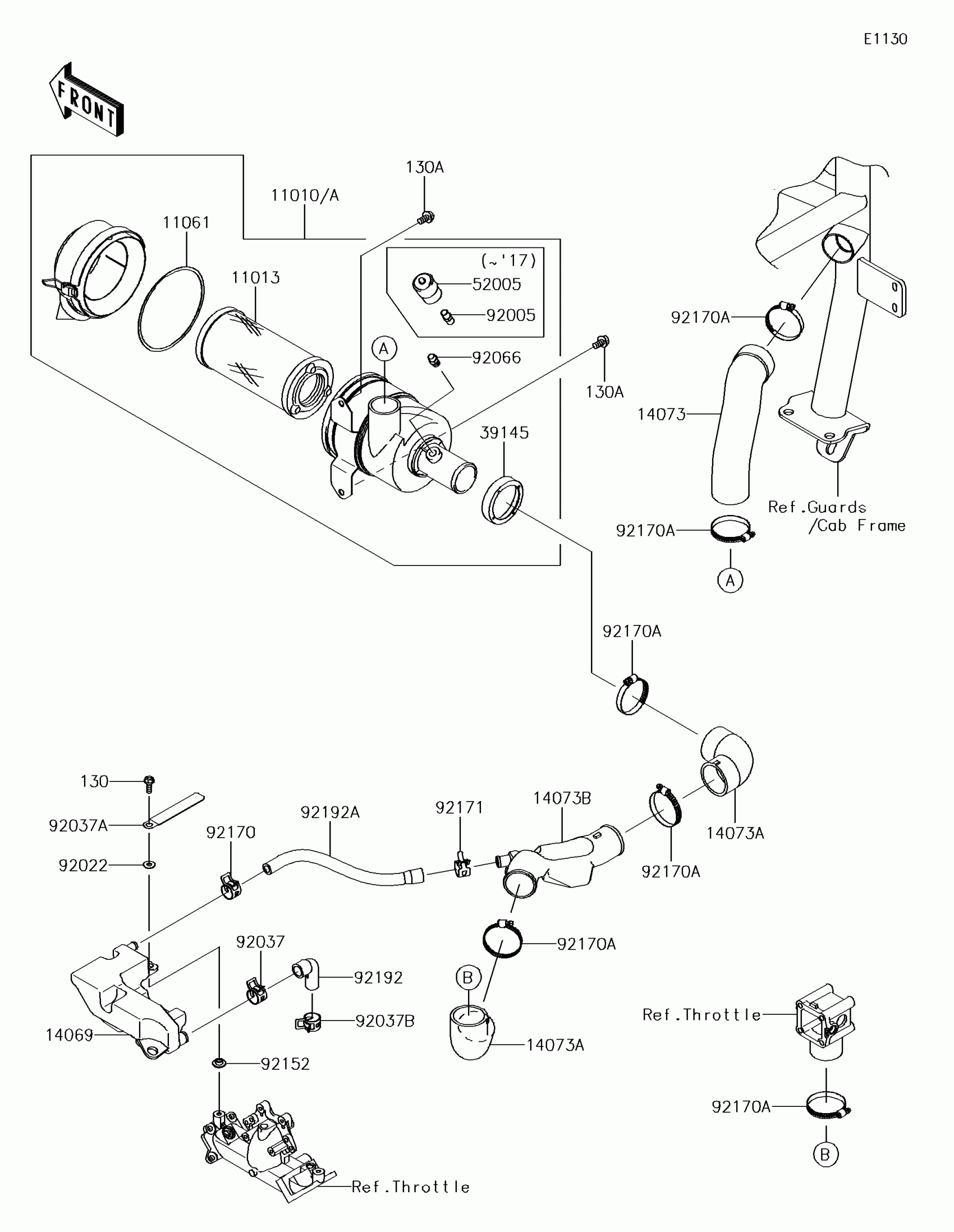

Kawasaki MULE™ 4010 4x4 SE Air Cleaner Diagram

Description

Price

11010

FILTER-ASSY-AIR

11010-0177

$139.89

11010A

FILTER-ASSY-AIR

11010-0885

$93.72

11013

ELEMENT-AIR FILTER

11013-1290

$28.98

11061

GASKET,AIR FILTER

11061-1078

$17.32

14069

BREATHER

14069-0018

$23.30

14073

DUCT,RR BAR-A/C

14073-0236

$18.50

14073A

DUCT

14073-0773

$11.20

14073B

DUCT

14073-0784

$19.86

39145

TRIM-SEAL

39145-1133

$7.68

52005

GAUGE,AIR

52005-7502

$44.88

92005

FITTING,AIR FILTER

92005-1386

$1.75

92022

WASHER,6.5X16X1.0

92022-1093

$2.08

92037

CLAMP,HOSE CLIP

92037-1460

$10.81

92037A

CLAMP,HARNESS,L=100

92037-1636

$7.68

92037B

CLAMP

92037-1678

$10.16

92066

PLUG

92066-0914

$4.55

92152

COLLAR

92152-2069

$5.69

92170

CLAMP

92170-1491

$7.45

92170A

CLAMP

92170-1674

$11.76

92171

CLAMP,18.8MM

92171-2056

$1.46

92192

TUBE,CRANKCASE-BREATHER

92192-1285

$2.60

92192A

TUBE,BREATHER-INTAKE DUCT

92192-1855

$8.66

130

BOLT-FLANGED,6X18

130BA0618

$1.54

130A

BOLT-FLANGED,8X14

130BB0814

$4.12
