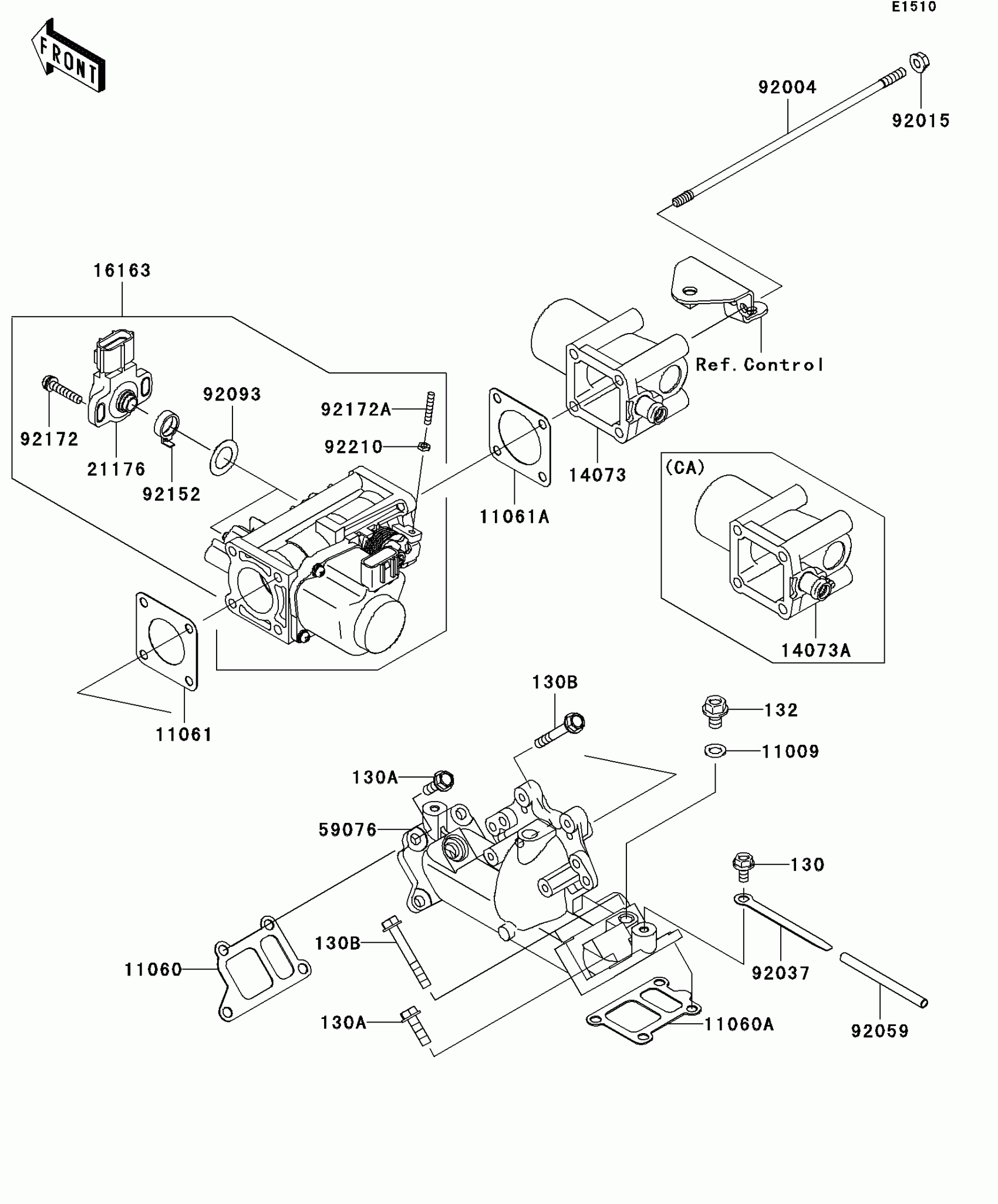

Kawasaki Mule 4010 4x4 Hardwoods Green HD Throttle Diagram

Description

Price

11009

GASKET,8.2X14X1.0

11009-1344

$3.17

11060

GASKET,INTAKE MANIFOLD

11060-2087

$3.36

11060A

GASKET,INTAKE MANIFOLD

11060-2088

$2.83

11061

GASKET

11061-2179

$3.43

11061A

GASKET

11061-2180

$3.43

16163

THROTTLE-ASSY

16163-2072

Unavailable

21176

SENSOR

21176-2112

$162.42

59076

MANIFOLD-INTAKE

59076-2092

$275.87

92004

STUD,6X200

92004-2161

$6.84

92015

NUT,FLANGED,6MM

92015-1367

$3.69

92037

CLAMP

92037-2006

$1.07

92059

TUBE,5X6X75

92059-2011

$0.81

92093

SEAL

92093-2133

$8.33

92152

COLLAR

92152-2093

$6.60

92172

SCREW

92172-0254

$2.97

92172A

SCREW

92172-2106

$4.73

92210

NUT

92210-2120

$1.61

130

BOLT-FLANGED,6X12

130AA0612

$0.68

130A

BOLT-FLANGED,6X20

130AA0620

$1.74

130B

BOLT-FLANGED,6X45

130AA0645

$0.88

132

BOLT-FLANGED-SMALL,8X12

132BB0812

$1.81
