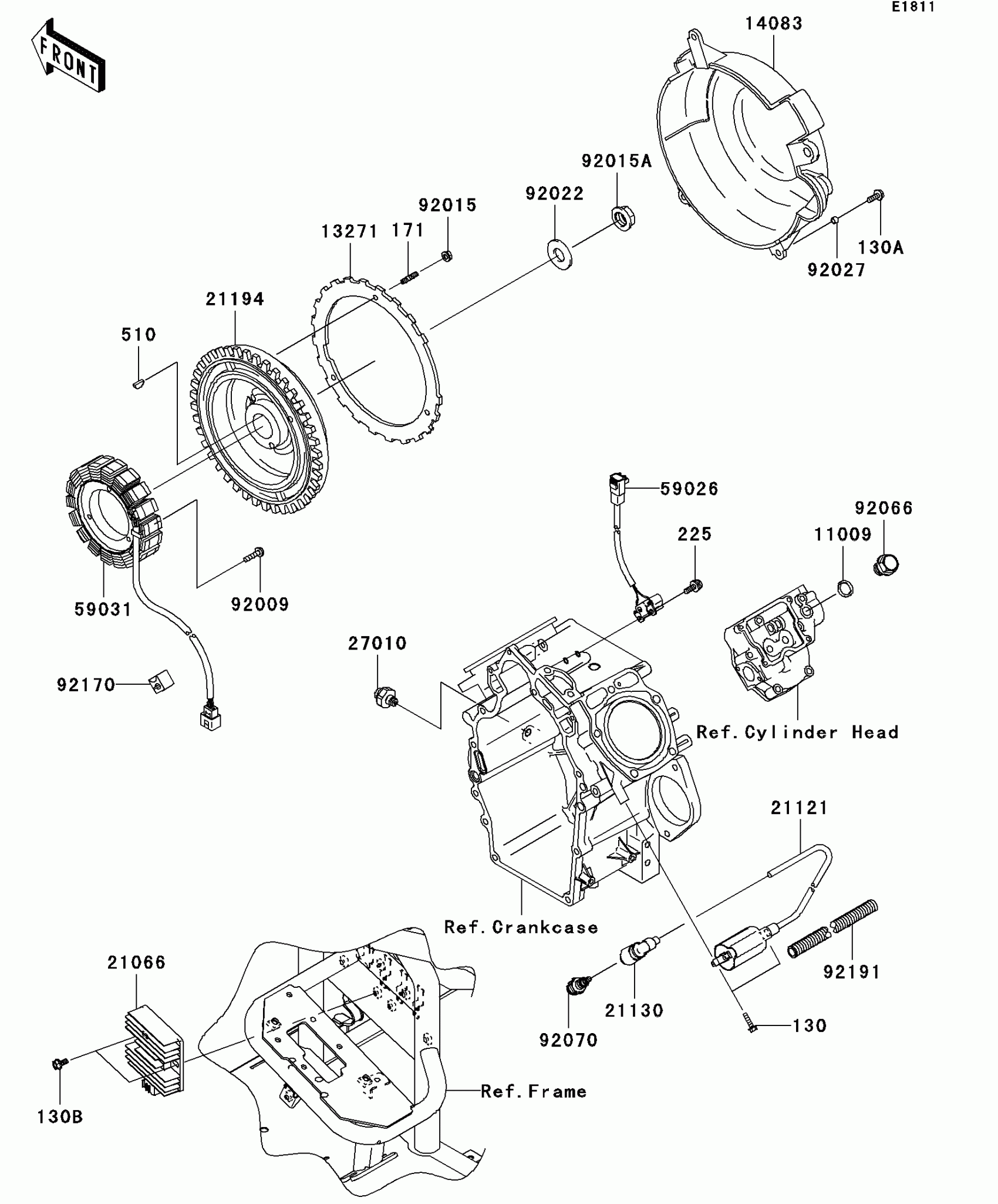

Kawasaki Mule 4010 4x4 Hardwoods Green HD Generator/Ignition Coil Diagram

Description

Price

11009

GASKET

11009-2766

$1.20

13271

PLATE

13271-2269

$47.98

14083

COVER-FLYWHEEL

14083-2052

Unavailable

21066

REGULATOR-VOLTAGE

21066-0037

Unavailable

21121

COIL-IGNITION

21121-2092

$79.17

21130

CAP-SPARK PLUG

21130-2060

$8.07

21194

FLYWHEEL-COMP

21194-2352

$395.21

27010

SWITCH,OIL PRESSURE

27010-1313

$35.72

59026

COIL-PULSING

59026-2065

Unavailable

59031

COIL-CHARGING

59031-2136

$240.96

92009

SCREW,6X25

92009-2273

$0.79

92015

NUT,FLANGED,6MM

92015-1367

$2.53

92015A

NUT

92015-2167

$5.56

92022

WASHER

92022-2229

$2.42

92027

COLLAR,6.2X7.8X5

92027-2096

$0.48

92066

PLUG,DRAIN

92066-2099

$4.97

92070

PLUG-SPARK,BPR2ES(NGK),SOLID

92070-2110

$3.14

92170

CLAMP

92170-2056

$2.42

92191

TUBE

92191-2124

$3.51

130

BOLT-FLANGED,5X20

130AA0520

$0.66

130A

BOLT-FLANGED,6X16

130AA0616

$0.51

130B

BOLT-FLANGED,6X14

130BB0614

$1.77

171

BOLT-STUD,6X18

171BA0618

$2.03

225

SCREW-PAN-WSP-CROS,4X14

225AA0414

$0.63

510

WOODRUFF KEY

510A5100

$1.87
