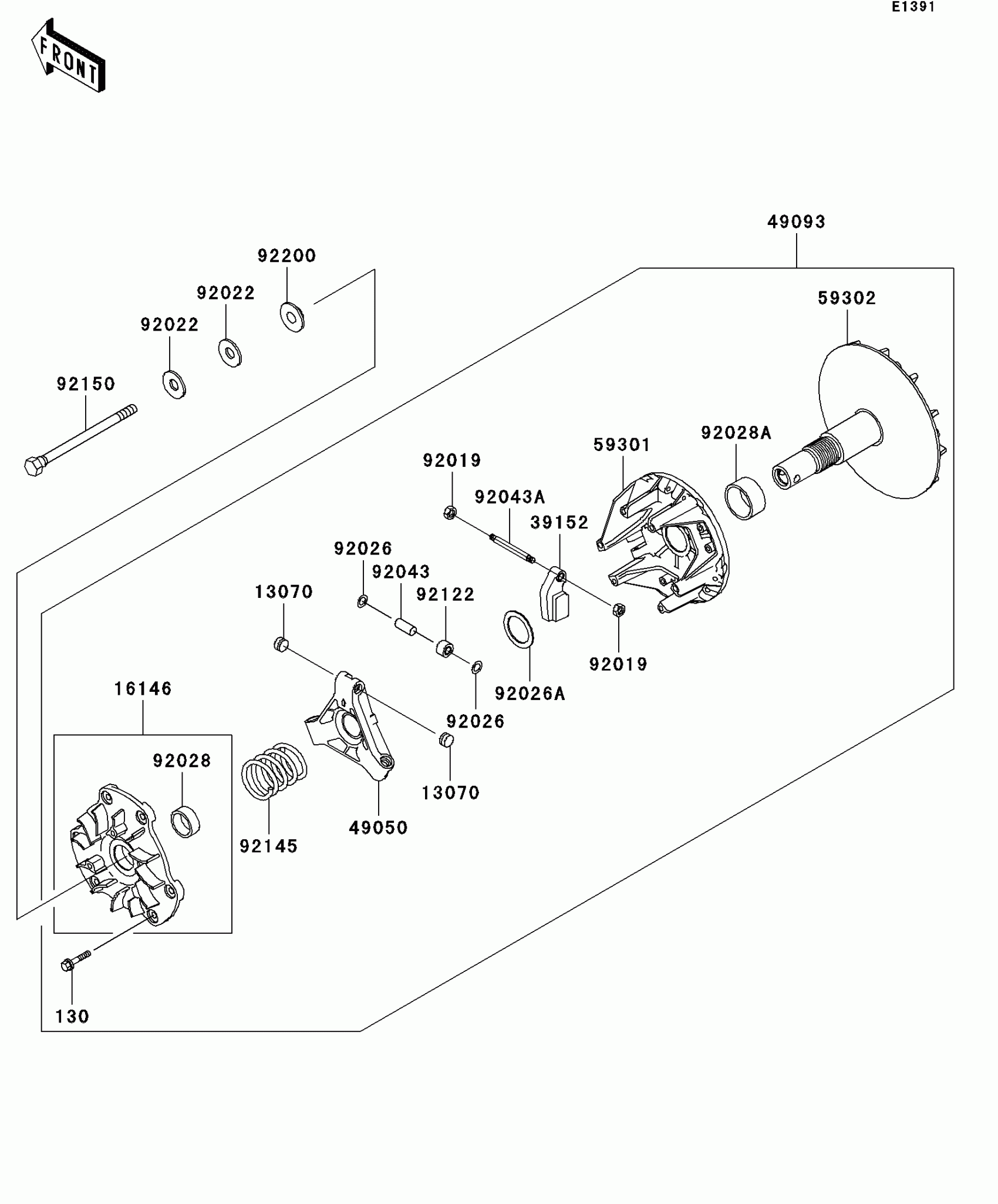

Kawasaki Mule 4010 4x4 Hardwoods Green HD Drive Converter Diagram

#

Description
Price

13070

GUIDE

13070-1330

$22.35

16146

COVER-ASSY

16146-1219

$146.10

39152

WEIGHT-RAMP

39152-1078

$42.16

49050

SPIDER

49050-0013

Unavailable

49093

CONVERTER-ASSY-DRIVE

49093-0023

Unavailable

59301

SHEAVE-MOVABLE

59301-1060

Unavailable

59302

SHEAVE-COMP

59302-1085

$325.75

92019

NUT,LOCK,6MM

92019-008

$3.12

92022

WASHER,SPECIAL CONICAL

92022-1901

$4.93

92026

SPACER

92026-1512

$1.20

92026A

SPACER,32.3X44.3X3.6

92026-1591

$10.26

92028

BUSHING

92028-1861

$5.54

92028A

BUSHING

92028-1864

$6.78

92043

PIN

92043-1572

$3.01

92043A

PIN

92043-1573

$9.91

92122

ROLLER

92122-1204

$18.85

92145

SPRING,YELLOW PAINT

92145-0639

$26.71

92150

BOLT,12X163.5

92150-1008

$22.27

92200

WASHER

92200-1401

$12.62

130

BOLT-FLANGED,6X30

130CA0630

$1.77
