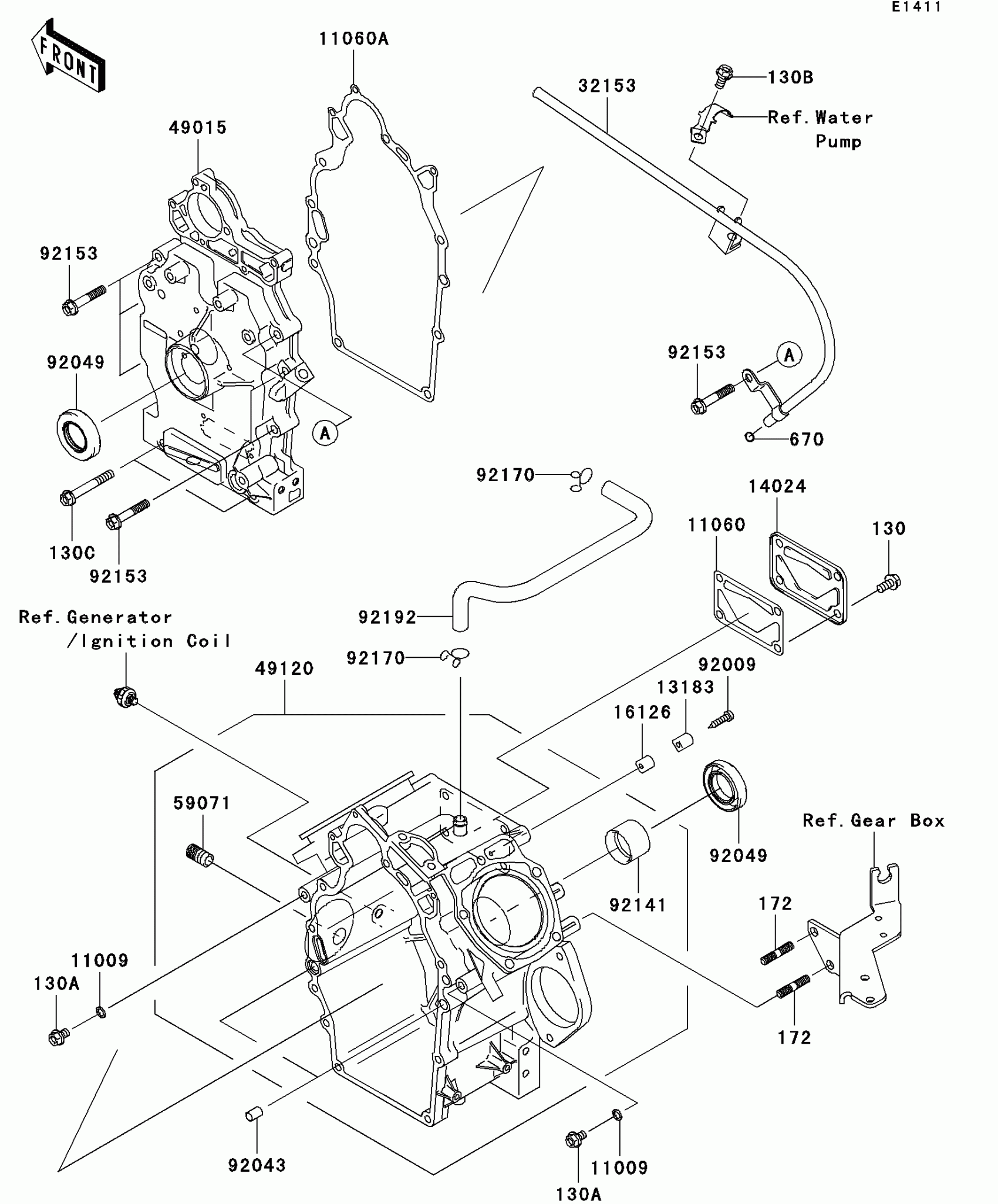

Kawasaki Mule 4010 4x4 Hardwoods Green HD Crankcase Diagram

Description

Price

11009

GASKET

11009-3028

$0.70

11060

GASKET,BREATHER,COVER

11060-2089

$3.75

11060A

GASKET,CRANKCASE COVER

11060-2449

$19.96

13183

PLATE

13183-2120

$0.43

14024

COVER

14024-2292

$4.15

16126

VALVE

16126-2146

$0.62

32153

PIPE,F.BLACK

32153-2080-9H

$38.24

49015

COVER-CRANKCASE

49015-6282

Unavailable

49120

CRANKCASE-COMP

49120-6175

Unavailable

59071

JOINT

59071-2079

$6.36

92009

SCREW

92009-2308

$0.43

92043

PIN,DOWEL,10X14

92043-1037

$0.74

92049

SEAL-OIL

92049-2110

Unavailable

92141

BEARING-PLANE

92141-2110

Unavailable

92153

BOLT,FLANGED,8X45

92153-2130

$1.77

92170

CLAMP

92170-2002

$0.81

92192

TUBE,BRETHER

92192-2140

$8.09

130

BOLT-FLANGED,8X16

130AA0816

$0.85

130A

BOLT-FLANGED,8X12

130AB0812

$0.73

130B

BOLT-FLANGED,8X16

130BA0816

$1.12

130C

BOLT-FLANGED,8X60

130CA0860

$1.77

172

BOLT-STUD,8X25

172BA0825

$3.70

670

O RING,10MM

670B2010

$1.50
