Description

Price

11047

BRACKET,F.BLACK

11047-2056-9H

$8.44

11055

BRACKET,HORN

11055-0167

$3.62

11065

CAP,BATTERY TERMINAL

11065-0285

$4.60

13280

HOLDER

13280-7508

$3.21

14090

COVER,COUPLER

14090-1611

$8.51

25031

METER-ASSY,AC,AF400/620&RF750

25031-7506

Unavailable

26004

FUSE-ASSY

26004-0018

$43.96

26004A

FUSE-ASSY

26004-0019

$43.96

26006

FUSE,BLADE,30A,GREEN

26006-0004

$6.02

26006A

FUSE,BLADE,10A,RED

26006-0005

$6.02

26006B

FUSE,SLOW BLOW,BT,40A,GREEN

26006-0014

$5.24

26006C

FUSE,7.5A

26006-0015

$5.24

26006D

FUSE,BLADE,20A,YELLOW

26006-1051

$4.96

26011

WIRE-LEAD

26011-0037

$13.02

26011A

WIRE-LEAD,BATTERY(+)

26011-0224

$33.91

26011B

WIRE-LEAD,BATTERY(-)

26011-1787

$16.65

26012

BATTERY,12V 14AH

26012-0107

Unavailable

26031

HARNESS,MAIN

26031-0642

Unavailable

26031A

HARNESS

26031-2080

$102.85

27002

RELAY-ASSY

27002-1068

$68.42

27003

HORN

27003-1330

$64.25

92037

CLAMP,SPEED,L=58

92037-1163

$6.57

92037A

CLAMP,HARNESS,L=100

92037-1636

$7.68

92037B

CLAMP,HOSE

92037-1827

$7.45

92071

GROMMET

92071-1136

$7.38

92072

BAND,L=123

92072-030

$5.00

92072A

BAND,L=149

92072-031

$5.00

92072B

BAND,L=218

92072-032

$5.00

92072C

BAND,L=186

92072-056

$5.00

92072D

BAND,L=202

92072-1195

$1.56

92072E

BAND,L=250

92072-1237

$2.14

92072F

BAND,L=188

92072-1239

$1.73

92072G

BAND,L=368.3

92072-3872

$1.59

92171

CLAMP

92171-0290

$3.73

92171A

CLAMP

92171-1365

$4.20

92210

NUT,PLATE,6MM

92210-1352

$2.41

130

BOLT-FLANGED,6X16

130BA0616

$1.20

130A

BOLT-FLANGED,8X16

130BA0816

$1.12

130B

BOLT-FLANGED,6X10

130BB0610

$2.49

130C

BOLT-FLANGED,6X16

130BB0616

$2.06

130D

BOLT-FLANGED,6X20

130BB0620

$0.46

130E

BOLT-FLANGED,8X12

130BB0812

$0.68

235

SCREW-PAN-WP-CROS,6X10

235AA0610

$3.86

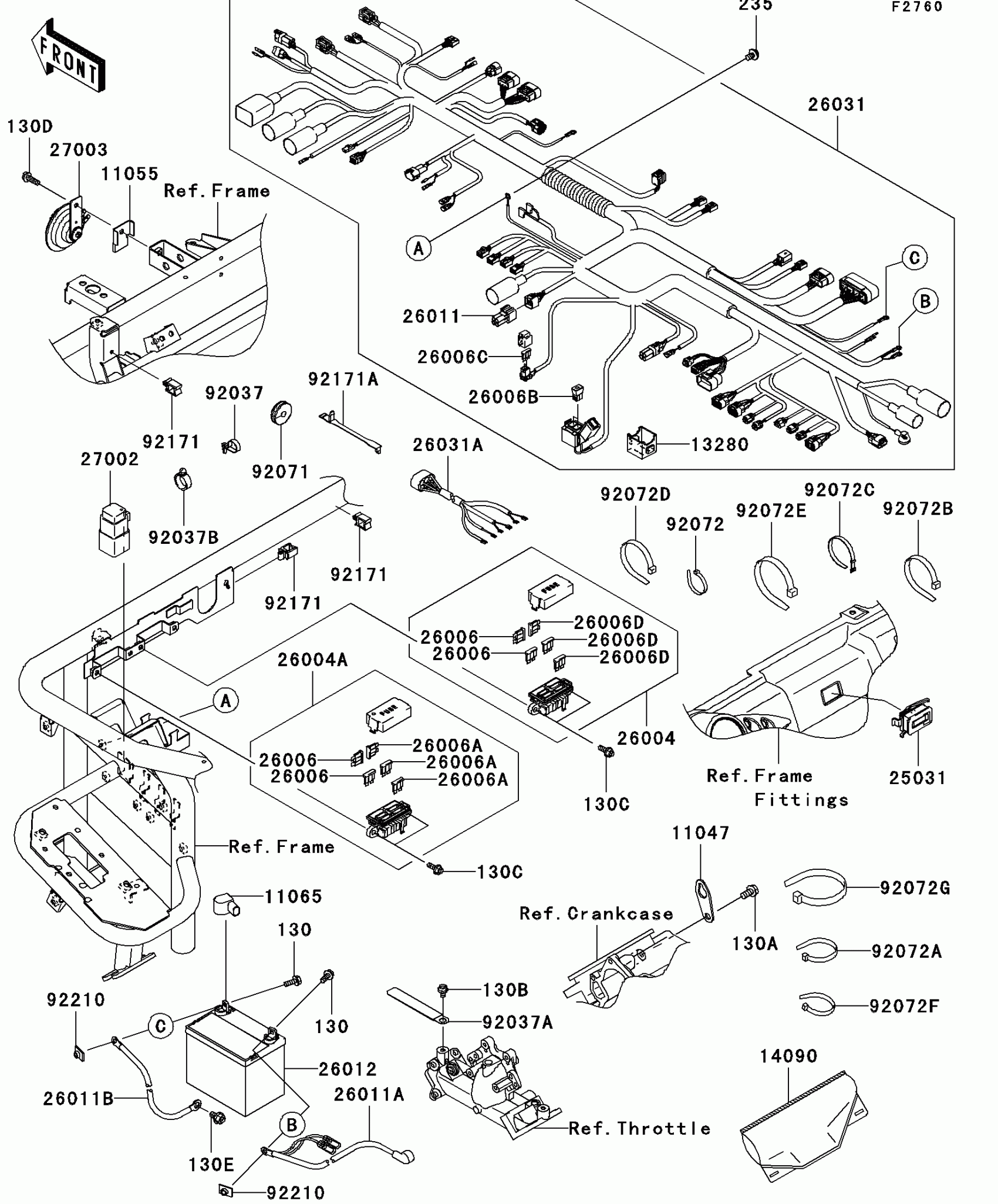

Kawasaki Mule 4010 4x4 Hardwoods Green HD Chassis Electrical Equipment Diagram

BRACKET,F.BLACK

BRACKET,HORN

CAP,BATTERY TERMINAL

HOLDER

COVER,COUPLER

METER-ASSY,AC,AF400/620&RF750

FUSE-ASSY

FUSE-ASSY

FUSE,BLADE,30A,GREEN

FUSE,BLADE,10A,RED

FUSE,SLOW BLOW,BT,40A,GREEN

FUSE,7.5A

FUSE,BLADE,20A,YELLOW

WIRE-LEAD

WIRE-LEAD,BATTERY(+)

WIRE-LEAD,BATTERY(-)

BATTERY,12V 14AH

HARNESS,MAIN

HARNESS

RELAY-ASSY

HORN

CLAMP,SPEED,L=58

CLAMP,HARNESS,L=100

CLAMP,HOSE

GROMMET

BAND,L=123

BAND,L=149

BAND,L=218

BAND,L=186

BAND,L=202

BAND,L=250

BAND,L=188

BAND,L=368.3

CLAMP

CLAMP

NUT,PLATE,6MM

BOLT-FLANGED,6X16

BOLT-FLANGED,8X16

BOLT-FLANGED,6X10

BOLT-FLANGED,6X16

BOLT-FLANGED,6X20

BOLT-FLANGED,8X12

SCREW-PAN-WP-CROS,6X10
