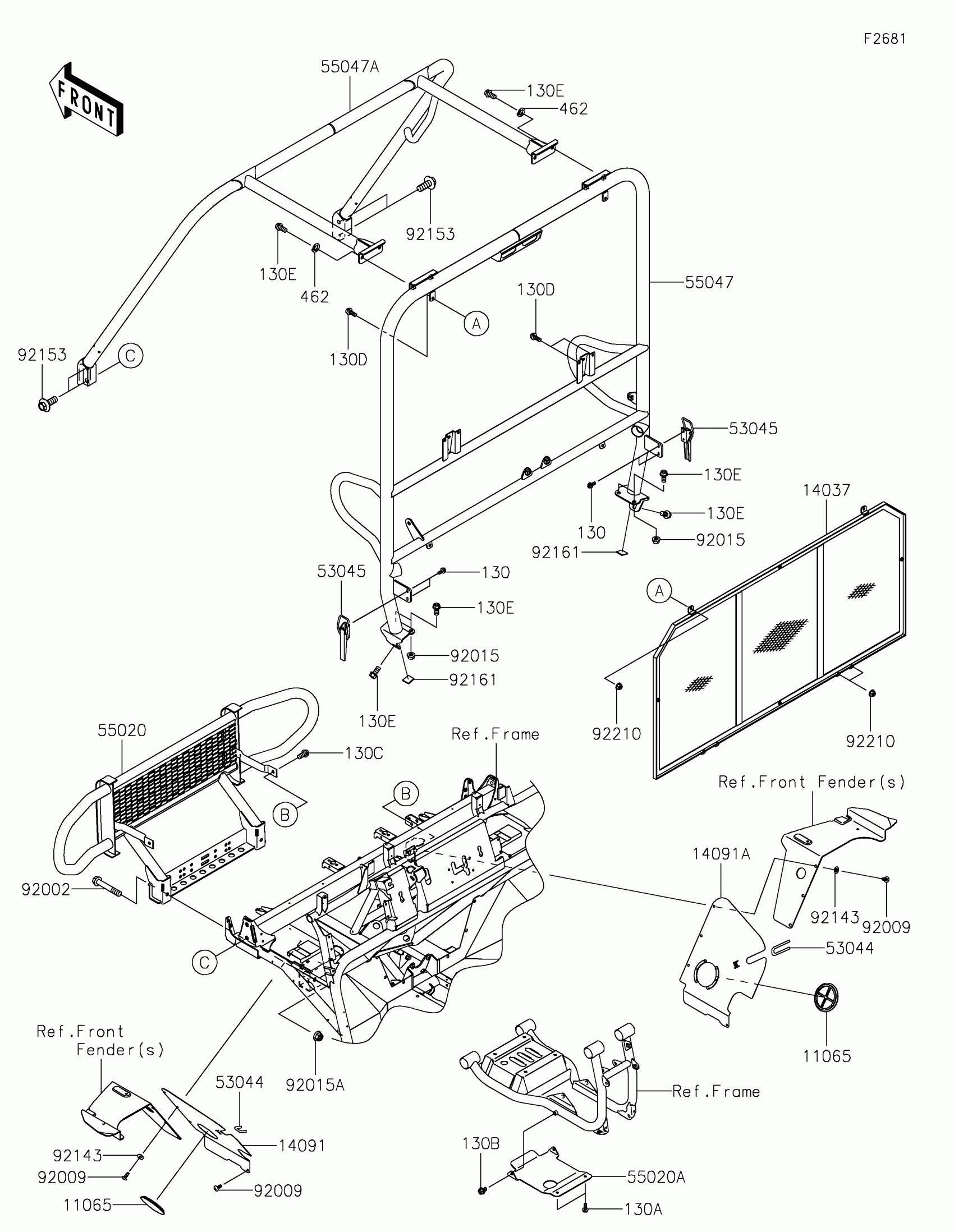

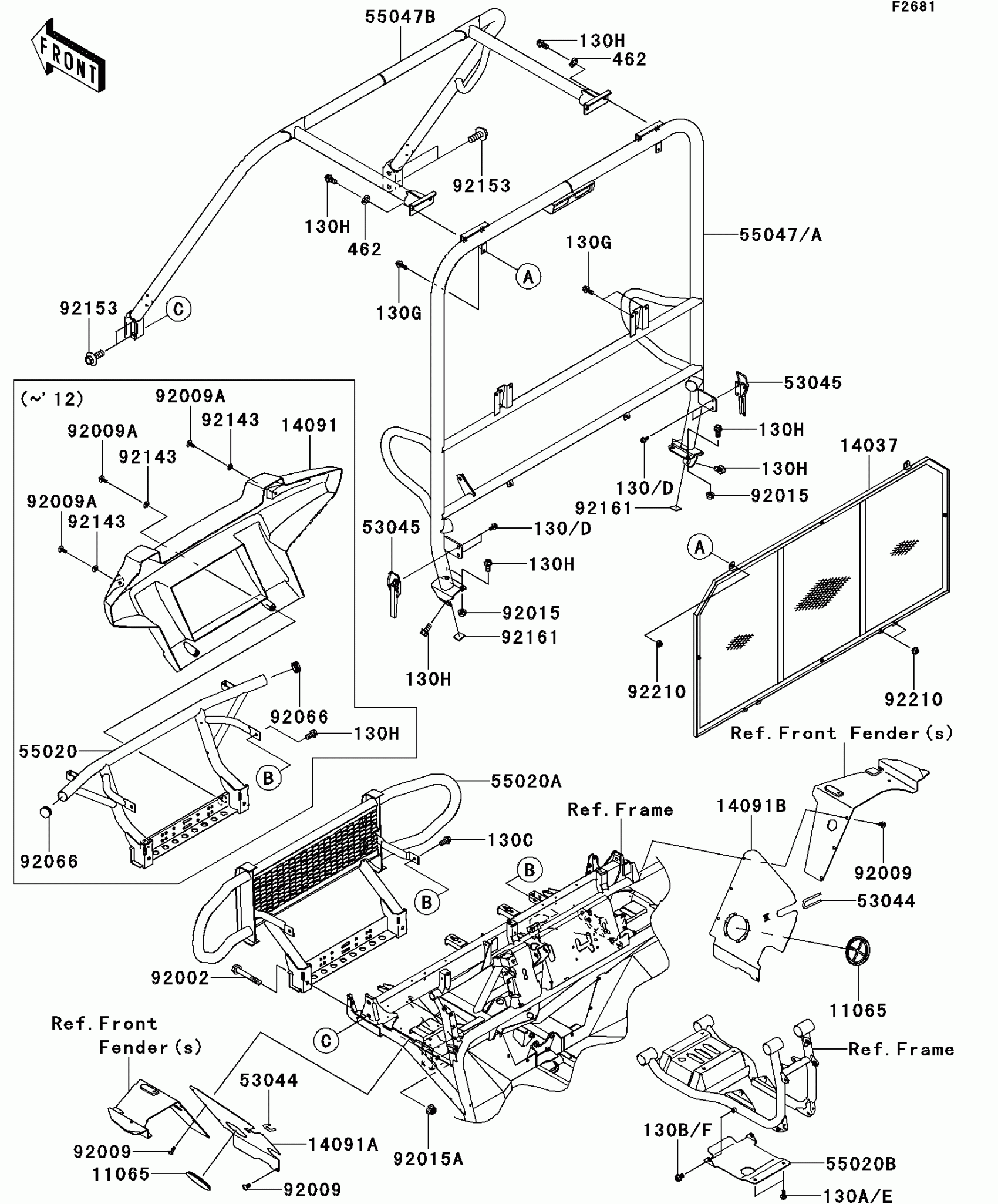

Kawasaki MULE™ 4010 4x4 Guards/Cab Frame Diagram

#

Description
Price

11065

CAP,F.BLACK

11065-1053-6Z

$8.40

14037

SCREEN,REAR GUARD,T.BLACK

14037-0810-388

$226.87

14091

COVER,FR,LH

14091-1758

$75.61

14091A

COVER,FR,RH

14091-1759

$75.61

53044

TRIM

53044-1137

$10.65

53045

HOOK-ASSY

53045-7501

$23.27

55020

GUARD,GEAR CASE

55020-2295

$30.42

55020A

GUARD,FR

55020-2299

$252.43

55047

BAR-COMP,T.BLACK

55047-0384-388

$655.73

55047A

BAR-COMP,T.BLACK

55047-0440-388

$637.99

55047B

BAR-COMP,FR,T.BLACK

55047-0441-388

$379.71

55047C

BAR-COMP,FR,T.BLACK

55047-7514-388

$390.26

92002

BOLT,FLANGED,12X75

92002-1661

$13.75

92015

NUT,LOCK,FLANGED,12MM

92015-1433

$8.86

92015A

NUT,FLANGED,LOCK,8MM

92015-1668

$4.69

92153

BOLT,FLANGED,14X36

92153-1282

$7.63

92161

DAMPER

92161-0020

$5.00

92172

SCREW,TAPPING,6X16

92172-0739

$0.85

92172A

SCREW,6X16

92172-0826

$2.26

92200

WASHER,10.2X23X2.5

92200-0211

$3.35

92210

NUT,LOCK,FLANGED,10MM

92210-0276

$2.61

130

BOLT-FLANGED,6X14

130BA0614

$1.20

130A

BOLT-FLANGED,6X16

130BA0616

$1.20

130B

BOLT-FLANGED,8X12

130BA0812

$0.95

130C

BOLT-FLANGED,8X20

130BA0820

$4.14

130D

BOLT-FLANGED,10X20

130BA1020

$3.35

130E

BOLT-FLANGED,10X25

130BA1025

$3.40

462

WASHER-SPRING,10MM

462DA1000

$4.60
