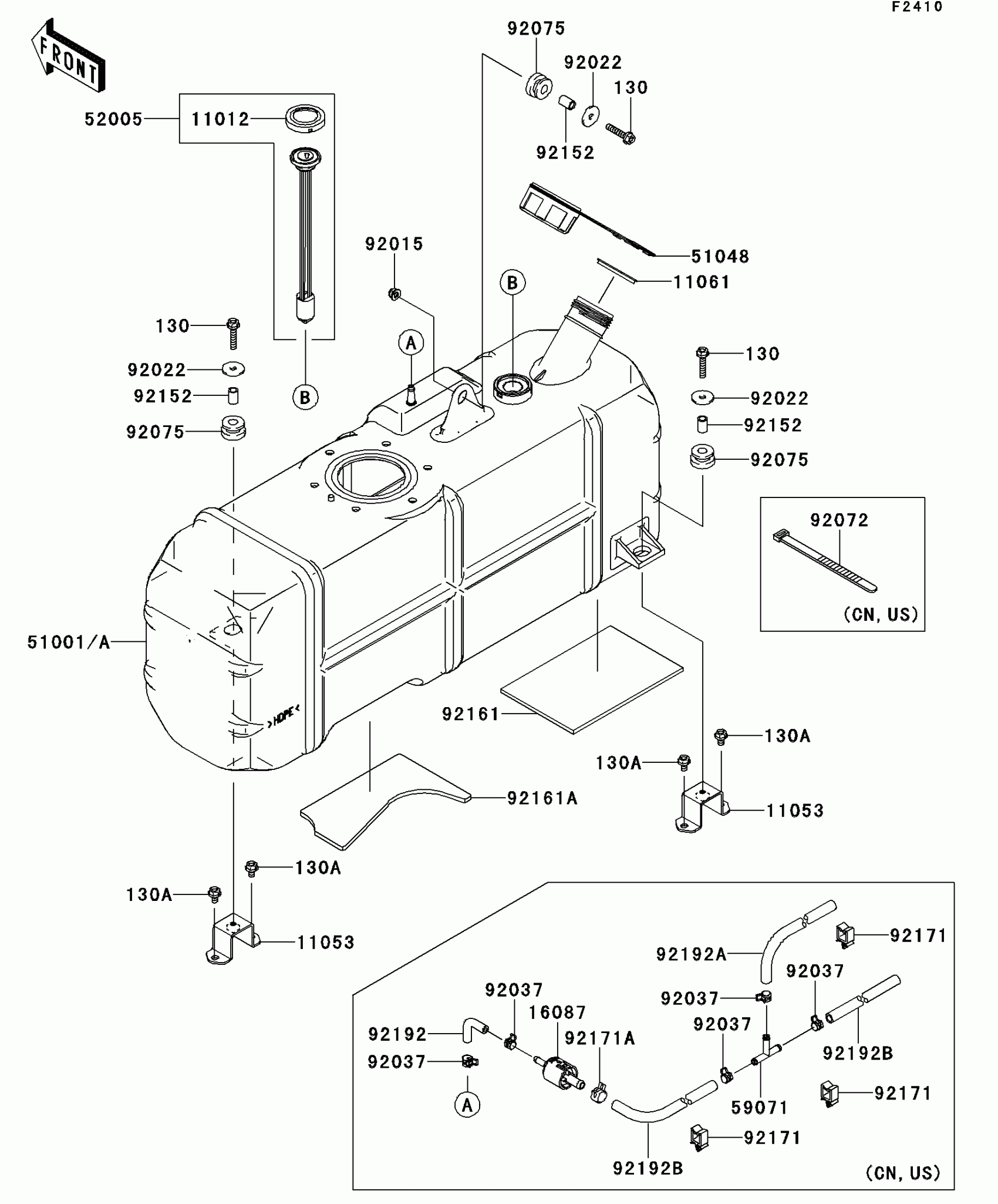

Kawasaki MULE™ 4010 4x4 Fuel Tank(M9F/MAF) Diagram

Description

Price

11012

CAP,FUEL GAUGE

11012-1627

$17.07

11053

BRACKET

11053-7512

$9.16

11061

GASKET,FUEL TANK CAP

11061-0395

$5.85

16087

VALVE-CHECK

16087-0002

$49.02

51001

TANK-COMP-FUEL

51001-0292

$466.21

51001A

TANK-COMP-FUEL

51001-0293

$444.79

51048

CAP-ASSY-TANK,FUEL

51048-0026

$12.72

52005

GAUGE,FUEL

52005-7501

Unavailable

59071

JOINT

59071-3705

$4.91

92015

NUT,LOCK,FLANGED,6MM

92015-1675

$4.31

92022

WASHER,6.5X24X2

92022-1690

$3.92

92037

CLAMP,TUBE

92037-1461

$3.88

92072

BAND,L=123

92072-030

$5.00

92075

DAMPER

92075-1787

$6.57

92152

COLLAR,7.02X10.32X15.3

92152-7511

$1.70

92161

DAMPER,92X35X4.76

92161-7508

$8.78

92161A

DAMPER,92X19X4.76

92161-7513

$8.07

92171

CLAMP

92171-0290

$3.73

92171A

CLAMP

92171-0515

$6.38

92192

TUBE,FUEL TANK-CHECK VALVE

92192-0067

$3.87

92192A

TUBE,7X11X370

92192-7512

$3.48

92192B

TUBE,7X11X225

92192-7513

$2.65

130

BOLT-FLANGED,6X30

130BA0630

$1.46

130A

BOLT-FLANGED,6X10

130BB0610

$2.49
