2023 Kawasaki Mule™ 4010 4x4 FE Water Pump Diagram

← All diagrams

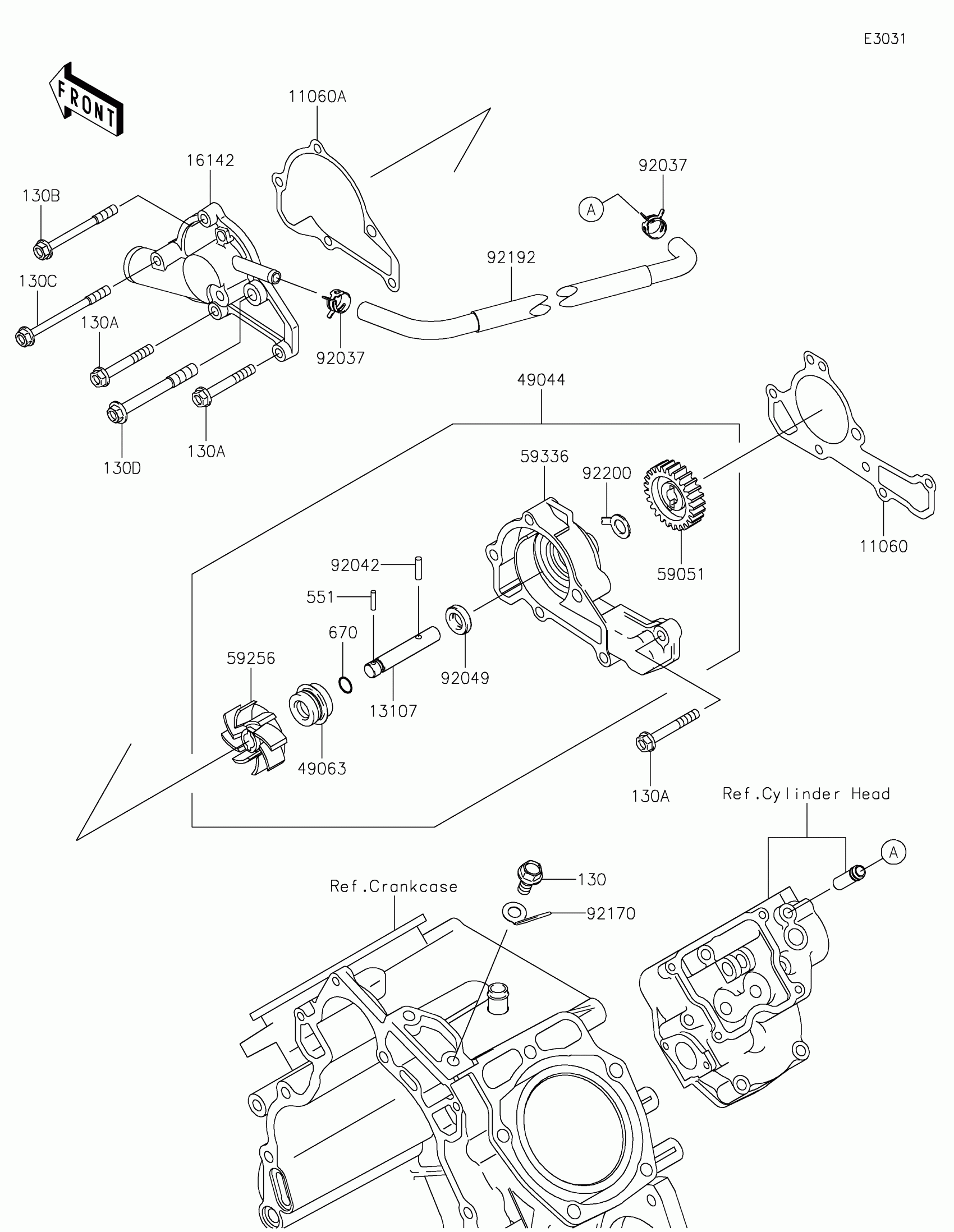

Find the part on the Water Pump diagram for your 2023 Kawasaki Mule™ 4010 4x4 FE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2023 Kawasaki Mule™ 4010 4x4 FE Water Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11060

GASKET,PUMP CASE

11060-2450

1
Out of stock

11060A

GASKET,PUMP COVER

11060-2451

1
Out of stock

13107

SHAFT,IMPELLER

13107-2097

1
Out of stock

16142

COVER-PUMP

16142-0729

1
Out of stock

49044

PUMP-WATER

49044-2066

1
Out of stock

49063

SEAL-MECHANICAL

49063-0002

1
Out of stock

59051

GEAR-SPUR

59051-2113

1
Out of stock

59256

IMPELLER

59256-2057

1
Out of stock

59336

CASE-PUMP

59336-2052

1
Out of stock

92037

CLAMP,HOSE CLIP

92037-1181

1
Out of stock

92042

PIN,DOWEL,4X15.8

92042-014

1
Out of stock

92049

SEAL-OIL

92049-2111

1
Out of stock

92170

CLAMP

92170-2060

1

$2.68

In stock

92192

TUBE

92192-2169

1
Out of stock

92200

WASHER

92200-2044

1
Out of stock

130

BOLT-FLANGED,8X16

130BA0816

1

$1.03

In stock

130A

BOLT-FLANGED,6X45

130CA0645

1

$1.29

In stock

130B

BOLT-FLANGED,6X65

130CA0665

1

$1.49

In stock

130C

BOLT-FLANGED,6X75

130CA0675

1

$1.49

In stock

130D

BOLT-FLANGED,8X70

130CA0870

1

$1.34

In stock

551

PIN,DOWEL,3X14

551A0314

1
Out of stock

670

O RING,7MM

670B1507

1
Out of stock
