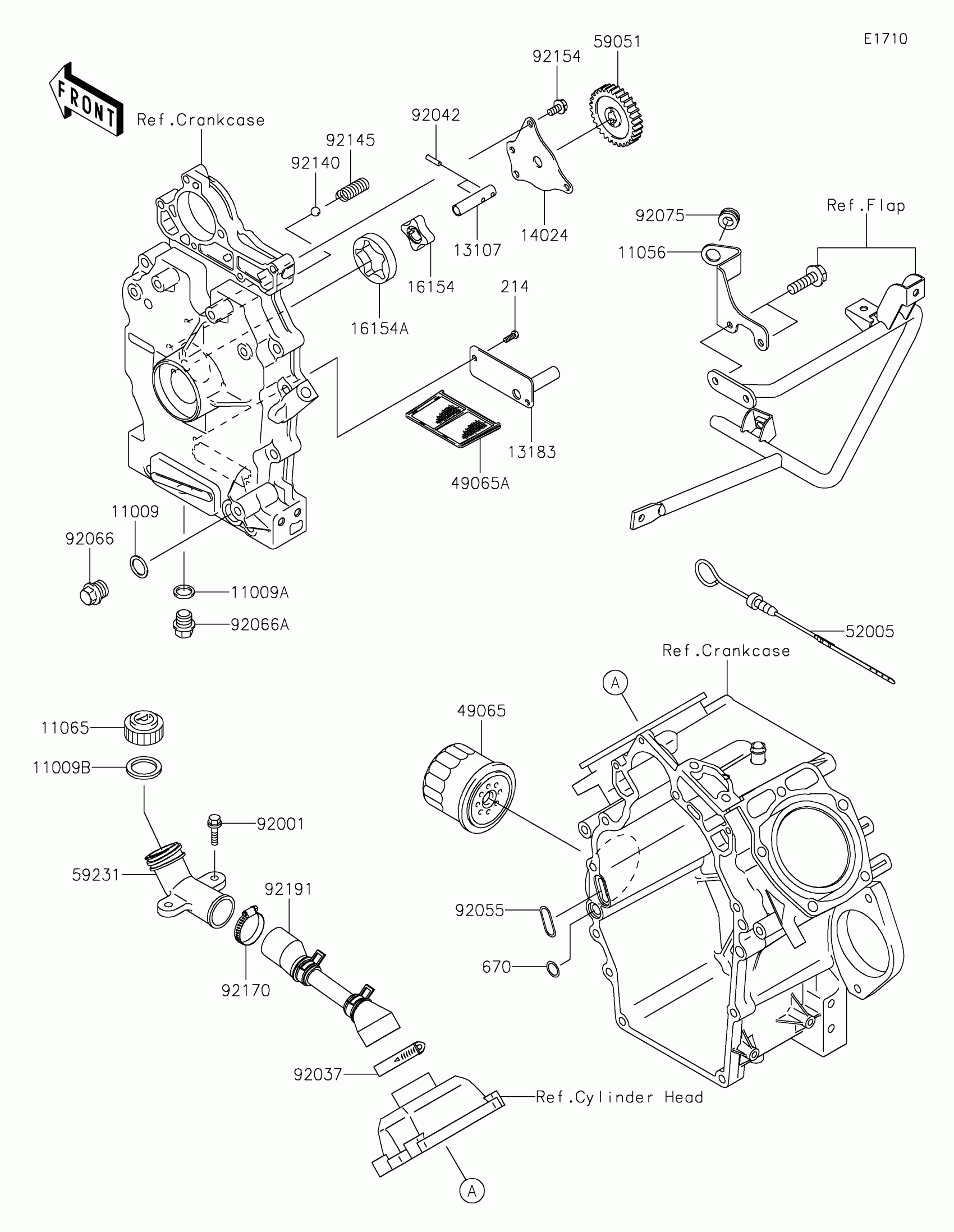

Kawasaki MULE™ 4010 4x4 FE Oil Pump/Oil Filter Diagram

Description

Price

11009

GASKET,16.2X22X1

11009-1467

$2.68

11009A

GASKET

11009-2175

$0.90

11009B

GASKET,OIL GAUGE

11009-2346

$1.39

11056

BRACKET,OIL PIPE

11056-4081

$7.20

11065

CAP

11065-1167

$5.87

13107

SHAFT,OIL PUMP

13107-2296

$10.76

13183

PLATE

13183-2419

$16.22

14024

COVER,OIL PUMP

14024-2113

$3.49

16154

ROTOR-PUMP,IN

16154-2053

$6.22

16154A

ROTOR-PUMP,OUT

16154-2054

$6.31

49065

FILTER-OIL

49065-2071

$10.96

49065A

FILTER-OIL

49065-2072

$4.64

52005

GAUGE

52005-0747

$40.77

59051

GEAR-SPUR

59051-2114

$4.78

59231

FILLER

59231-0756

$12.81

92001

BOLT,6X20

92001-1460

$2.99

92037

CLAMP

92037-506

$4.58

92042

PIN,DOWEL,4X15.8

92042-014

$0.46

92055

RING-O

92055-2086

$0.92

92066

PLUG,16X11.5

92066-2251

$5.15

92066A

PLUG,14X12

92066-2253

$1.32

92075

DAMPER

92075-1409

$5.61

92140

BALL,STEEL,13/32

92140-7003

$1.00

92145

SPRING

92145-2132

$0.88

92154

BOLT,6X12

92154-2938

$0.54

92170

CLAMP

92170-1036

$8.51

92191

TUBE

92191-1579

$31.64

214

SCREW-PAN+-,5X12

214AA0512

$0.73

670

O RING,11MM

670B2011

Unavailable
