- MULE™ 4010 4x4 FE
Radiator(-JK1AFCZ1 MB500167)

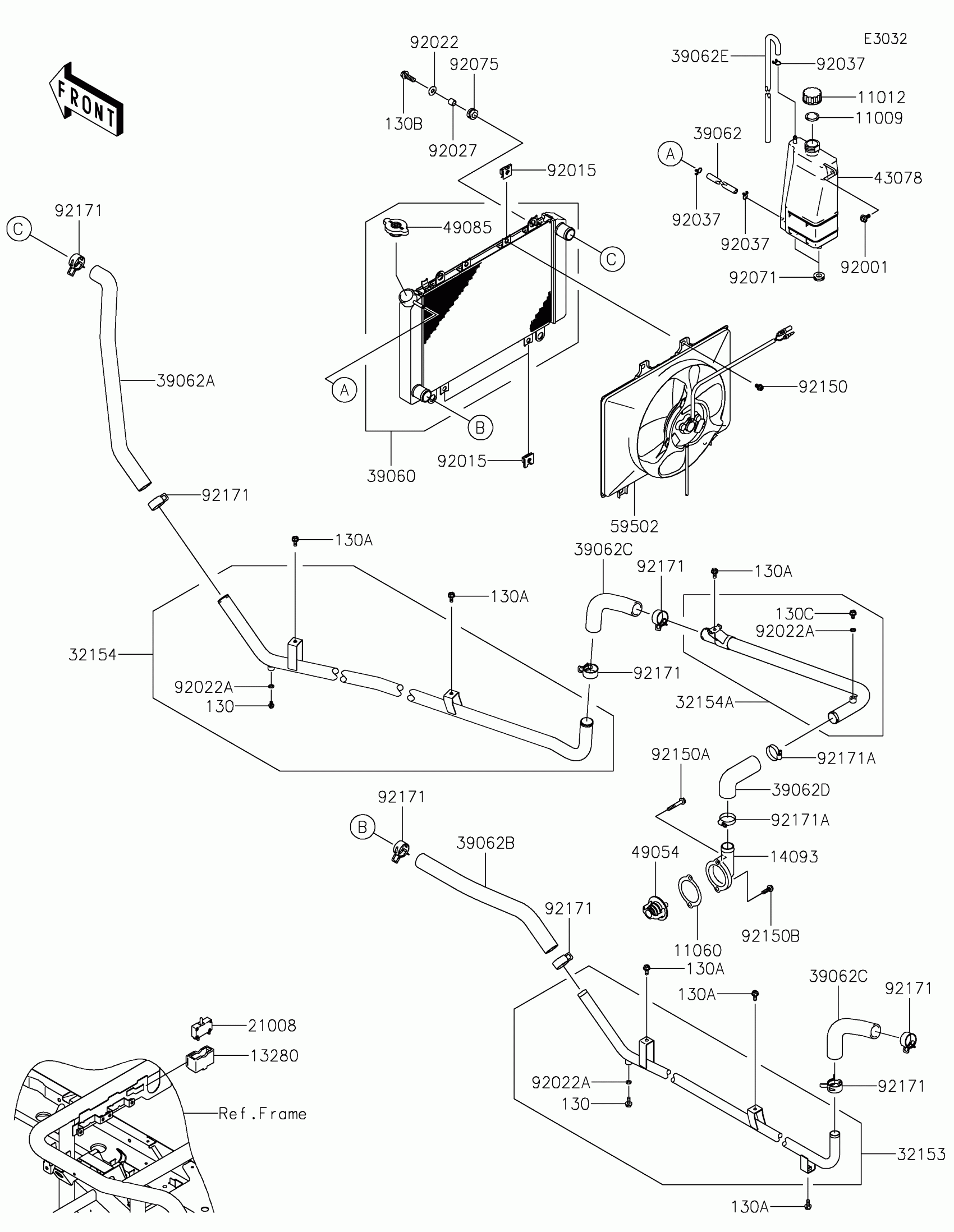

Kawasaki MULE™ 4010 4x4 FE Radiator(-JK1AFCZ1 MB500167) Diagram
#
11009
GASKET,RESERVOIR TANK CAP
11009-1145
$1.42
11012
CAP
11012-1084
$1.72
11060
GASKET,THERMOSTAT COVER
11060-2084
$2.83
13280
HOLDER,BREAKER
13280-0082
$5.60
14093
COVER,THERMOSTAT
14093-0061
$15.98
21008
BREAKER,FAN MOTOR
21008-0001
$26.03
32153
PIPE,LH
32153-1326
$61.87
32154
PIPE,RH,FR
32154-1656
$74.85
32154A
PIPE,RH,RR
32154-1658
$58.28
39060
RADIATOR
39060-0066
$827.09
39062
HOSE-COOLING,5.5X10.5X650
39062-0266
$3.68
39062A
HOSE-COOLING,PIPE-RAD.
39062-0282
$26.43
39062B
HOSE-COOLING,RAD.-LH PIPE
39062-0283
$24.55
39062C
HOSE-COOLING,PIPE-E/G
39062-0286
$16.97
39062D
HOSE-COOLING
39062-1832
$16.89
39062E
HOSE-COOLING,DRAIN
39062-7507
$24.47
43078
RESERVOIR
43078-0062
$29.75
49054
THERMOSTAT
49054-2056
$28.18
49085
CAP-ASSY-PRESSURE
49085-1066
$37.42
59502
FAN-ASSY
59502-0042
$709.73
92001
BOLT,W/P,6X16
92001-1860
$4.31
92015
NUT
92015-1487
$4.80
92022
WASHER,8.5X20X1.6,BLACK
92022-1317
$4.31
92022A
WASHER,6.2X11X1
92022-304
$3.65
92027
COLLAR
92027-102
$1.08
92037
CLAMP,TUBE
92037-147
$7.34
92071
GROMMET
92071-1115
$5.46
92075
DAMPER
92075-294
$4.10
92150
BOLT,6X12
92150-1186
$3.37
92150A
BOLT,6X40
92150-2230
$1.52
92150B
BOLT,6X20
92150-2231
$1.94
92171
CLAMP,COOLING HOSE
92171-0060
$4.41
92171A
CLAMP
92171-0179
$8.20
130
BOLT-FLANGED,6X10
130BA0610
$1.20
130A
BOLT-FLANGED,6X14
130BA0614
$1.20
130B
BOLT-FLANGED,8X25
130BA0825
$2.95
130C
BOLT-FLANGED,6X10
130BB0610
$2.49
