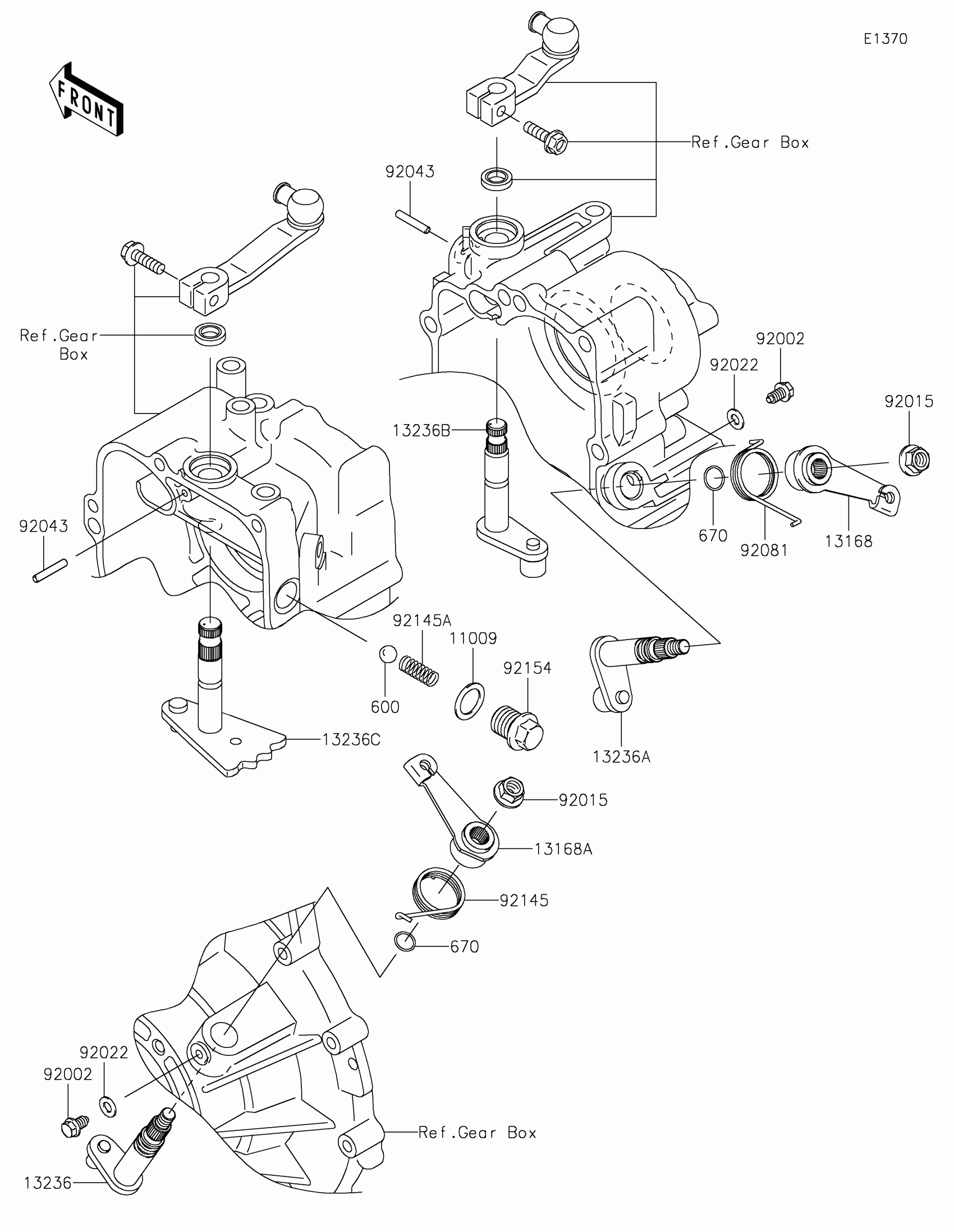

Kawasaki MULE™ 4010 4x4 FE Gear Change Mechanism Diagram

Description

Price

11009

GASKET,15.5X22X1

11009-1008

$3.63

13168

LEVER

13168-1268

$26.96

13168A

LEVER,DIFF LOCK

13168-1523

$22.78

13236

LEVER-COMP,DIFF LOCK

13236-1219

$24.07

13236A

LEVER-COMP,CHANGE,2WD/4WD

13236-1247

$43.12

13236B

LEVER-COMP,HI/LOW

13236-1360

$41.73

13236C

LEVER-COMP,FR/RR

13236-1366

$41.73

92002

BOLT,FLANGED-SMALL,6X8.1X2.5

92002-1962

$4.12

92015

NUT,FLANGED,8MM

92015-1406

$4.45

92022

WASHER OIL PUMP BANJO

92022-077

$3.99

92043

92043-1415

$2.59

92081

SPRING

92081-1853

$8.79

92145

SPRING

92145-0253

$10.97

92145A

SPRING

92145-0949

$8.51

92154

BOLT,NEUTRAL POSITION

92154-1139

$14.02

600

BALL-STEEL,13/32"

600A1300

$0.94

670

O RING,10MM

670B2010

$1.50

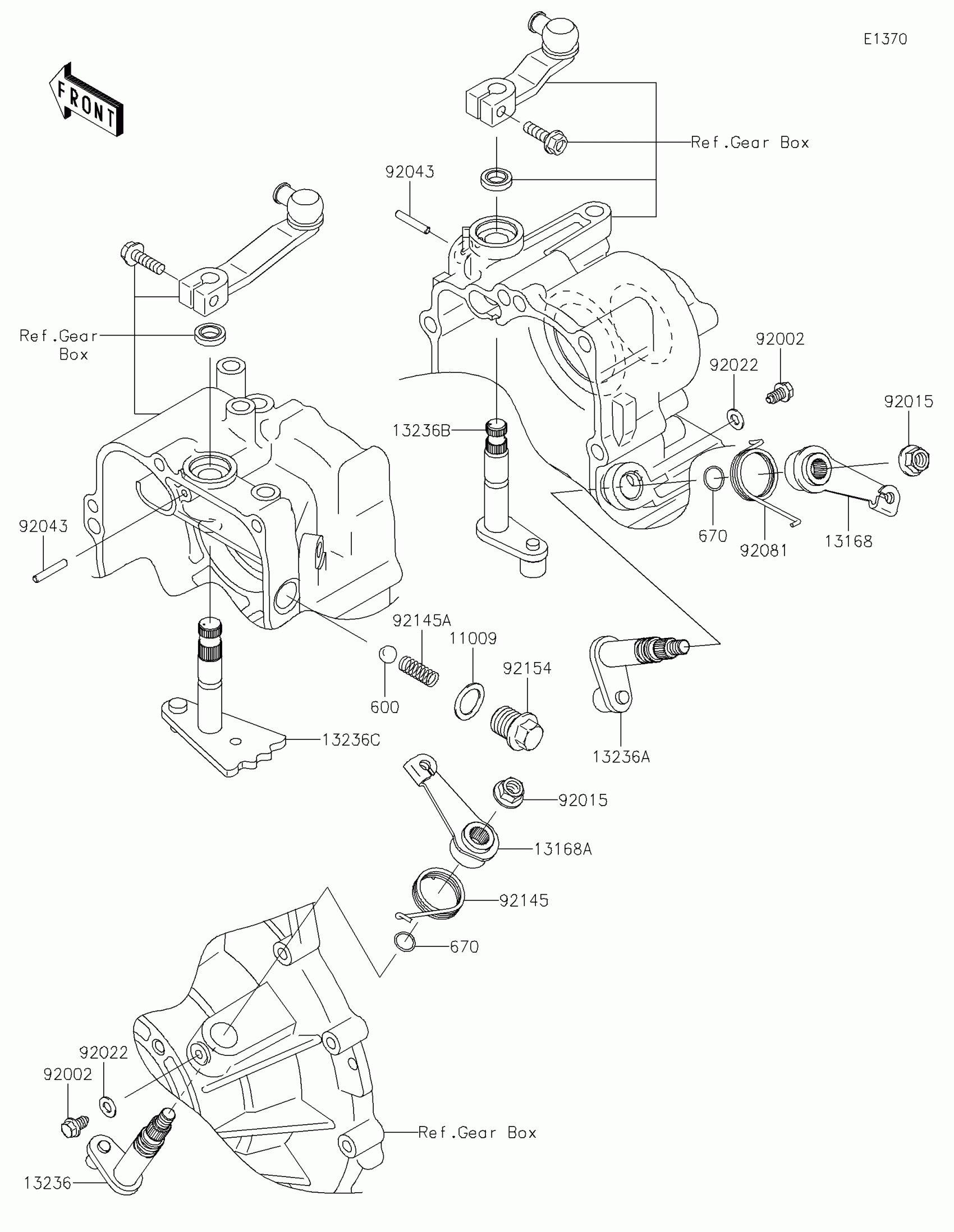

Kawasaki MULE™ 4010 4x4 FE Gear Change Mechanism Diagram

GASKET,15.5X22X1

LEVER

LEVER,DIFF LOCK

LEVER-COMP,DIFF LOCK

LEVER-COMP,CHANGE,2WD/4WD

LEVER-COMP,HI/LOW

LEVER-COMP,FR/RR

BOLT,FLANGED-SMALL,6X8.1X2.5

NUT,FLANGED,8MM

WASHER OIL PUMP BANJO

PIN

SPRING

SPRING

SPRING

BOLT,NEUTRAL POSITION

BALL-STEEL,13/32"

O RING,10MM
