Description

Price

13272

PLATE

13272-0284

$104.14

13272A

PLATE

13272-0285

$123.48

14091

COVER,SPEEDOMETER,F.BLACK

14091-0929-6Z

$8.62

14091A

COVER,FLOOR

14091-1378

$98.40

14091B

COVER

14091-1666

$20.39

14091C

COVER,FRONT SEAT,CNT

14091-7531

$113.24

14091D

COVER,FRONT SEAT,LH

14091-7541

$34.21

14091E

COVER,FRONT SEAT,RH

14091-7542

$49.47

14091F

COVER,PARKING CABLE

14091-7551

$13.47

14092

COVER,FLOOR,CNT,FR

14092-0832

$81.76

23016

LAMP-ASSY,PARKING&WATER TEMP

23016-0649

$86.89

23016A

LAMP-ASSY,DFI&OIL PRESSURE

23016-0650

$86.89

23016B

LAMP-ASSY,LED

23016-0651

$13.16

59226

PANEL-CONTROL,F.BLACK

59226-0026-6Z

$114.91

92009

SCREW,TAPPING,6X16

92009-1166

$5.52

92009A

SCREW,6X16

92009-1621

Unavailable

92015

NUT,FLANGED,6MM

92015-1367

$3.69

92022

WASHER,6.5X20X1.6,BLACK

92022-1346

$0.49

92039

RIVET

92039-0776

$1.19

92066

PLUG

92066-7505

$4.51

92069

BULB,12V 1.7W,T10WB

92069-0103

$4.99

92072

BAND,L=368.3

92072-3872

$1.59

92093

SEAL,LOWER COVER

92093-0181

$23.79

92093A

SEAL,FRONT FENDER,LH

92093-1293

$9.64

92093B

SEAL,FRONT FENDER,RH

92093-1294

$10.00

92143

COLLAR

92143-1087

$4.31

92161

DAMPER

92161-0020

$5.00

92172

SCREW,6X18

92172-0002

$2.80

130

BOLT-FLANGED,6X10

130BA0610

$1.20

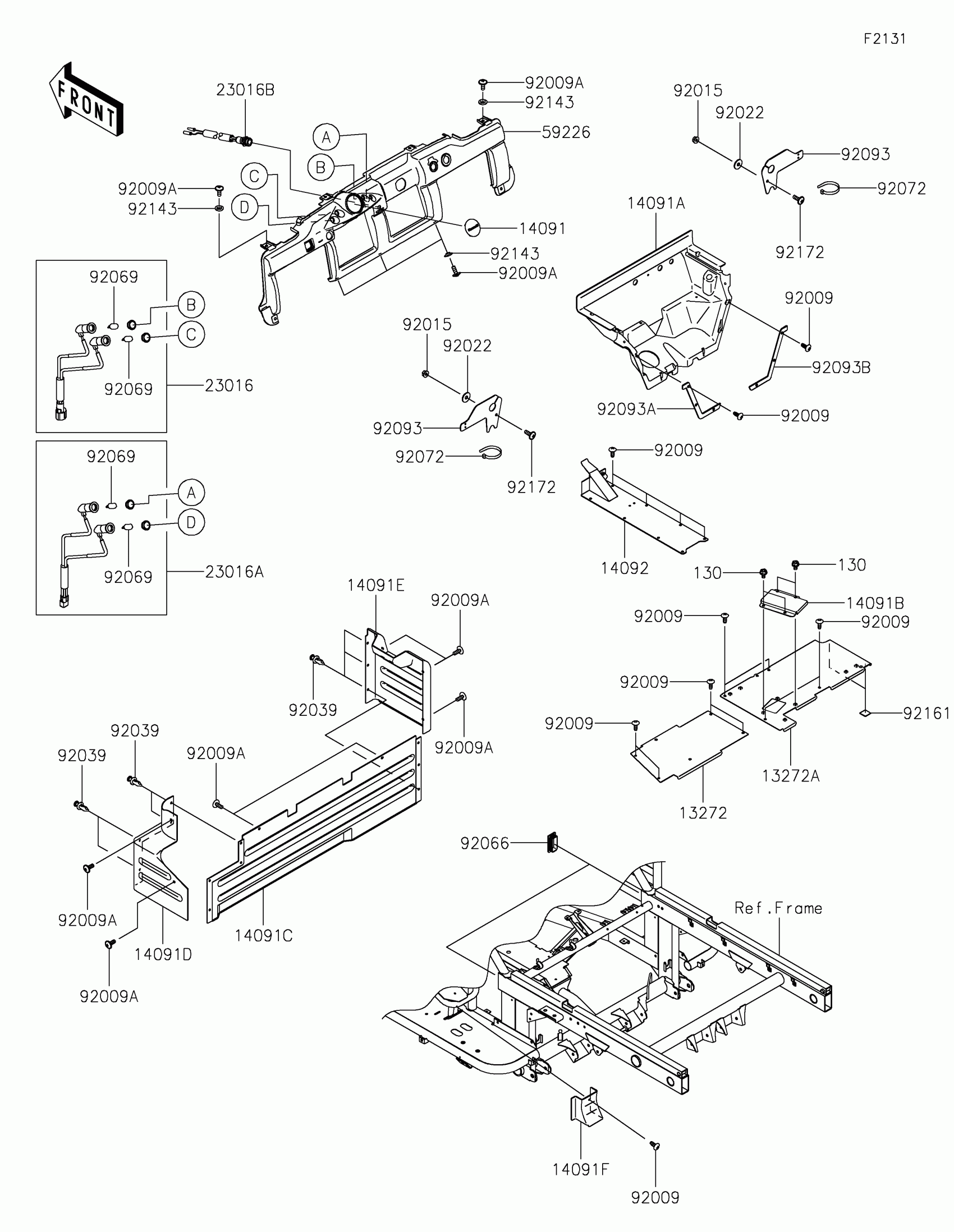

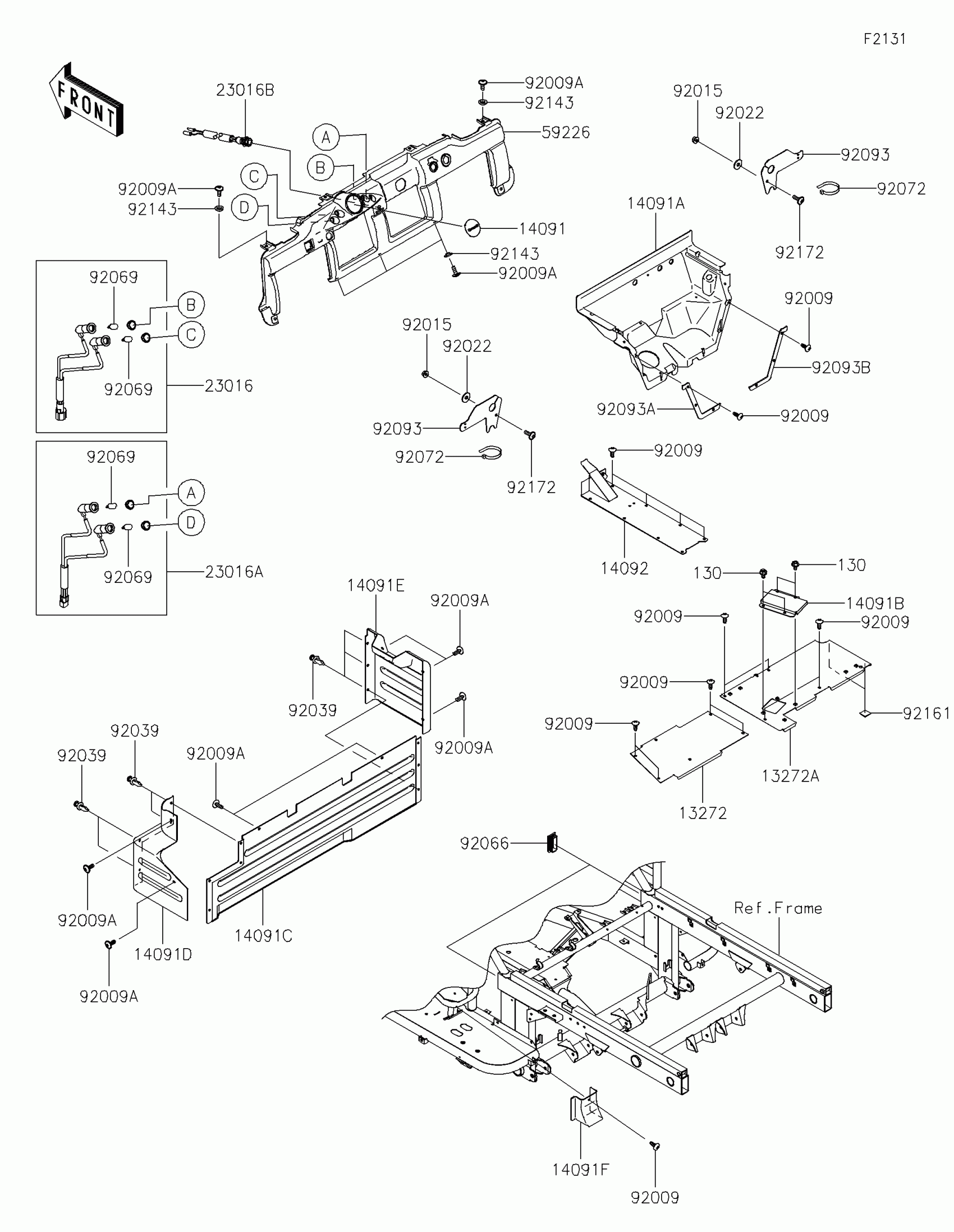

Kawasaki MULE™ 4010 4x4 FE Frame Fittings Diagram

PLATE

PLATE

COVER,SPEEDOMETER,F.BLACK

COVER,FLOOR

COVER

COVER,FRONT SEAT,CNT

COVER,FRONT SEAT,LH

COVER,FRONT SEAT,RH

COVER,PARKING CABLE

COVER,FLOOR,CNT,FR

LAMP-ASSY,PARKING&WATER TEMP

LAMP-ASSY,DFI&OIL PRESSURE

LAMP-ASSY,LED

PANEL-CONTROL,F.BLACK

SCREW,TAPPING,6X16

SCREW,6X16

NUT,FLANGED,6MM

WASHER,6.5X20X1.6,BLACK

RIVET

PLUG

BULB,12V 1.7W,T10WB

BAND,L=368.3

SEAL,LOWER COVER

SEAL,FRONT FENDER,LH

SEAL,FRONT FENDER,RH

COLLAR

DAMPER

SCREW,6X18

BOLT-FLANGED,6X10
