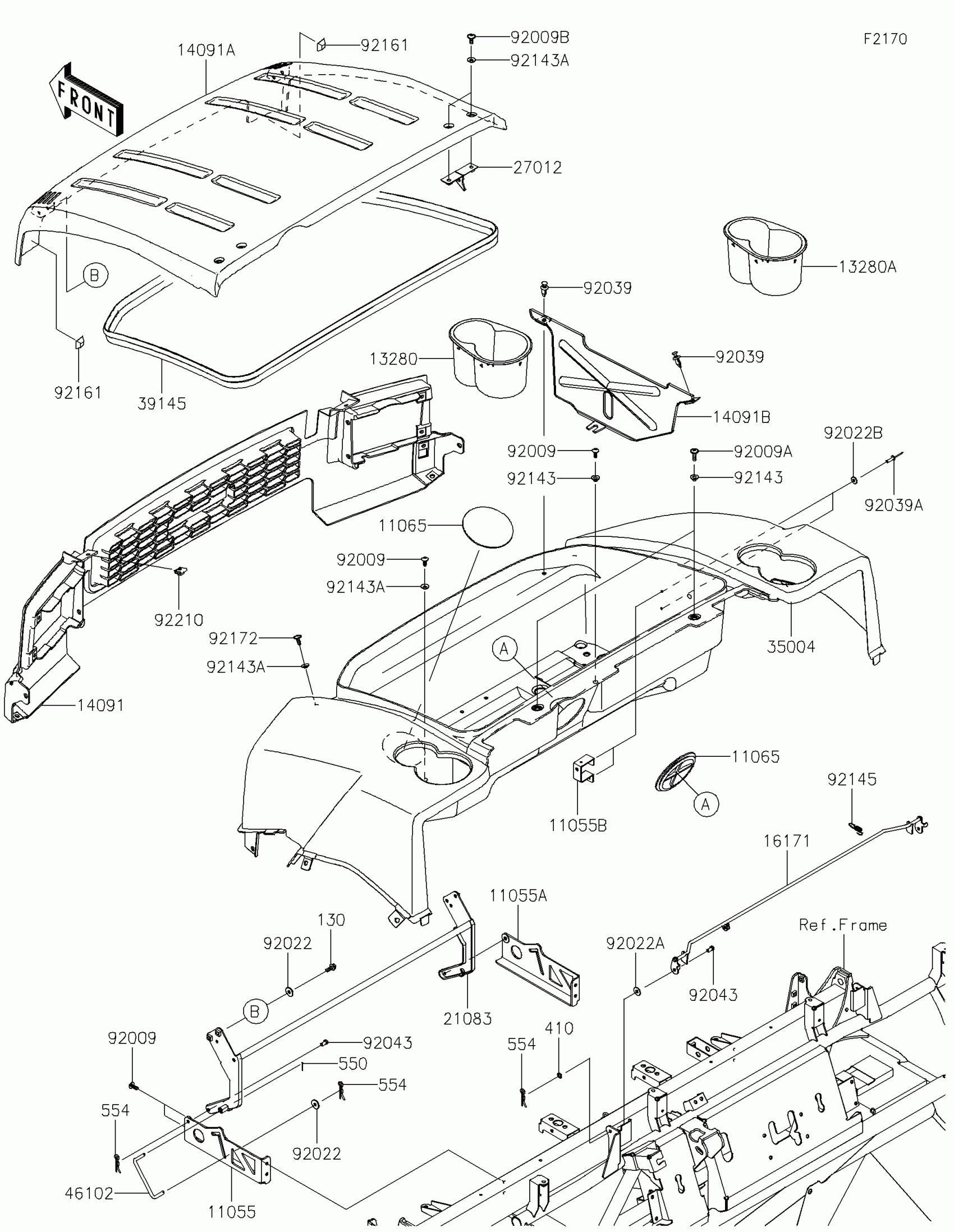

Kawasaki MULE™ 4010 4x4 FE Fenders Diagram

#

Description
Price

11055

BRACKET,HINGE,LH

11055-0037

$22.13

11055A

BRACKET,HINGE,RH

11055-0038

$22.13

11055B

BRACKET,RESERVOIR TANK

11055-0124

$4.78

11065

CAP,F.BLACK

11065-1053-6Z

$8.40

13280

HOLDER,CUP HOLDER,LH,F.BLACK

13280-0265-6Z

$13.39

13280A

HOLDER,CUP HOLDER,RH,F.BLACK

13280-0266-6Z

$13.39

14091

COVER,FRONT GRILL,B.WHITE

14091-0818-266

$98.06

14091A

COVER,FRONT FENDER,B.WHITE

14091-0829-266

$177.69

14091B

COVER,RESERVOIR TANK

14091-1715

$30.42

16171

LINK

16171-0015

$29.40

21083

ARM,HOOD

21083-0051

$75.54

27012

HOOK,HOOD

27012-0119

$5.68

35004

FENDER-FRONT,CNT,B.WHITE

35004-0096-266

$330.10

39145

TRIM-SEAL,L=2350

39145-0032

$46.93

46102

ROD

46102-0103

$4.09

92009

SCREW,TAPPING,6X16

92009-1166

$5.52

92009A

SCREW,6X22,BLACK

92009-1256

$2.78

92009B

SCREW,6X16

92009-1621

Unavailable

92022

WASHER,6.5X20X1.6,BLACK

92022-1346

$0.49

92022A

WASHER,7X18X1.2

92022-1545

$1.03

92022B

WASHER,4.3X12.5X1

92022-1949

$3.60

92039

RIVET

92039-0776

$1.19

92039A

RIVET

92039-1150

$3.92

92043

PIN,6X9

92043-1626

$2.26

92143

COLLAR

92143-1057

$5.00

92143A

COLLAR

92143-1087

$4.31

92145

SPRING

92145-0215

$4.55

92161

DAMPER,FR HOOD

92161-0790

$2.26

92172

SCREW,TAPPING,6X20

92172-0488

$3.02

92210

NUT,LEAF SPRING,6MM

92210-0624

$2.32

130

BOLT-FLANGED,6X16

130BA0616

$1.20

410

WASHER-PLAIN-SMALL

410AA0600

$1.31

550

PIN-COTTER,1.6X15

550AA1615

$2.51

554

PIN-SNAP,1.2X21.2

554DA0600

$0.95
