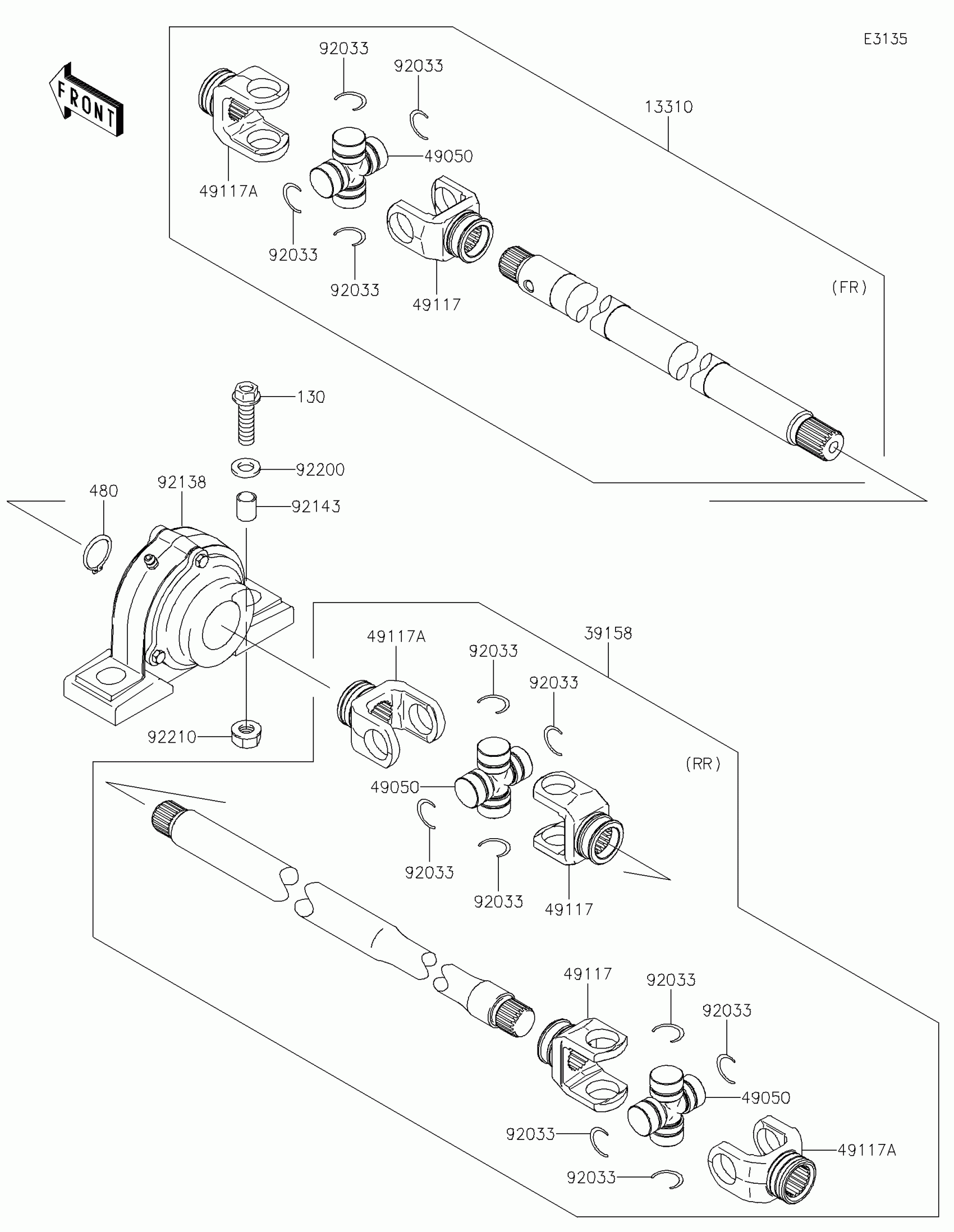

Kawasaki MULE™ 4010 4x4 FE Drive Shaft-Propeller Diagram

Description

Price

13310

SHAFT-ASSY

13310-0572

$319.56

39158

SHAFT-ASSY-DRIVE

39158-0304

$376.38

49050

SPIDER

49050-1075

$82.24

49117

YOKE,DRIVE

49117-0598

$65.78

49117A

YOKE,DRIVE

49117-0599

$65.78

92033

RING-SNAP

92033-1030

$4.14

92138

BEARING-COMP

92138-1052

$126.70

92143

COLLAR,10.3X12.7X15

92143-1634

$7.68

92200

WASHER,10.5X19X2.3

92200-1042

$3.92

92210

NUT,LOCK,10MM

92210-1204

$4.31

130

BOLT-FLANGED,10X35

130BA1035

$3.26

480

CIRCLIP-TYPE-C,25MM

480J2500

$2.03
