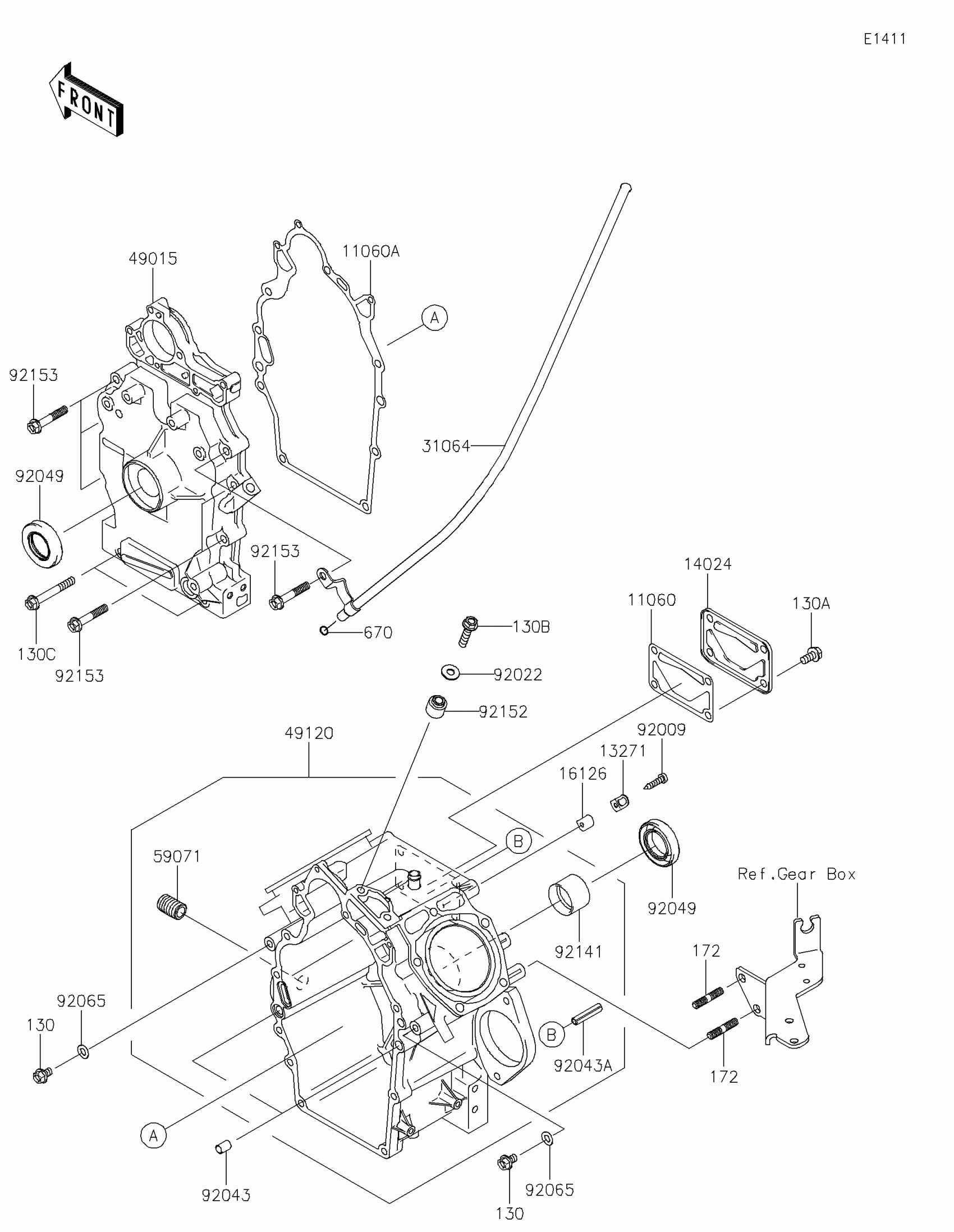

Kawasaki MULE™ 4010 4x4 FE Crankcase Diagram

Description

Price

11060

GASKET,BREATHER,COVER

11060-2089

$3.75

11060A

GASKET,CRANKCASE COVER

11060-2449

$19.96

13271

PLATE

13271-2054

$1.92

14024

COVER

14024-2292

$4.15

16126

VALVE

16126-2146

$0.62

31064

PIPE-COMP

31064-0713

$29.62

49015

COVER-CRANKCASE

49015-6324

$523.39

49120

CRANKCASE-COMP

49120-0847

$1,125.73

59071

JOINT,OIL FILTER

59071-0743

$2.41

92009

SCREW

92009-2308

$0.43

92022

WASHER,8.5X20X1.6

92022-1561

$4.31

92043

PIN,DOWEL,10X14

92043-1037

$0.74

92043A

PIN,2X25

92043-2227

$0.68

92049

SEAL-OIL

92049-2112

$6.18

92065

GASKET,8.5X16X1

92065-023

$3.88

92141

BEARING-PLANE

92141-2122

$7.19

92152

COLLAR

92152-1901

$8.52

92153

BOLT,FLANGED,8X45

92153-2130

$1.77

130

BOLT-FLANGED,8X12

130AB0812

$0.73

130A

BOLT-FLANGED,8X16

130BA0816

$1.12

130B

BOLT-FLANGED,8X35

130BA0835

$1.46

130C

BOLT-FLANGED,8X60

130CA0860

$1.77

172

BOLT-STUD,8X25

172BA0825

$3.70

670

O RING,10MM

670B2010

$1.50
