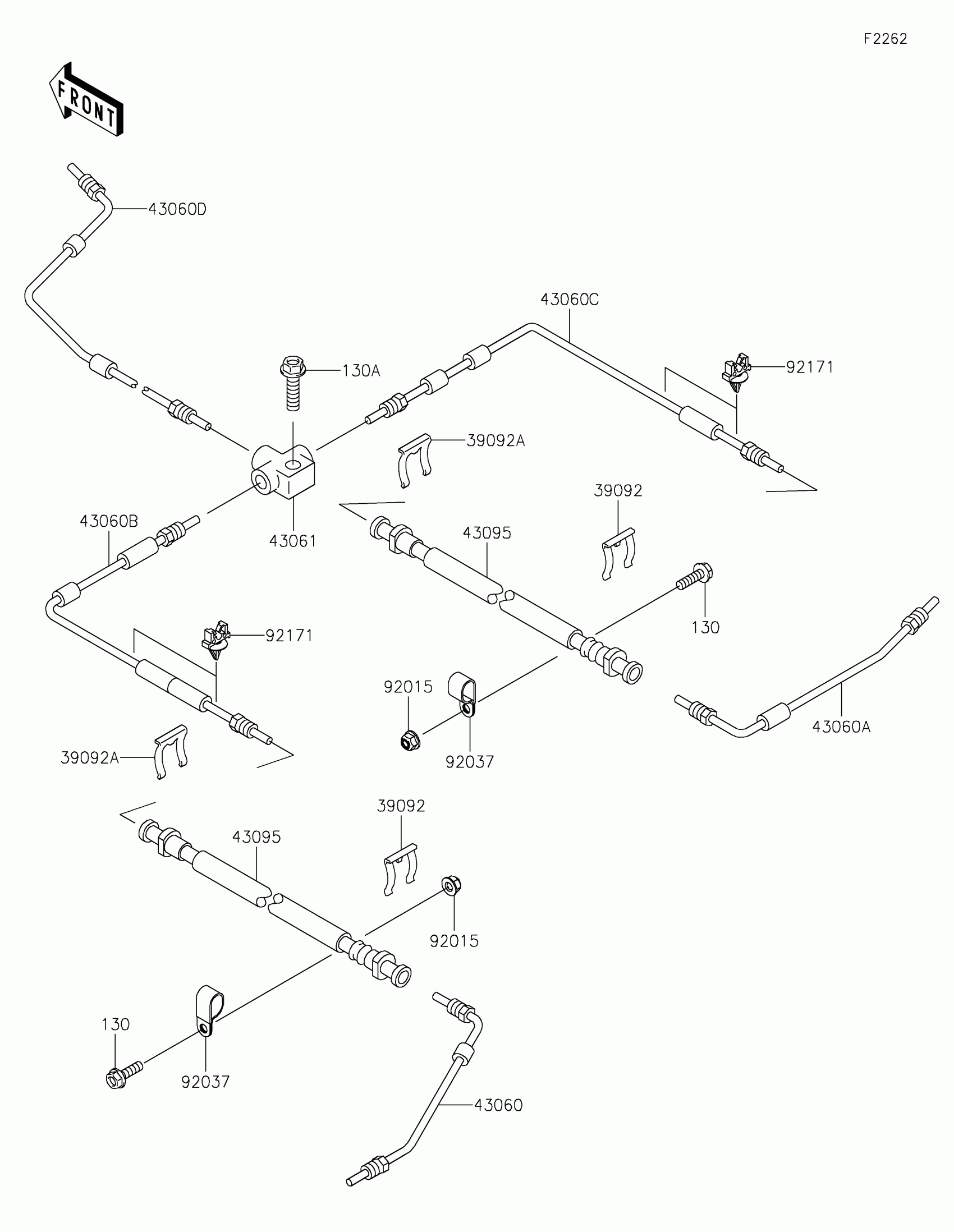

Kawasaki MULE™ 4010 4x4 FE Brake Piping Diagram

Description

Price

39092

PIN-HAIR

39092-1052

$7.95

39092A

PIN-HAIR

39092-1059

$3.76

43060

PIPE-BRAKE,RR,LH

43060-1083

$20.64

43060A

PIPE-BRAKE,RR,RH

43060-1084

$27.22

43060B

PIPE-BRAKE,MIDDLE,LH

43060-1086

$30.79

43060C

PIPE-BRAKE,MIDDLE,RH

43060-1113

$60.71

43060D

PIPE-BRAKE,FR

43060-7506

$39.29

43061

JOINT-BRAKE

43061-1063

$47.61

43095

HOSE-BRAKE,RR

43095-1823

$14.79

92015

NUT,LOCK,FLANGED,6MM

92015-1675

$4.31

92037

CLAMP

92037-1608

$8.10

92171

CLAMP

92171-1312

$3.35

130

BOLT-FLANGED,6X20

130AA0620

$1.74

130A

BOLT-FLANGED,8X30

130CA0830

$1.08
