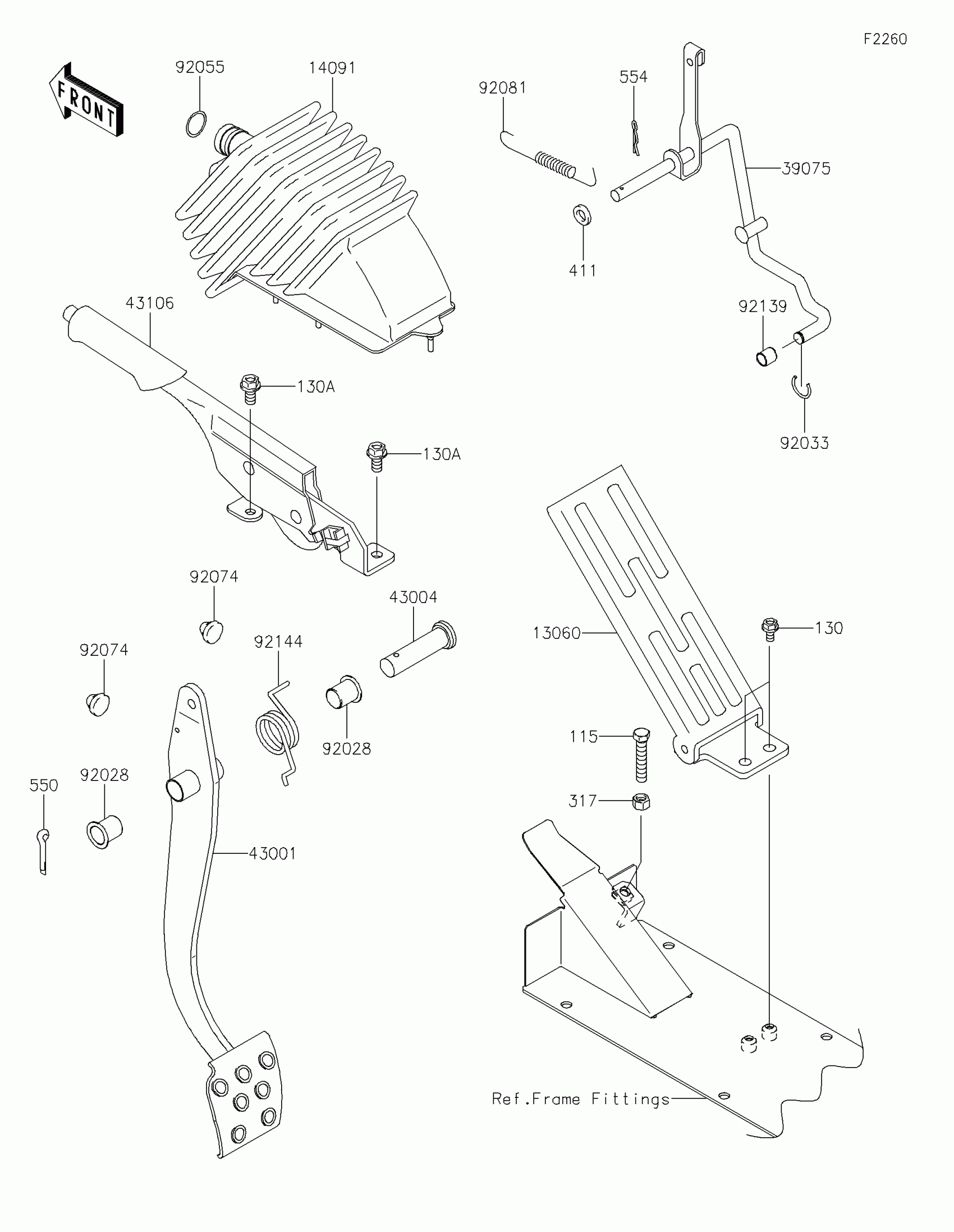

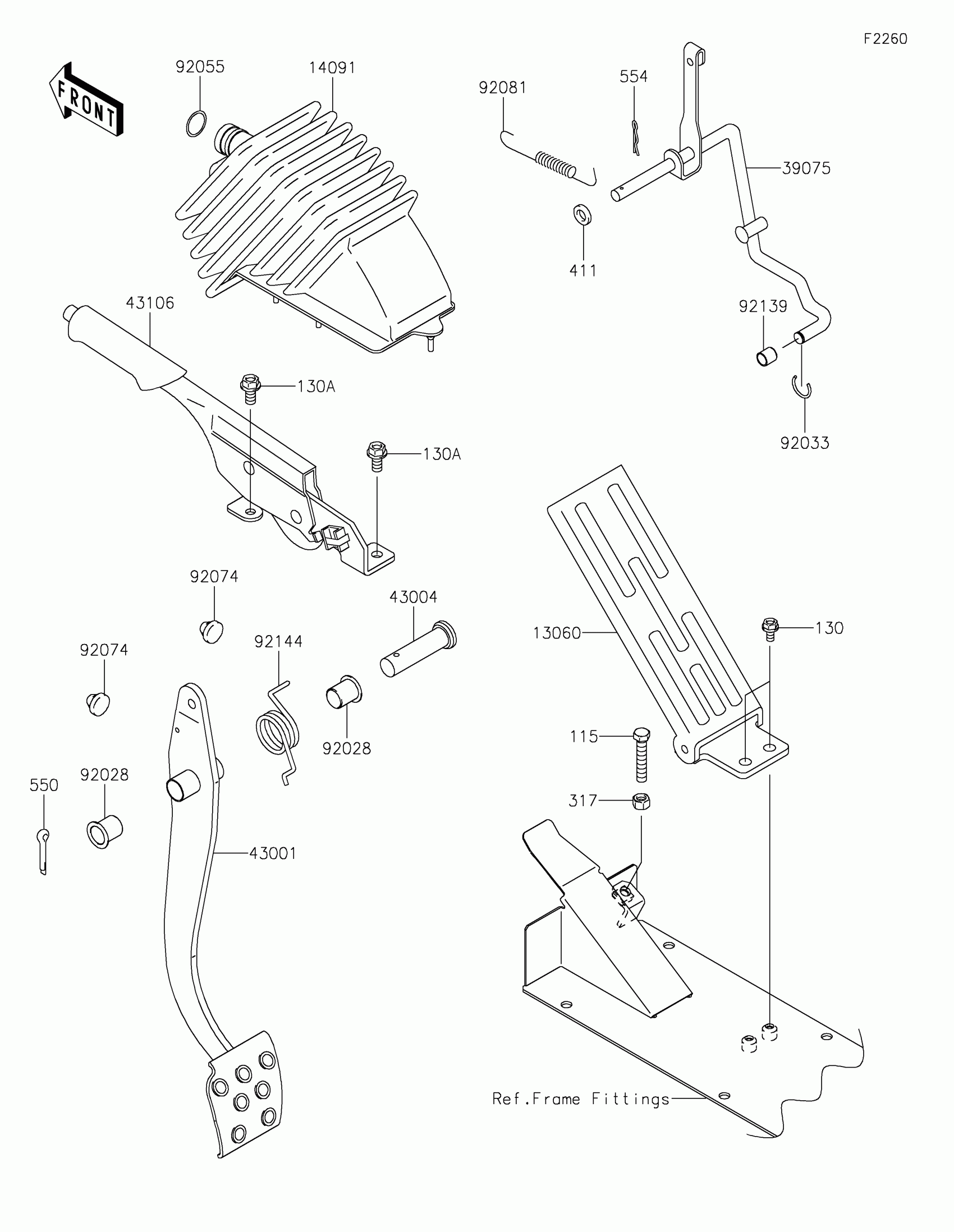

Kawasaki MULE™ 4010 4x4 FE Brake Pedal/Throttle Lever Diagram

Description

Price

13060

PEDAL,THROTTLE

13060-0023

$48.96

14091

COVER,PARKING LEVER

14091-0067

$79.16

39075

LEVER-THROTTLE

39075-0016

$65.45

43001

LEVER-BRAKE,PEDAL

43001-1320

$58.67

43004

SHAFT-BRAKE

43004-1128

$16.64

43106A

LEVER-ASSY-PARKING BRAKE

43106-0010

$153.11

92028

BUSHING

92028-1571

$10.27

92033

RING-SNAP

92033-1247

$2.98

92055

RING-O,18X24X3

92055-1633

$4.65

92074

PLUG,7X2

92074-028

$3.81

92081

SPRING,BRAKE LEVER RETURN

92081-1922

$4.64

92139

BUSHING

92139-0308

$3.19

92144

SPRING

92144-1536

$6.33

115

BOLT-SMALL-UPSET,8X40

115AA0840

$5.07

130

BOLT-FLANGED,6X12

130AB0612

$0.62

130A

BOLT-FLANGED,8X16

130CA0816

$1.77

317

NUT-HEX-SMALL,8MM

317BA0800

$1.24

411

WASHER-PLAIN,10MM

411AA1000

$0.81

550

PIN-COTTER,2.5X25

550AA2525

$1.05

554

PIN-SNAP,10MM

554DA1000

Unavailable
