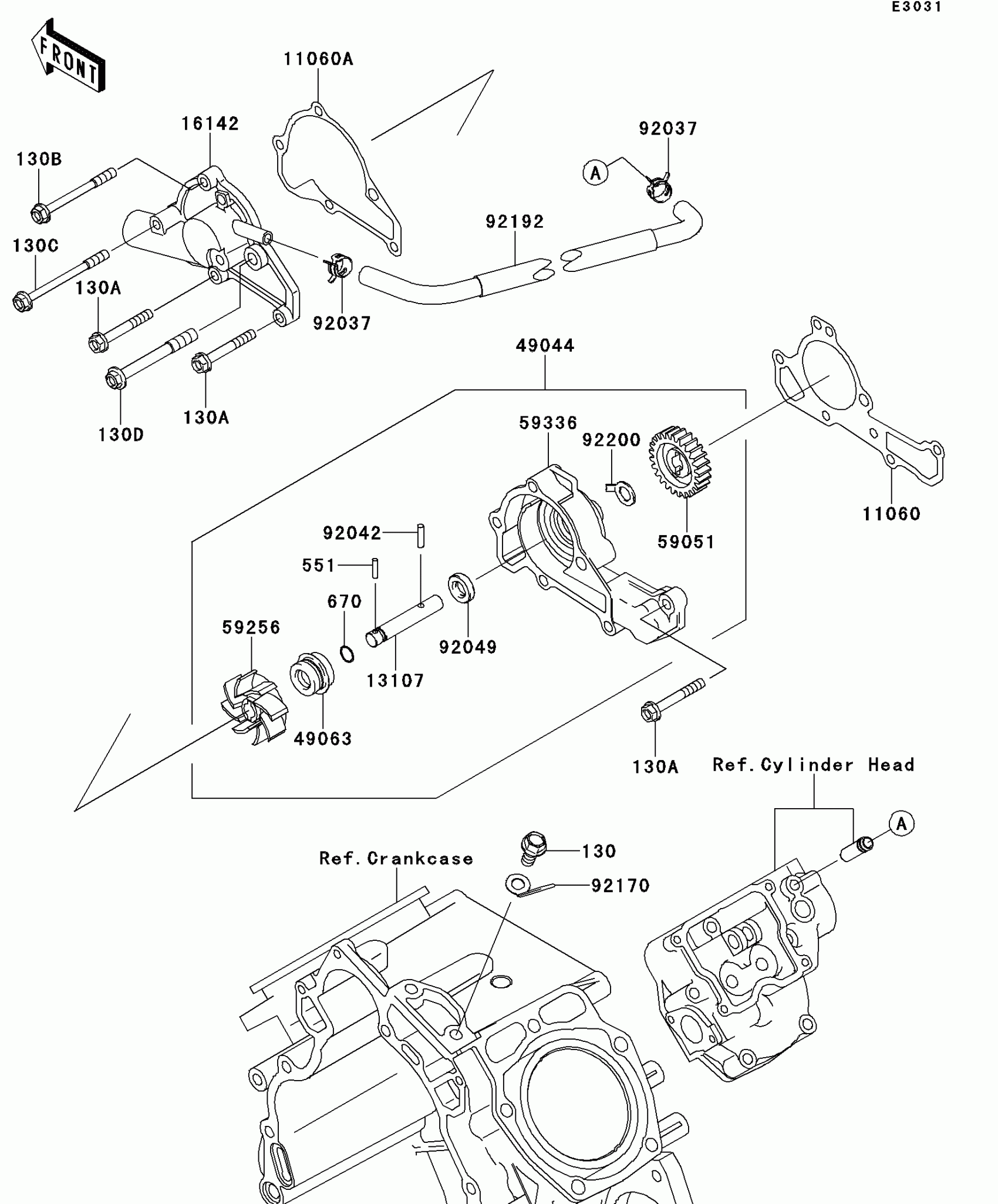

Kawasaki MULE™ 4000 Water Pump Diagram

Description

Price

11060

GASKET,PUMP CASE

11060-2450

$7.31

11060A

GASKET,PUMP COVER

11060-2451

$5.07

13107

SHAFT,IMPELLER

13107-2097

$8.15

16142

COVER-PUMP

16142-2069

Unavailable

49044

PUMP-WATER

49044-2066

$70.46

49063

SEAL-MECHANICAL

49063-1056

$16.68

59051

GEAR-SPUR

59051-2113

$4.72

59256

IMPELLER

59256-2057

$4.09

59336

CASE-PUMP

59336-2052

$30.79

92037

CLAMP,HOSE CLIP

92037-1181

$3.36

92042

PIN,DOWEL,4X15.8

92042-014

$0.43

92049

SEAL-OIL

92049-2111

$3.59

92170

CLAMP

92170-2060

$3.41

92192

TUBE

92192-2169

$13.06

92200

WASHER

92200-2044

$2.93

130

BOLT-FLANGED,8X16

130BA0816

$1.12

130A

BOLT-FLANGED,6X45

130CA0645

$1.47

130B

BOLT-FLANGED,6X65

130CA0665

$1.77

130C

BOLT-FLANGED,6X75

130CA0675

$1.77

130D

BOLT-FLANGED,8X70

130CA0870

$2.02

551

PIN,DOWEL,3X14

551A0314

$0.73

670

O RING,7MM

670B1507

$1.28
