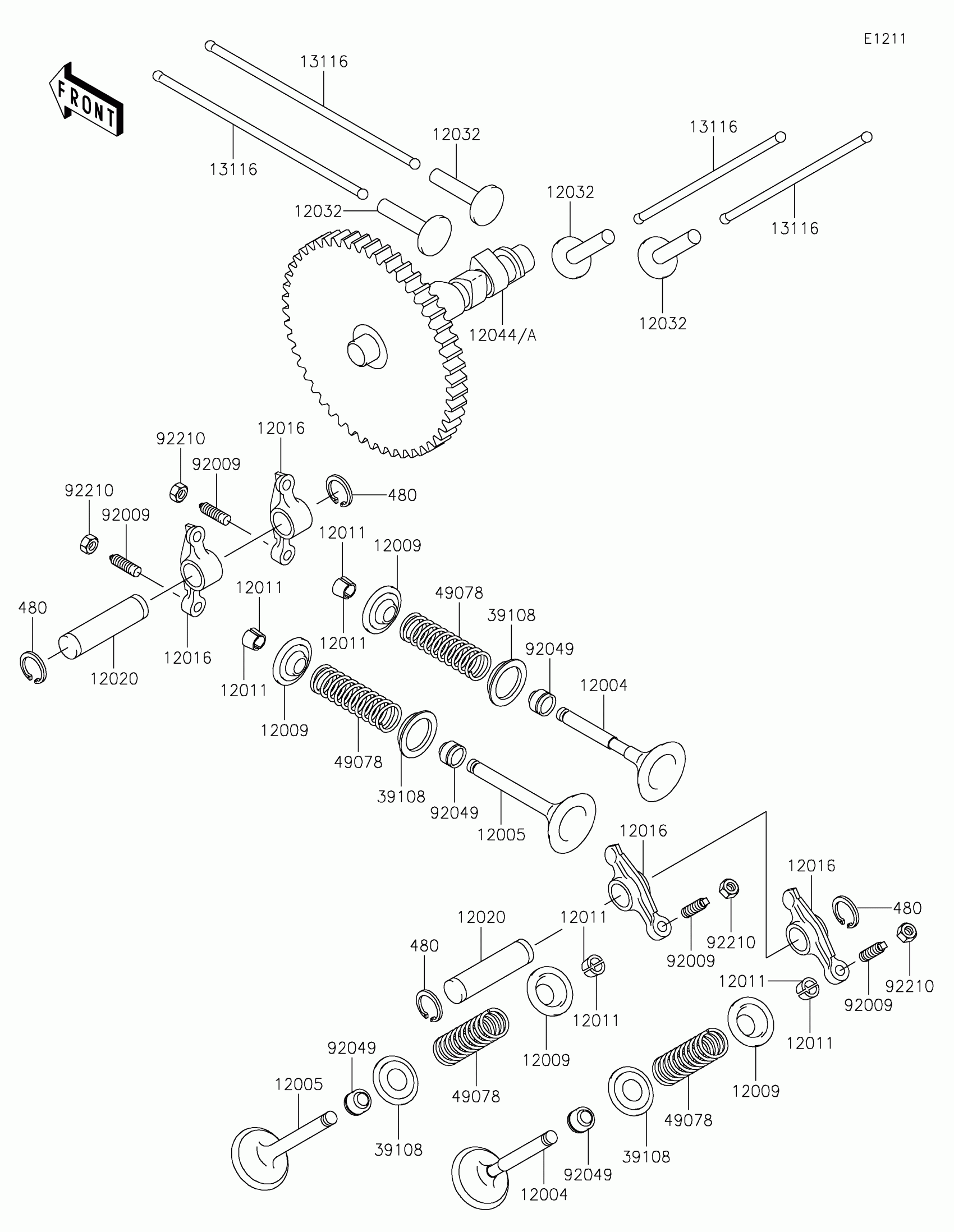

Kawasaki MULE 4000 TRANS™ Valve(s)/Camshaft(s) Diagram

Description

Price

12004

VALVE-INTAKE

12004-2115

$20.02

12005

VALVE-EXHAUST

12005-2093

$28.83

12009

RETAINER-VALVE SPRING

12009-2067

$3.36

12011

COLLET

12011-2056

$2.51

12016

ARM-ROCKER

12016-2056

$18.01

12020

SHAFT-ROCKER

12020-2059

$4.91

12032

TAPPET

12032-2064

$10.66

12044A

CAMSHAFT-VALVE

12044-0956

$167.17

13116

ROD-PUSH

13116-2057

$4.28

39108

RETAINER-SPRING

39108-2057

$0.62

49078

SPRING-ENGINE VALVE

49078-2082

$2.66

92009

SCREW,VALVE ADJUST

92009-1109

$2.29

92049

SEAL-OIL

92049-2109

$5.32

92210

NUT,VALVE ADJUST LOCK

92210-1491

$1.00

480

CIRCLIP-TYPE-C,12MM

480J1200

$0.62
