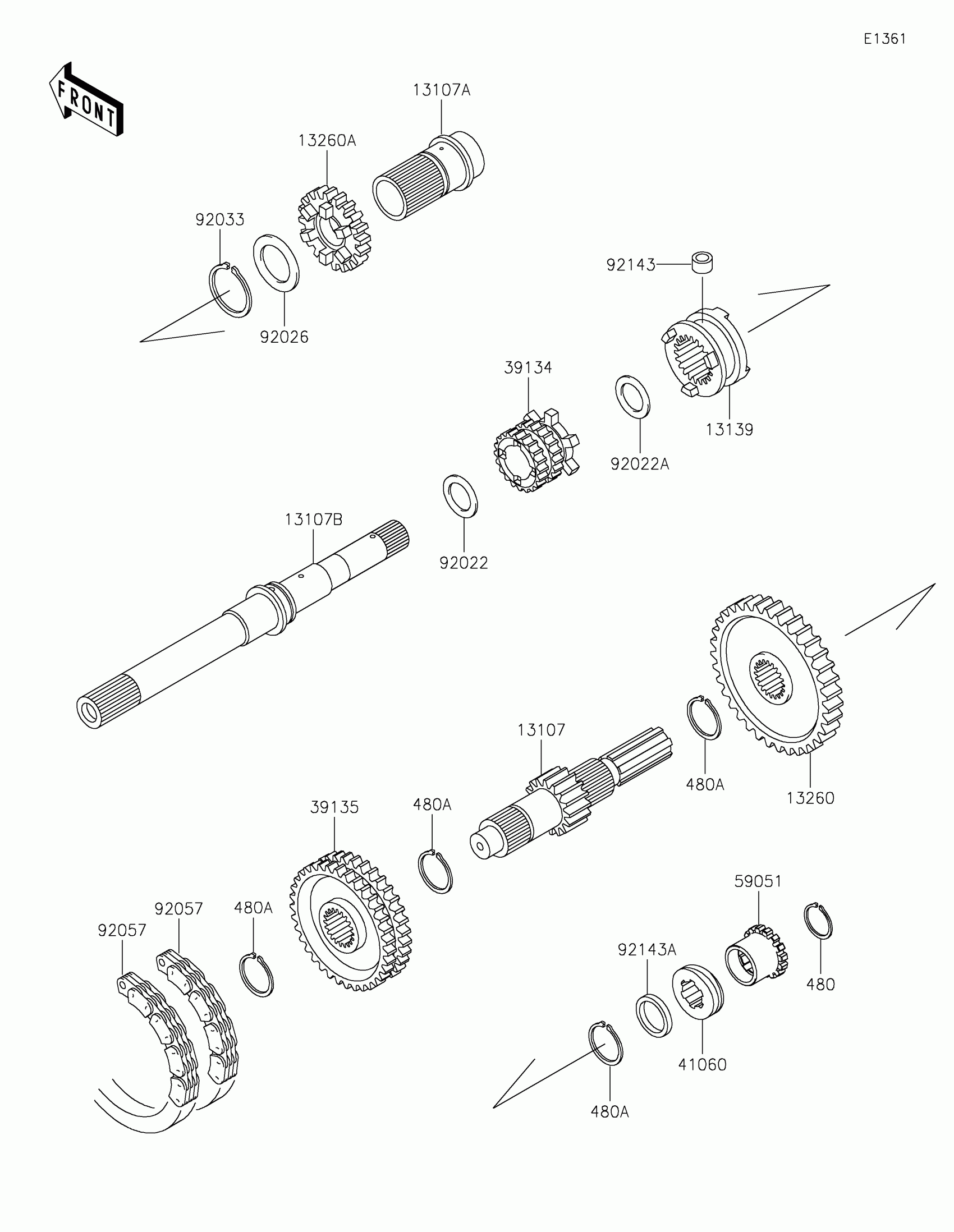

Kawasaki MULE 4000 TRANS™ Transmission Diagram

Description

Price

13107

SHAFT,COUNTER

13107-0191

$273.63

13107A

SHAFT,INPUT OUTER

13107-1315

$137.93

13107B

SHAFT,INPUT

13107-1471

$303.86

13139

SHIFTER,FR/RR

13139-1072

$94.90

13260

GEAR,OUTPUT REVERSE,51T

13260-1288

$166.77

13260A

GEAR,INPUT 28T

13260-1462

$137.41

39134

SPROCKET-DRIVE,20T

39134-1055

$120.45

39135

SPROCKET-DRIVEN,41T

39135-1055

$142.88

41060

GEAR-METER SCREW

41060-1147

$37.81

59051

GEAR-SPUR,15T

59051-0086

$68.99

92022

WASHER,25.3X33X1

92022-1109

$5.96

92022A

WASHER,22.3X33X1.0

92022-1573

$5.00

92026

SPACER,35.3X44X0.5

92026-1375

$7.33

92033

RING-SNAP

92033-1269

$7.98

92057

CHAIN,REVERSE,81RH2520,54L

92057-1364

$44.90

92143

COLLAR,8X14X10.5

92143-1497

$4.18

92143A

COLLAR,25X32X4.5

92143-1597

$13.44

480

CIRCLIP-TYPE-C,25MM

480J2500

$2.03

480A

CIRCLIP-TYPE-C,30MM

480J3000

$6.22
