Description

Price

11052

BRACKET,SHIFT CONTROL

11052-1263

$65.89

13070

GUIDE

13070-1363

$9.53

13168

LEVER,DIFF MODE CONTROL

13168-1428

$28.83

13168A

LEVER,SHIFT

13168-1719

$44.33

21083

ARM

21083-1151

$38.64

21083A

ARM

21083-1152

$37.46

21083B

ARM

21083-1155

$47.36

21083C

ARM

21083-1162

$23.47

39111

ROD-TIE

39111-1169

$54.69

46075

GRIP,SHIFT LEVER

46075-0054

$32.44

46075A

GRIP,UPP

46075-1085

$9.37

46075B

GRIP,LWR

46075-1086

$12.95

92015

NUT,LOCK,FLANGED,6MM

92015-1675

$4.31

92022

WASHER,10.5X26X2.3

92022-044

$3.92

92027

COLLAR

92027-1987

$2.46

92028

BUSHING

92028-1507

$5.25

92043

PIN,FOOTRST STEP FIT

92043-1069

$6.22

92081

SPRING

92081-1714

$4.26

92081A

SPRING

92081-1847

$2.24

92144

SPRING

92144-1510

$6.41

92145

SPRING

92145-0073

$2.78

92145A

SPRING

92145-1326

$5.64

92151

BOLT,6MM

92151-1746

$10.30

92151A

BOLT,6MM

92151-1747

$9.35

92160

DAMPER

92160-3754

$3.09

130

BOLT-FLANGED,6X14

130AB0614

$2.49

220

SCREW-PAN-CROS,5X14

220AB0514

$1.81

315

NUT-HEX-FINE

315BB1000

$4.69

482

CIRCLIP-TYPE-E,8MM

482EA8000

$0.68

554

PIN-SNAP,10MM

554DA1000

$1.36

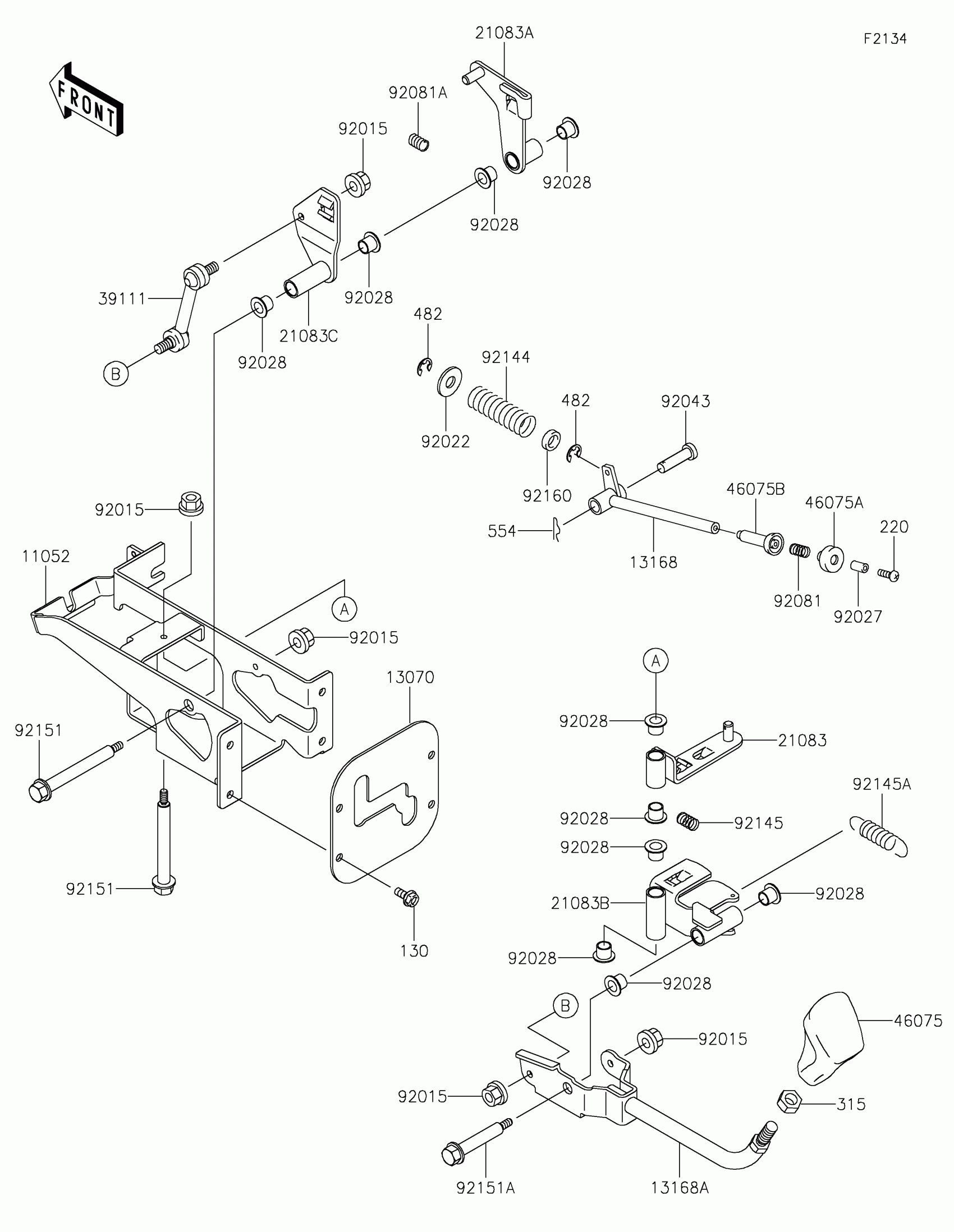

Kawasaki MULE 4000 TRANS™ Shift Lever(s) Diagram

BRACKET,SHIFT CONTROL

GUIDE

LEVER,DIFF MODE CONTROL

LEVER,SHIFT

ARM

ARM

ARM

ARM

ROD-TIE

GRIP,SHIFT LEVER

GRIP,UPP

GRIP,LWR

NUT,LOCK,FLANGED,6MM

WASHER,10.5X26X2.3

COLLAR

BUSHING

PIN,FOOTRST STEP FIT

SPRING

SPRING

SPRING

SPRING

SPRING

BOLT,6MM

BOLT,6MM

DAMPER

BOLT-FLANGED,6X14

SCREW-PAN-CROS,5X14

NUT-HEX-FINE

CIRCLIP-TYPE-E,8MM

PIN-SNAP,10MM
