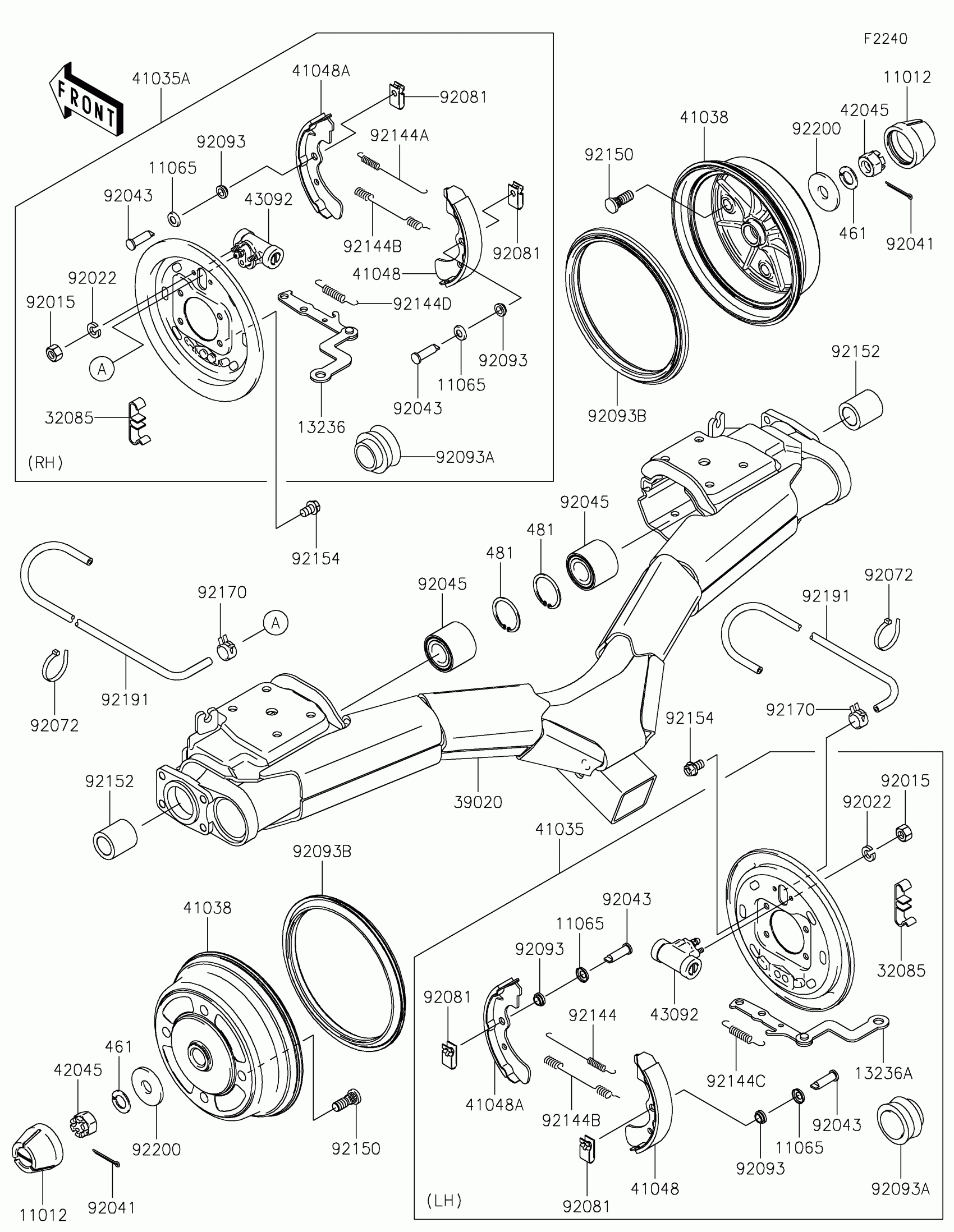

Kawasaki MULE 4000 TRANS™ Rear Hubs/Brakes Diagram

#

Description
Price

11012

CAP,WHEEL

11012-1969

$5.65

11065

CAP

11065-1175

$4.87

13236

LEVER-COMP,RR BRAKE PANEL,RH

13236-1355

$35.38

13236A

LEVER-COMP,RR BRAKE PANEL,LH

13236-1356

$34.87

32085

STOPPER,REAR BRAKE LEVER

32085-1298

$11.07

39020

BRACKET-COMP-REAR SUSP

39020-0005

$763.30

41035

PANEL-ASSY-BRAKE,RR,LH

41035-7506

$502.19

41035A

PANEL-ASSY-BRAKE,RR,RH

41035-7508

$502.19

41038

DRUM,REAR BRAKE

41038-7502

$262.76

41048

SHOE-BRAKE

41048-7502

$22.70

41048A

SHOE-BRAKE

41048-7503

$22.70

42045

NUT,CASTLE,18MM

42045-018

$9.23

43092

CYLINDER,REAR WHEEL

43092-1053

$90.98

92015

NUT,6MM

92015-1729

$2.78

92022

WASHER,SPRING,6MM

92022-1951

$2.78

92041

COTTER,4.0X35

92041-1053

$3.92

92043

PIN

92043-1636

$4.20

92045

BEARING-BALL,25BWD02CA68

92045-0107

$80.76

92072

BAND,L=123

92072-030

$5.00

92081

SPRING,SHOE CLAMP

92081-1904

$8.03

92093

SEAL

92093-1532

$8.60

92093A

SEAL

92093-1533

$13.63

92093B

SEAL,BS184.8X13.5ZS

92093-1543

$112.98

92144

SPRING,BRAKE

92144-1299

$8.30

92144A

SPRING,BRAKE

92144-1300

$8.30

92144B

SPRING,BRAKE

92144-1301

$8.30

92144C

SPRING,ROD,LH

92144-1302

$8.30

92144D

SPRING,ROD,RH

92144-1303

$7.60

92150

BOLT

92150-1366

$8.05

92152

COLLAR,25.1X38X40.8

92152-1276

$28.89

92154

BOLT,FLANGED,10X16

92154-0803

$3.58

92170

CLAMP

92170-2042

$1.30

92191

TUBE,4.7X9.5X1100

92191-1525

$7.87

92200

WASHER,18.5X52X4.5

92200-1474

$8.10

461

WASHER-SPRING,18MM

461DA1800

$2.91

481

CIRCLIP-TYPE-C,52MM

481J5200

$4.96
