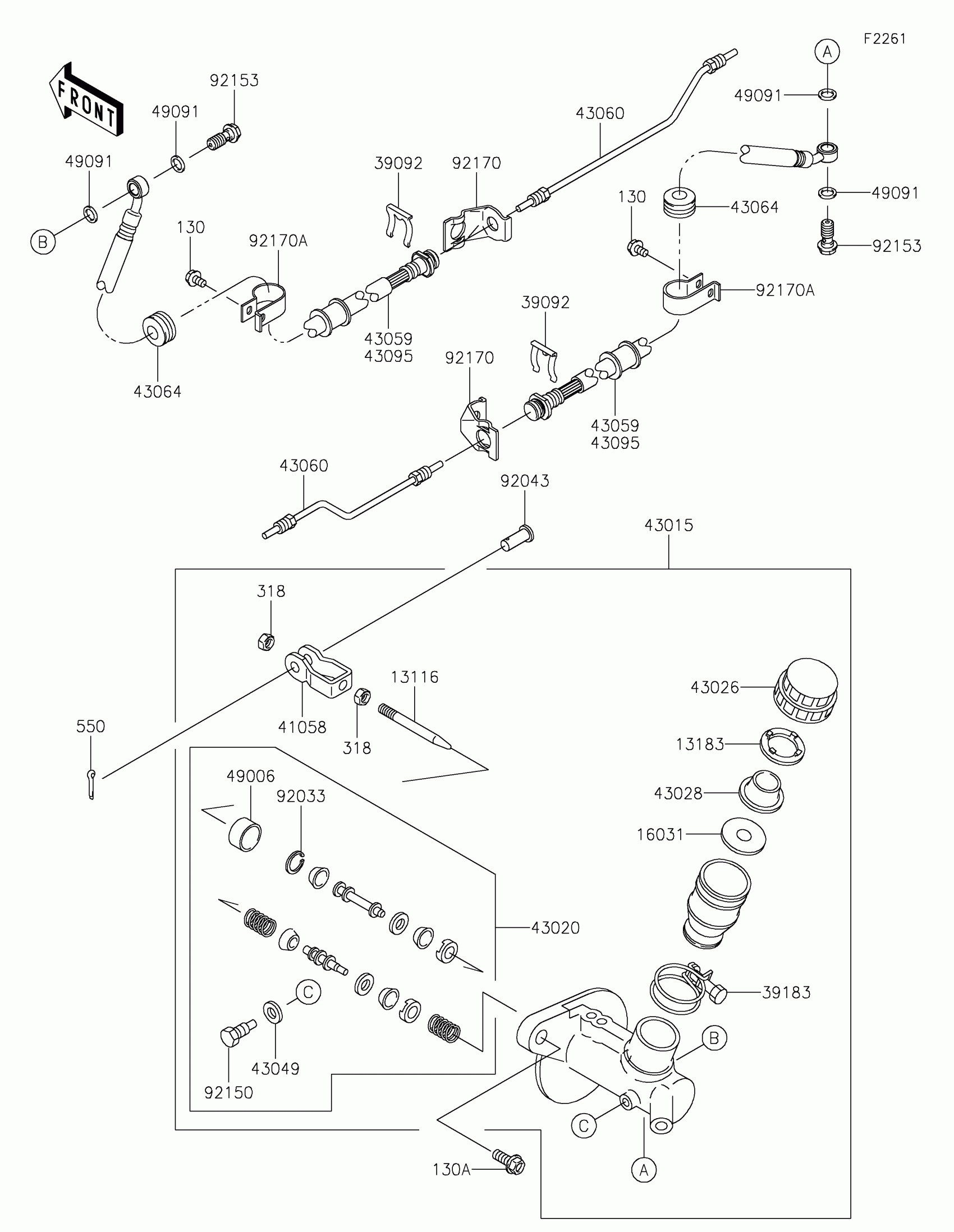

Kawasaki MULE 4000 TRANS™ Master Cylinder Diagram

Description

Price

13116

ROD-PUSH

13116-1134

$33.65

13183

PLATE

13183-1306

$4.39

16031

FLOAT

16031-1069

$7.60

39092

PIN-HAIR

39092-1052

$7.95

39183

BAND-ASSY

39183-1055

$11.07

41058

RODEND-BRAKE

41058-1053

$20.12

43015

CYLINDER-ASSY-MASTER

43015-1682

$334.41

43020

PISTON-COMP-BRAKE

43020-1124

$77.01

43026

CAP-BRAKE

43026-1067

$26.91

43028

DIAPHRAGM

43028-1078

$15.87

43049

PACKING

43049-1065

$2.76

43059

HOSE-BRAKE,FR

43059-1489

$81.65

43060

PIPE-BRAKE,FR

43060-1082

$24.57

43064

GROMMET,HOSE CLAMP

43064-007

$5.52

43095

HOSE-BRAKE,FR

43095-1608

$81.65

49006

BOOT

49006-1245

$7.60

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$2.15

92033

RING-SNAP

92033-1255

$3.54

92043

92043-1039

$9.91

92150

BOLT,STOP

92150-1165

$3.57

92153

BOLT,OIL,L=23

92153-1419

$3.90

92170

CLAMP,BRAKE PIPE

92170-1093

$7.33

92170A

CLAMP,HOSE

92170-1173

$8.38

130

BOLT-FLANGED,6X10

130AA0610

$0.49

130A

BOLT-FLANGED,8X20

130CA0820

$1.71

318

NUT-HEX-SMALL,8MM

318BA0800

$1.34

550

PIN-COTTER,2.5X18

550AA2518

$0.59
