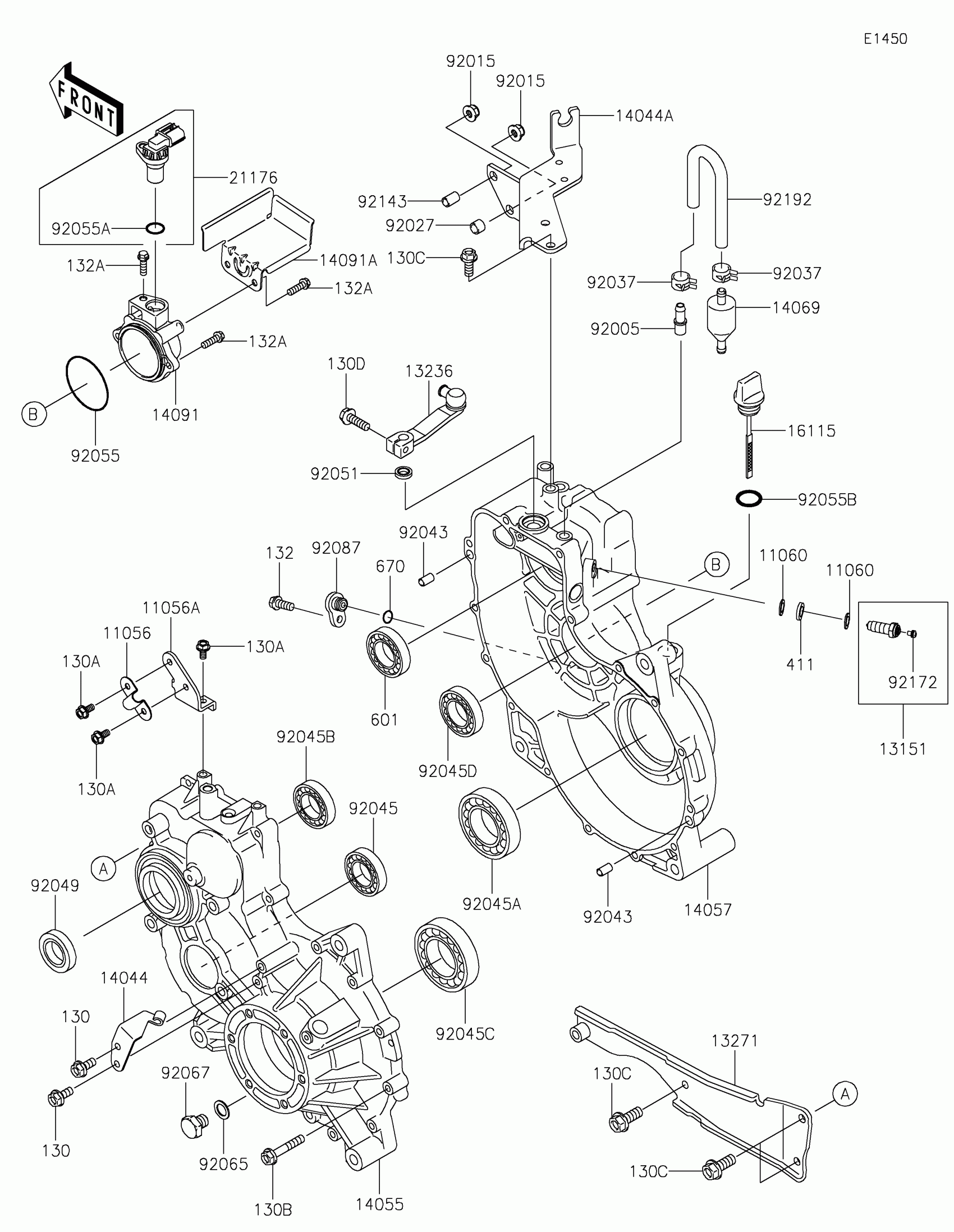

Kawasaki MULE 4000 TRANS™ Gear Box Diagram

#

Description
Price

11056

BRACKET,OIL PIPE

11056-4139

$5.51

11056A

BRACKET,OIL PIPE

11056-4140

$12.14

11060

GASKET

11060-1966

$1.86

13151

SWITCH-COMP

13151-1093

$45.32

13236

LEVER-COMP

13236-1372

$52.90

13271

PLATE

13271-1604

$44.26

14044

HOLDER-CABLE

14044-0003

$13.00

14044A

HOLDER-CABLE

14044-1098

$57.54

14055

CASE-GEAR,LH

14055-0035

$304.25

14057

CASE-COMP-GEAR,RH

14057-0012

$267.15

14069

BREATHER

14069-1051

$7.76

14091

COVER,COUNTER SHAFT

14091-0932

$60.57

14091A

COVER,SENSOR

14091-0933

$15.34

16115

CAP-OIL FILLER

16115-1060

$11.66

21176

SENSOR,SPEED

21176-1104

$105.94

92005

FITTING,BREATHER

92005-1127

$16.10

92015

NUT,8MM

92015-1432

$4.93

92027

COLLAR,8.8X12X9

92027-1568

$1.41

92037

CLAMP,TUBE

92037-1505

$3.63

92043

PIN,6.2X8X14

92043-1263

$0.46

92045

BEARING-BALL,TMB304CCM

92045-1142

$35.98

92045A

BEARING-BALL

92045-1162

$46.25

92045B

BEARING-BALL,62/28

92045-1207

$14.34

92045C

BEARING-BALL,6210CM

92045-1213

$49.04

92045D

BEARING-BALL,TMB205JR2

92045-1285

$22.38

92049

SEAL-OIL,TC28X47X7

92049-1297

$11.31

92051

SEAL-OIL,TB13225.5

92051-005

$5.91

92055

RING-O,55MM

92055-1120

$4.18

92055A

RING-O

92055-1718

$2.00

92055B

RING-O,20X3

92055-2185

$0.84

92065

GASKET,10.5X16X1

92065-058

$3.03

92067

PLUG,DRAIN,10X12

92067-001

$3.36

92087

BUSHING-METER GEAR

92087-1058

$7.88

92143

COLLAR,8.5X15X9

92143-1642

$4.66

92172

SCREW,4X6

92172-0717

$1.66

92192

TUBE

92192-1643

$5.27

130

BOLT-FLANGED,6X14

130AA0614

$0.54

130A

BOLT-FLANGED,6X12

130BA0612

$1.25

130B

BOLT-FLANGED,6X35

130BA0635

$0.78

130C

BOLT-FLANGED,8X20

130BA0820

$3.04

130D

BOLT-FLANGED,6X20

130CA0620

$1.22

132

BOLT-FLANGED-SMALL,6X14

132BB0614

$1.77

132A

BOLT-FLANGED-SMALL,6X20

132BD0620

$3.14

411

WASHER-PLAIN,10MM

411AA1000

$0.81

601

BEARING-BALL,#6007C3

601B6007

$24.07

670

O RING,10MM

670D1510

$3.57
