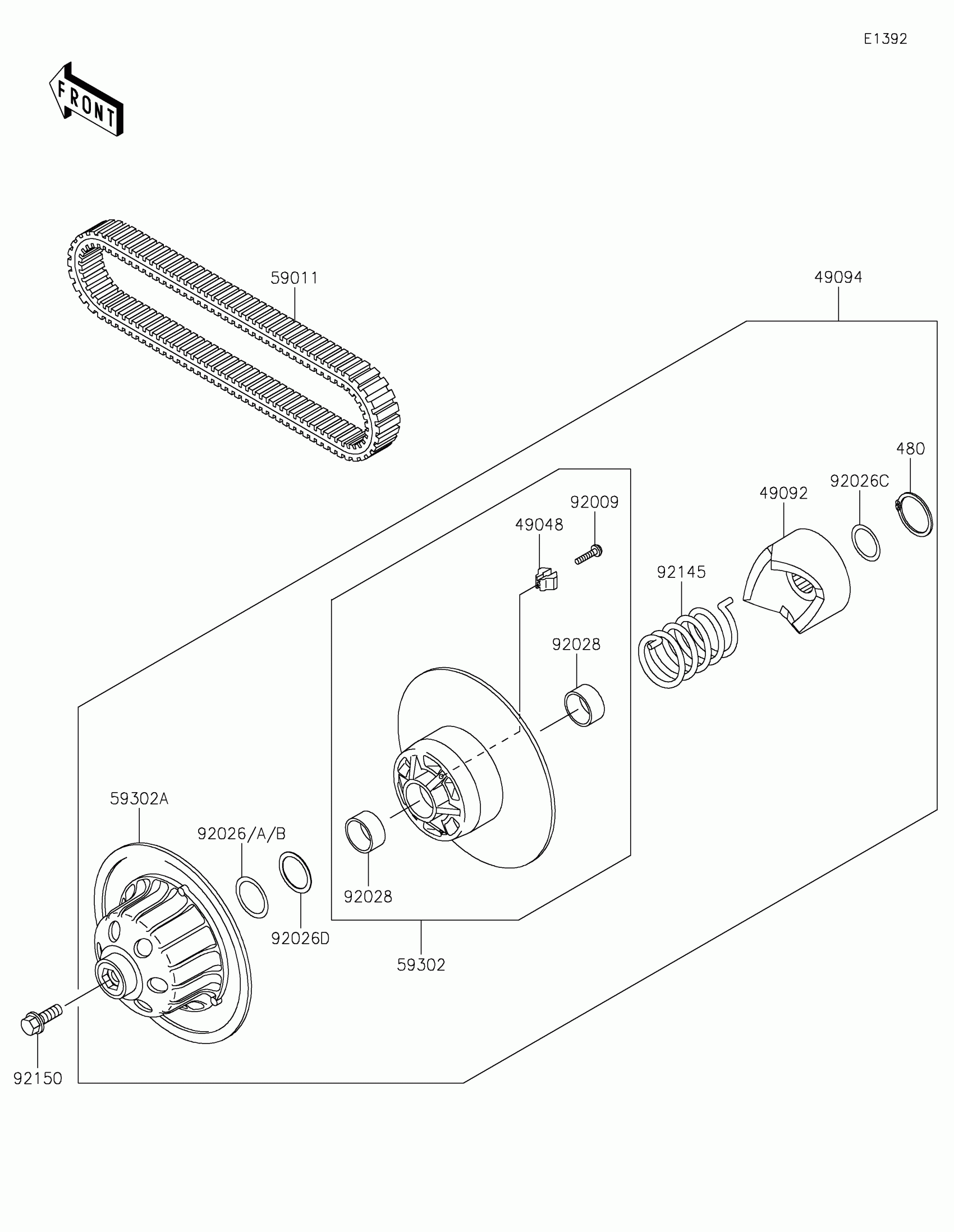

Kawasaki MULE 4000 TRANS™ Driven Converter/Drive Belt Diagram

Description

Price

49048

SHOE

49048-1060

$4.67

49092

RAMP

49092-1068

$47.81

49094

CONVERTER-ASSY-DRIVEN

49094-0045

$636.41

59011

BELT,CONVERTER

59011-1077

$109.76

59302

SHEAVE-COMP,MOVABLE

59302-0031

$342.79

59302A

SHEAVE-COMP

59302-0032

$373.41

92009

SCREW,SHOE

92009-1849

$1.76

92026

SPACER,39X50X0.50

92026-1507

Unavailable

92026A

SPACER,39X50X0.60

92026-1508

Unavailable

92026B

SPACER,39X50X0.80

92026-1510

Unavailable

92026C

SPACER,34X44X0.80

92026-1521

$3.81

92026D

SPACER,39X49.5X1.0

92026-1603

$5.82

92028

BUSHING

92028-1864

$6.78

92145

SPRING

92145-1404

$10.17

92150

BOLT,12X35

92150-1009

$5.86

480

CIRCLIP

480J3400

$1.61
