Description

Price

11012

CAP,WHEEL

11012-1969

$4.27

11065

CAP

11065-1175

$3.71

14087

RETAINER-ASSY,RH

14087-1001

$23.00

14087A

RETAINER-ASSY,LH

14087-1002

$23.00

41035

PANEL-ASSY-BRAKE,FR,LH

41035-7502

$478.71

41035A

PANEL-ASSY-BRAKE,FR,RH

41035-7504

$478.71

41038

DRUM,FRONT BRAKE

41038-7501

$268.02

41048

SHOE-BRAKE

41048-7501

$17.55

41068

AXLE,FR

41068-1296

$129.70

42045

NUT,CASTLE,18MM

42045-018

$7.01

43092

CYLINDER,FRONT BRAKE PANEL

43092-1054

$136.85

92041

COTTER,4.0X35

92041-1053

$2.99

92043

PIN

92043-1636

$3.21

92072

BAND,L=123

92072-030

$3.81

92081

SPRING,SHOE CLAMP

92081-1904

$6.13

92093

SEAL

92093-1532

$6.56

92093A

SEAL,BS184.8X13.5ZS

92093-1543

$100.83

92144

SPRING,BRAKE

92144-1300

$6.33

92144A

SPRING,BRAKE

92144-1301

$6.33

92150

BOLT,FLANGED,6X12

92150-1166

$3.35

92150A

BOLT

92150-1366

$6.15

92154

BOLT,FLANGED,10X16

92154-0803

$2.80

92170

CLAMP

92170-2042

$1.00

92171

CLAMP,L=60

92171-0652

$1.85

92180

SHIM,25.2X32.5X0.6

92180-1353

$1.62

92191

TUBE,4.7X9.5X1100

92191-1525

$7.71

92200

WASHER,18.5X52X4.5

92200-1474

$6.18

461

WASHER-SPRING,18MM

461DA1800

$2.03

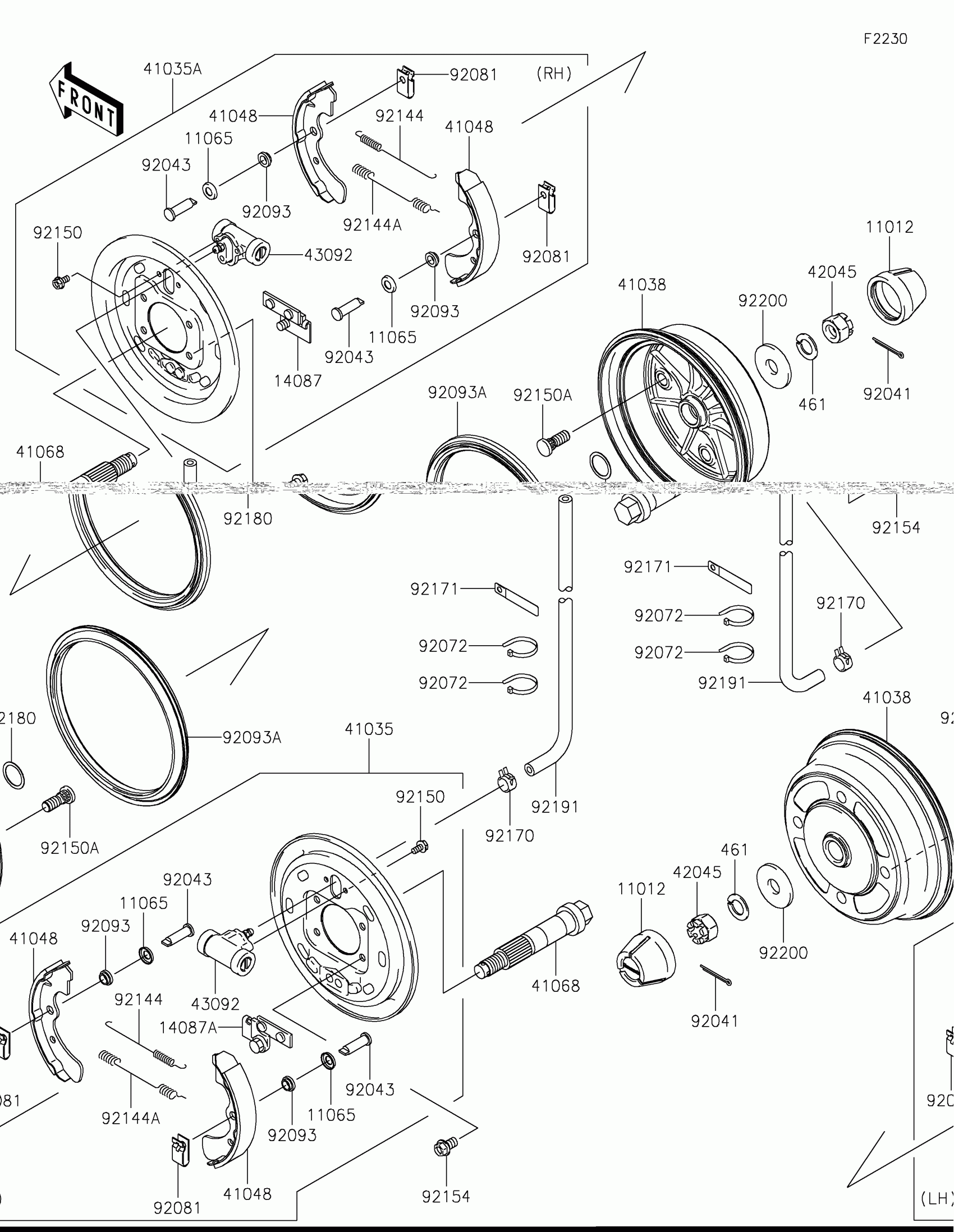

Kawasaki MULE 4000 TRANS™ Front Hubs/Brakes Diagram

CAP,WHEEL

CAP

RETAINER-ASSY,RH

RETAINER-ASSY,LH

PANEL-ASSY-BRAKE,FR,LH

PANEL-ASSY-BRAKE,FR,RH

DRUM,FRONT BRAKE

SHOE-BRAKE

AXLE,FR

NUT,CASTLE,18MM

CYLINDER,FRONT BRAKE PANEL

COTTER,4.0X35

PIN

BAND,L=123

SPRING,SHOE CLAMP

SEAL

SEAL,BS184.8X13.5ZS

SPRING,BRAKE

SPRING,BRAKE

BOLT,FLANGED,6X12

BOLT

BOLT,FLANGED,10X16

CLAMP

CLAMP,L=60

SHIM,25.2X32.5X0.6

TUBE,4.7X9.5X1100

WASHER,18.5X52X4.5

WASHER-SPRING,18MM
