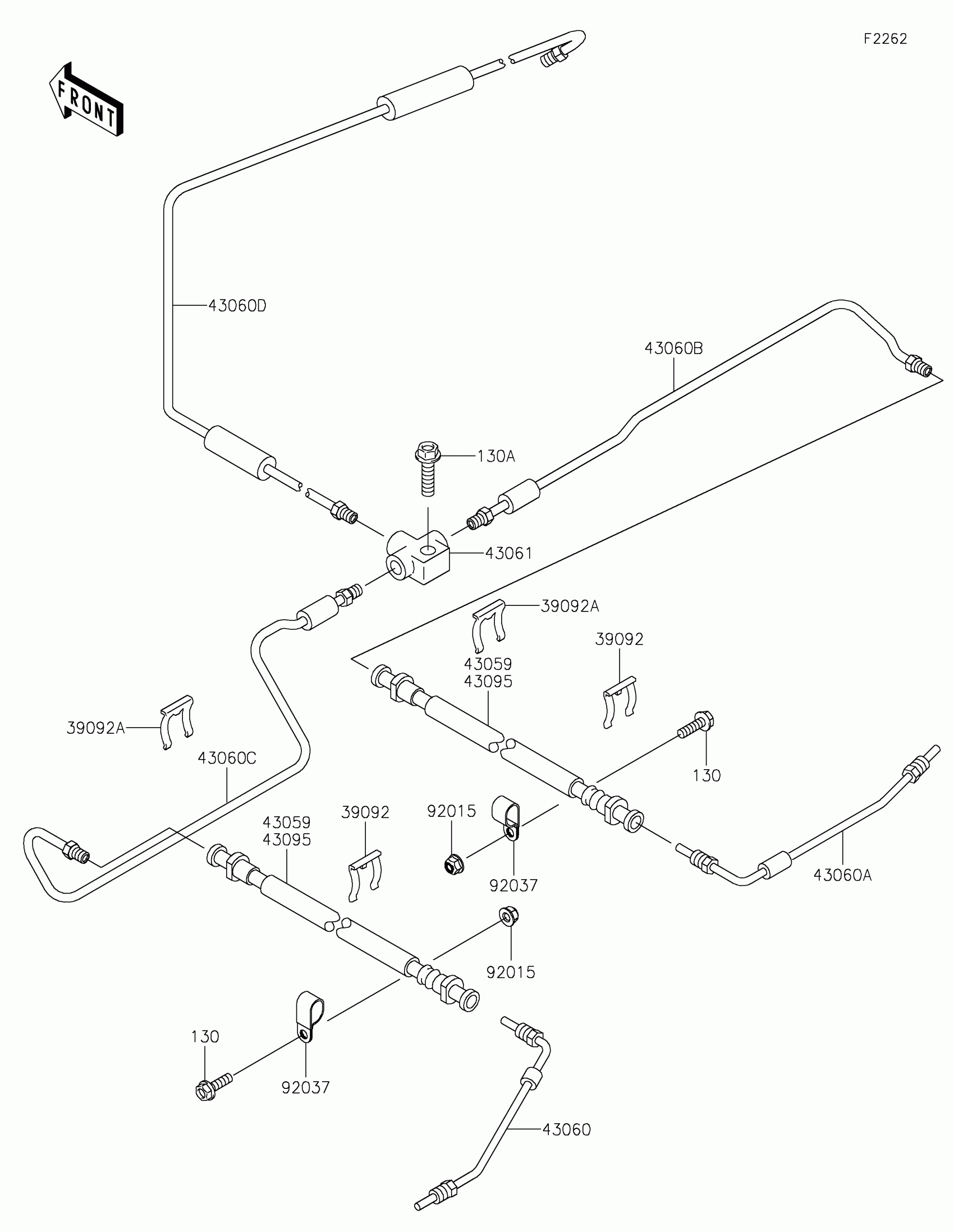

Kawasaki MULE 4000 TRANS™ Brake Piping Diagram

Description

Price

39092

PIN-HAIR

39092-1052

$6.33

39092A

PIN-HAIR

39092-1059

$3.31

43059

HOSE-BRAKE,RR

43059-1490

$13.79

43060

PIPE-BRAKE,RR,LH

43060-1083

$19.14

43060A

PIPE-BRAKE,RR,RH

43060-1084

$24.26

43060B

PIPE-BRAKE,MIDDLE,RH

43060-7503

$26.78

43060C

PIPE-BRAKE,MIDDLE,LH

43060-7504

$28.60

43060D

PIPE-BRAKE,FR

43060-7505

$46.04

43061

JOINT-BRAKE

43061-1063

$36.46

43095

HOSE-BRAKE,RR

43095-1609

$13.79

92015

NUT,LOCK,FLANGED,6MM

92015-1675

$3.43

92037

CLAMP

92037-1608

$6.44

130

BOLT-FLANGED,6X20

130AA0620

$1.49

130A

BOLT-FLANGED,8X30

130CA0830

$1.00
