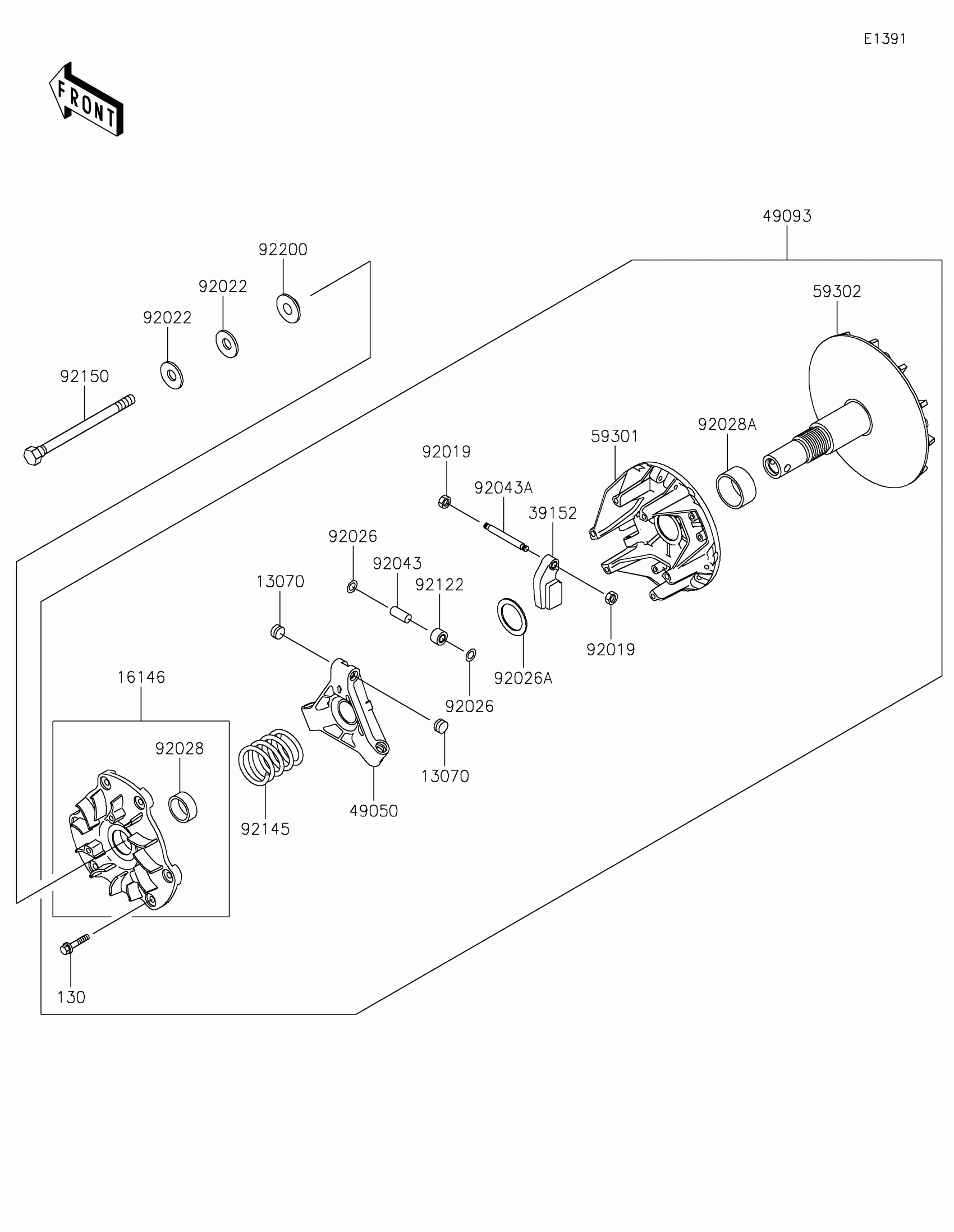

Kawasaki MULE 4000 TRANS™ Drive Converter Diagram

Description

Price

13070

GUIDE

13070-1330

$27.61

16146

COVER-ASSY

16146-1219

$143.09

39152

WEIGHT-RAMP

39152-1078

$47.63

49050

SPIDER

49050-0018

$120.15

49093

CONVERTER-ASSY-DRIVE

49093-0025

$1,006.47

59301

SHEAVE-MOVABLE

59301-0016

$237.25

59302

SHEAVE-COMP

59302-1085

$319.10

92019

NUT,LOCK,6MM

92019-008

$4.26

92022

WASHER,SPECIAL CONICAL

92022-1901

$6.57

92026

SPACER

92026-1512

$1.59

92026A

SPACER,32.3X44.3X3.6

92026-1591

$13.51

92028

BUSHING

92028-1861

$7.26

92028A

BUSHING

92028-1864

$8.90

92043

92043-1572

$3.94

92043A

92043-1573

$13.04

92122

ROLLER

92122-1204

$23.36

92145

SPRING,YELLOW PAINT

92145-0639

$30.20

92150

BOLT,12X163.5

92150-1008

$27.50

92200

WASHER

92200-1401

$16.64

130

BOLT-FLANGED,6X30

130CA0630

$2.49

Kawasaki MULE 4000 TRANS™ Drive Converter Diagram

GUIDE

COVER-ASSY

WEIGHT-RAMP

SPIDER

CONVERTER-ASSY-DRIVE

SHEAVE-MOVABLE

SHEAVE-COMP

NUT,LOCK,6MM

WASHER,SPECIAL CONICAL

SPACER

SPACER,32.3X44.3X3.6

BUSHING

BUSHING

PIN

PIN

ROLLER

SPRING,YELLOW PAINT

BOLT,12X163.5

WASHER

BOLT-FLANGED,6X30
