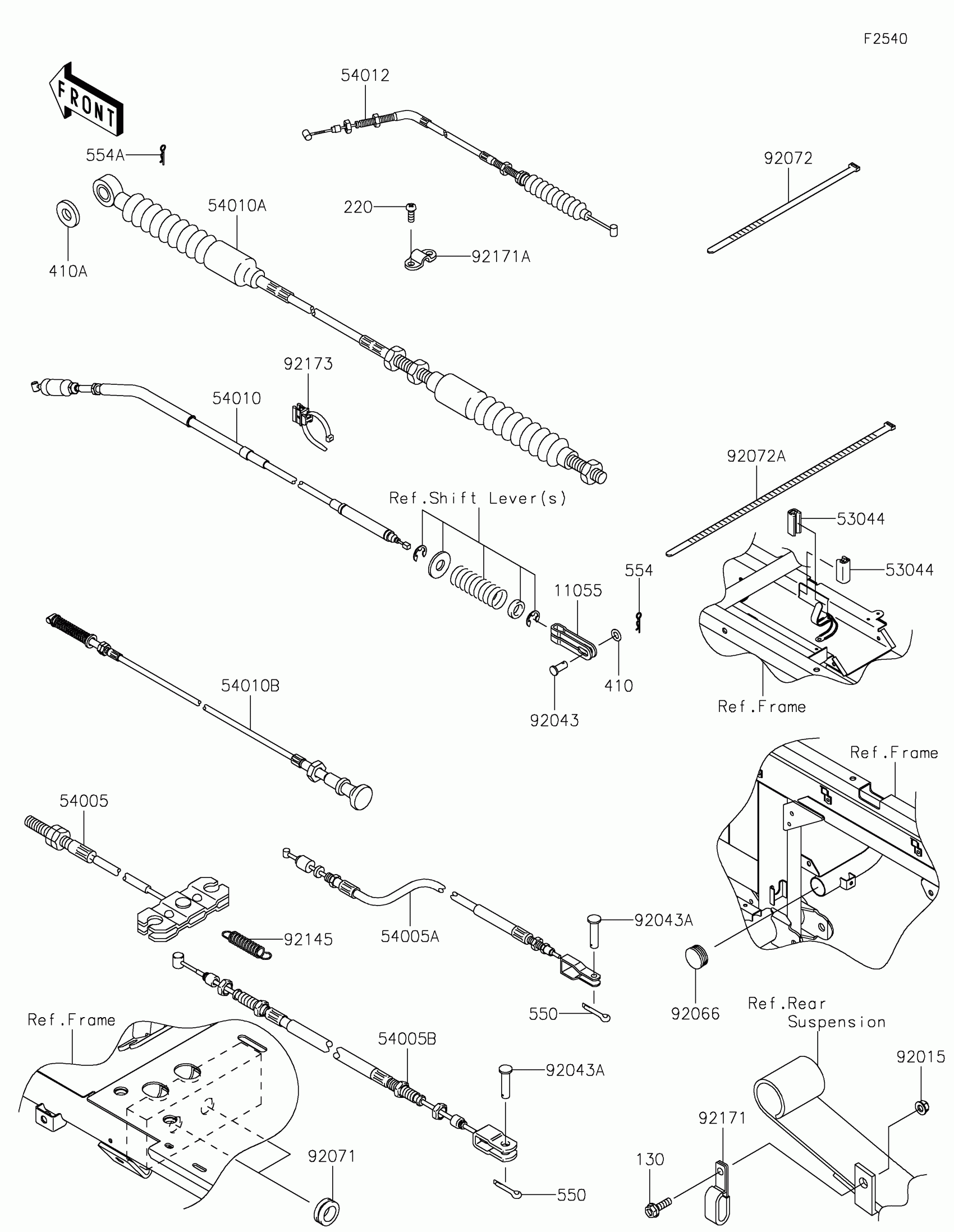

Kawasaki MULE 4000 TRANS™ Cables Diagram
#
Description
Price
11055
BRACKET,DIFF LOCK
11055-7505
$9.28
53044
TRIM,L=22
53044-7503
$7.83
54005
CABLE-BRAKE,PARKING,FR
54005-1198
$10.30
54005A
CABLE-BRAKE,PARKING,RR,RH
54005-7502
$35.05
54005B
CABLE-BRAKE,PARKING,RR,LH
54005-7503
$35.73
54010
CABLE,DIFF LOCK
54010-0111
$89.61
54010A
CABLE,SHIFT CONTROL
54010-0132
$165.39
54010B
CABLE,HOOD
54010-0600
$30.05
54012
CABLE-THROTTLE
54012-7505
$47.97
92015
NUT,LOCK,FLANGED,6MM
92015-1675
$4.31
92043
PIN,6X11
92043-092
$4.69
92043A
PIN
92043-1039
$9.91
92066
PLUG
92066-7503
$1.75
92071
GROMMET
92071-1027
Unavailable
92072
BAND,L=188
92072-1239
$1.73
92072A
BAND,L=368.3
92072-3872
$1.59
92145
SPRING
92145-7506
$9.34
92171
CLAMP,CABLE
92171-0176
$5.48
92171A
CLAMP
92171-1203
$2.58
92173
CLAMP,W/EDGE CLIP,DIA.6-45
92173-1827
$2.34
130
BOLT-FLANGED,6X20
130AA0620
$1.74
220
SCREW-PAN-CROS,5X14
220AA0514
$4.43
410
WASHER-PLAIN-SMALL
410AA0600
$1.31
410A
WASHER-PLAIN-SMALL,8MM
410AA0800
$0.96
550
PIN-COTTER,2.0X22
550AA2022
$2.51
554
PIN-SNAP,1.2X21.2
554DA0600
$0.95
554A
PIN-SNAP
554DA0800
$1.36
