2013 Kawasaki Mule™ 4000 Side Covers/chain Cover Diagram

← All diagrams

Find the part on the Side Covers/chain Cover diagram for your 2013 Kawasaki Mule™ 4000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

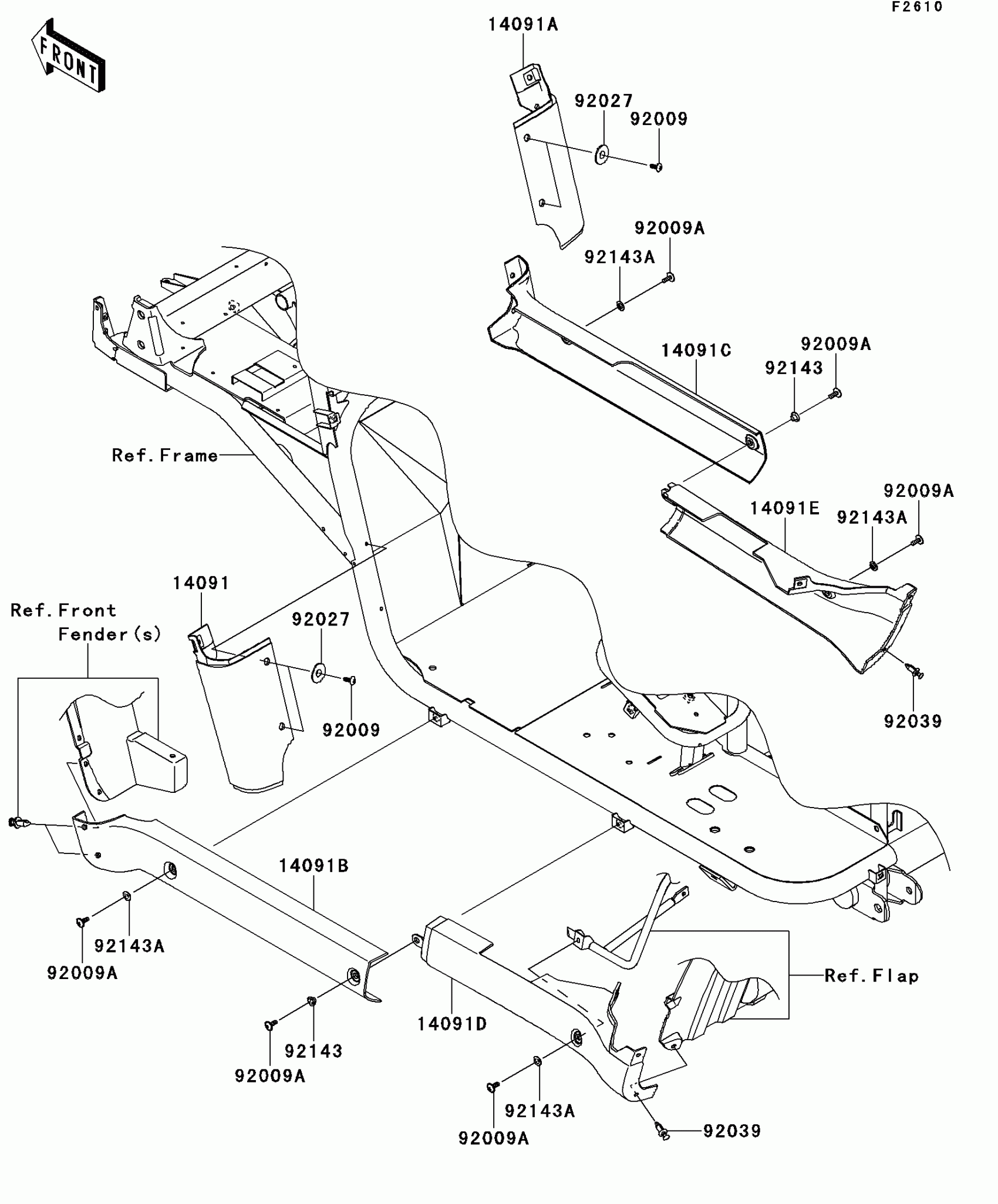

2013 Kawasaki Mule™ 4000 Side Covers/chain Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14091

COVER,FR FENDER,LWR,LH,F.BLACK

14091-0821-6Z

1
Out of stock

14091A

COVER,FR FENDER,LWR,RH,F.BLACK

14091-0822-6Z

1
Out of stock

14091B

COVER,SIDE STEP,FR,LH,F.BLACK

14091-0823-6Z

1
Out of stock

14091C

COVER,SIDE STEP,FR,RH,F.BLACK

14091-0824-6Z

1
Out of stock

14091D

COVER,SIDE STEP,RR,LH,F.BLACK

14091-0900-6Z

1
Out of stock

14091E

COVER,SIDE STEP,RR,RH,F.BLACK

14091-0901-6Z

1
Out of stock

92009

SCREW,TAPPING,6X16

92009-1166

1
Out of stock

92009A

SCREW,6X16

92009-1621

1
Out of stock

92027

COLLAR,L=4.7

92027-1964

1
Out of stock

92039

RIVET

92039-1229

1
Out of stock

92143

COLLAR

92143-1057

1
Out of stock

92143A

COLLAR

92143-1087

1
Out of stock
