2013 Kawasaki Mule™ 4000 Driven Converter/drive Belt Diagram

← All diagrams

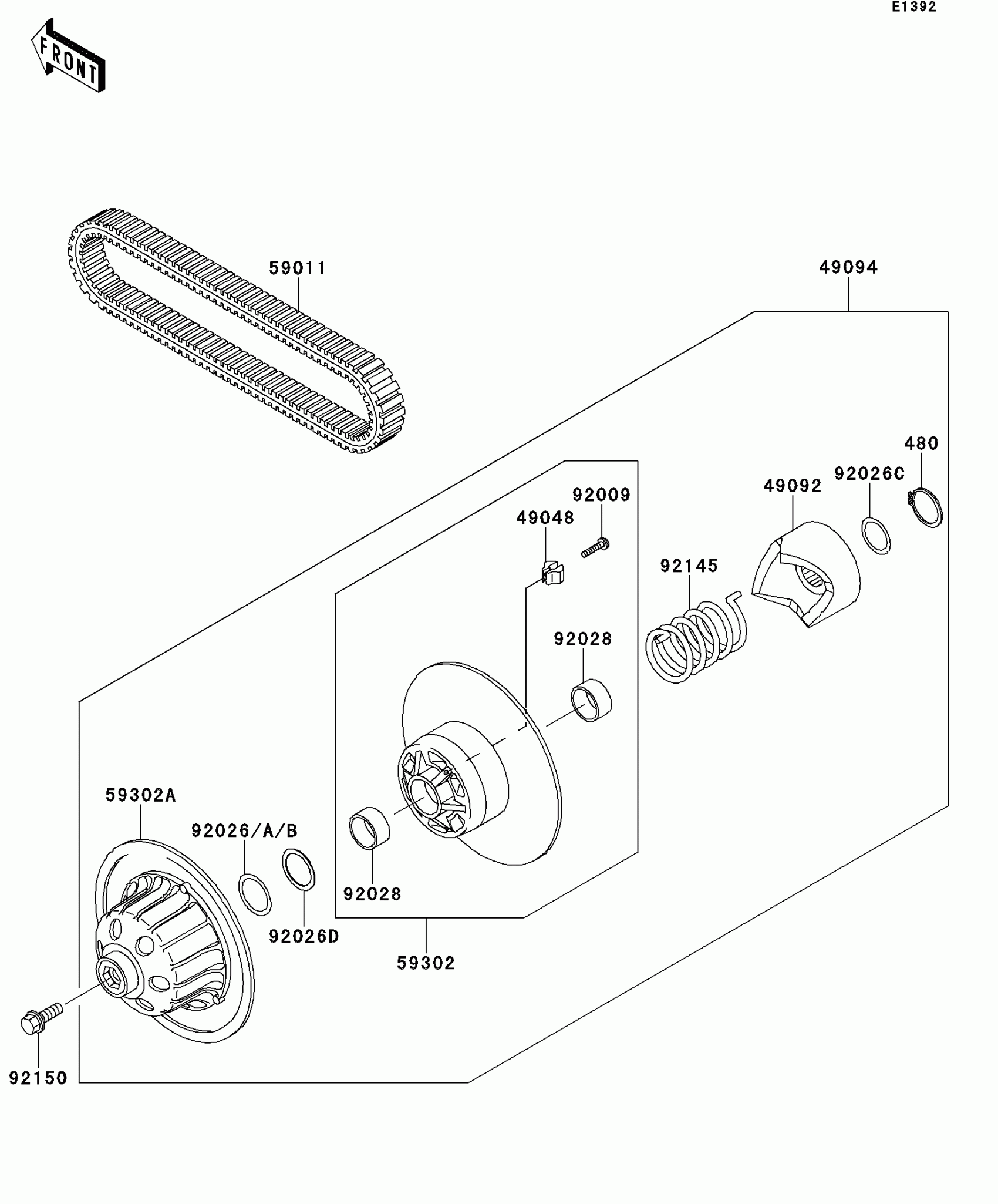

Find the part on the Driven Converter/drive Belt diagram for your 2013 Kawasaki Mule™ 4000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2013 Kawasaki Mule™ 4000 Driven Converter/drive Belt Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

49048

SHOE

49048-1060

1

$4.93

In stock

49092

RAMP

49092-1068

1

$48.95

In stock

49094

1

$673.26

In stock

59011

BELT,CONVERTER

59011-1077

1

$120.71

In stock

59302

SHEAVE-COMP,MOVABLE

59302-0031

1

$342.79

In stock

59302A

SHEAVE-COMP

59302-0032

1

$373.41

In stock

92009

SCREW,SHOE

92009-1849

1
Out of stock

92026

SPACER,39X50X0.50

92026-1507

—

$6.11

In stock

92026A

SPACER,39X50X0.60

92026-1508

—

$6.11

In stock

92026B

SPACER,39X50X0.80

92026-1510

—

$6.11

In stock

92026C

SPACER,34X44X0.80

92026-1521

1

$3.97

In stock

92026D

SPACER,39X49.5X1.0

92026-1603

1

$6.07

In stock

92028

BUSHING

92028-1864

1

$7.07

In stock

92145

SPRING

92145-1404

1

$10.59

In stock

92150

BOLT,12X35

92150-1009

1

$6.11

In stock

480

CIRCLIP

480J3400

1

$1.86

In stock
