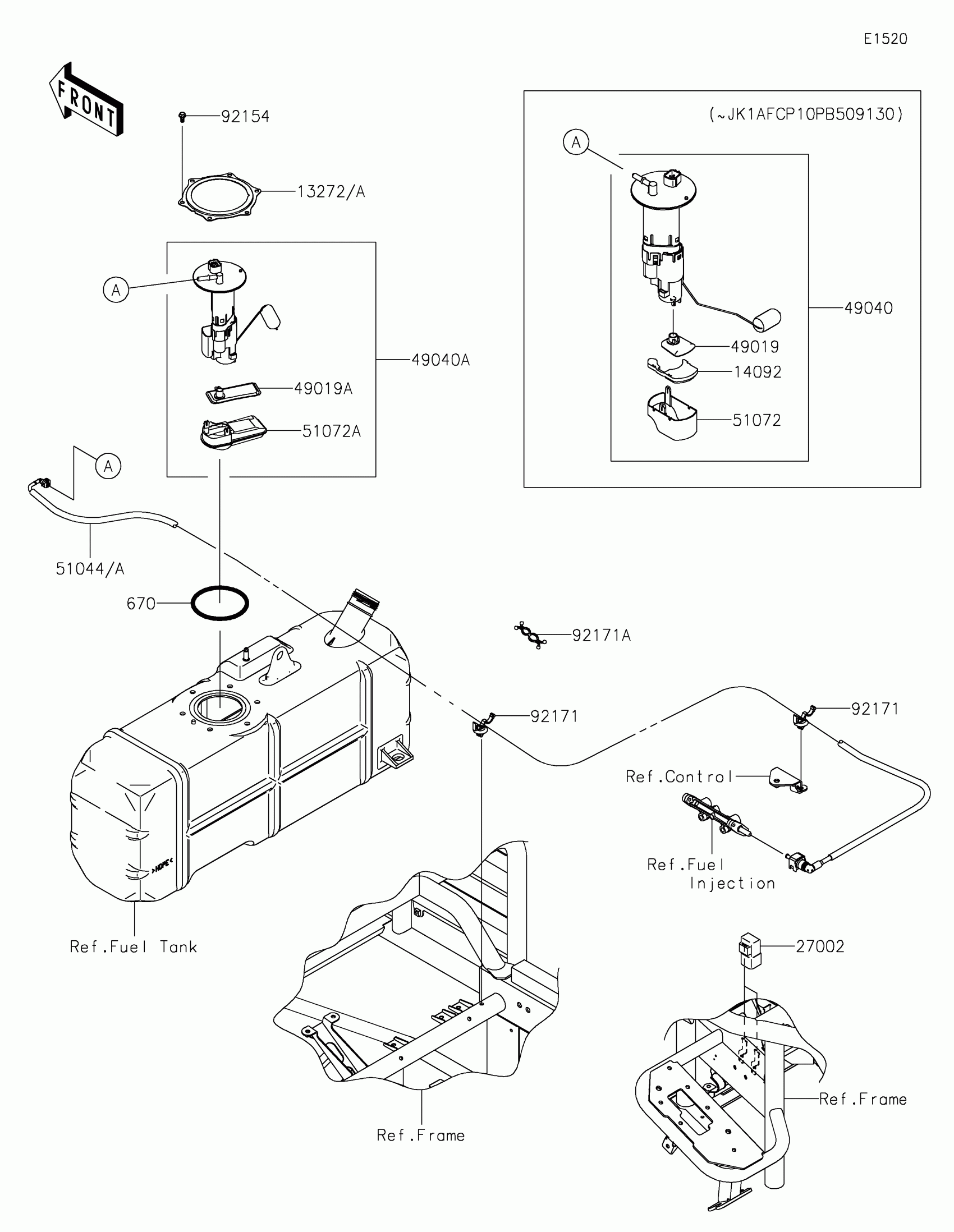

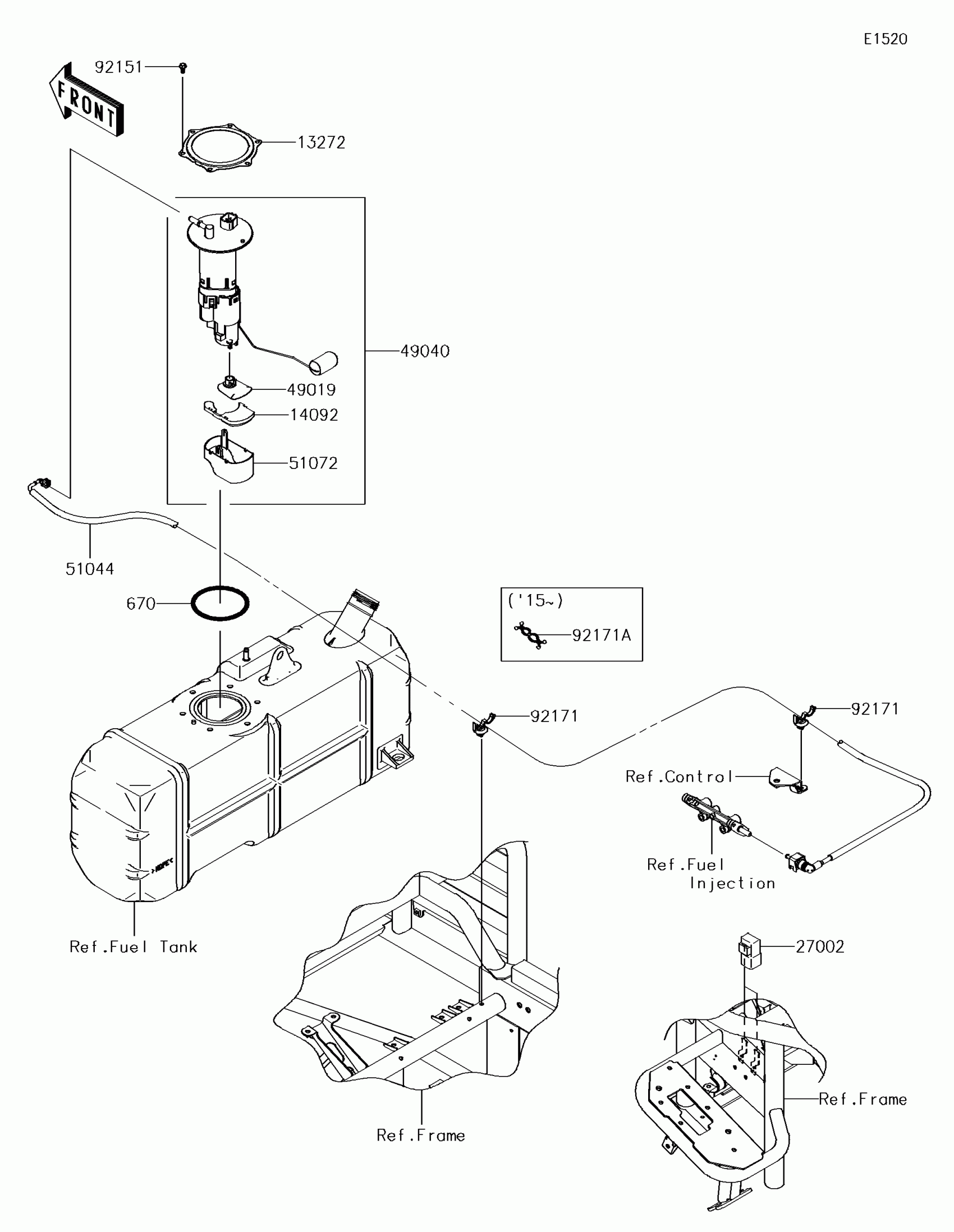

Kawasaki MULE™ 4000 Fuel Pump Diagram

Description

Price

13272

PLATE

13272-2501

$6.84

13272A

PLATE

13272-4226

$12.29

14092

COVER

14092-1044

$30.60

27002

RELAY-ASSY

27002-1088

$42.06

49019

FILTER-FUEL

49019-0013

$16.56

49019A

FILTER-FUEL

49019-0034

$29.07

49040

PUMP-FUEL

49040-0718

$824.04

49040A

PUMP-FUEL

49040-0830

$822.62

51044

TUBE-ASSY,FUEL

51044-0926

$149.55

51044A

TUBE-ASSY,FUEL

51044-1256

$212.57

51072

CHAMBER-FUEL

51072-0003

$46.00

51072A

CHAMBER-FUEL

51072-0008

$7.80

92154

BOLT,FUEL PUMP

92154-1326

$0.95

92171

CLAMP

92171-0453

$3.54

92171A

CLAMP

92171-0476

$3.90

670

O RING

670E5090

$30.75
