Description

Price

11048

BRACKET,REAR FRAME

11048-1245

$26.09

11055

BRACKET,STEERING GEAR

11055-1240

$10.61

32160

FRAME-COMP,RR

32160-0004

Unavailable

39112

RODEND-TIE,STEERING GEAR,LH

39112-1068

$96.05

39112A

RODEND-TIE,STEERING GEAR,RH

39112-1069

$96.05

39114

SHAFT-COMP-STRG

39114-0009

$319.63

39190

SHAFT-ASSY-STEERING

39190-0005

$231.78

39191

GEAR-ASSY-STEERING

39191-0016

Unavailable

46079

CONTACT,HORN SWITCH

46079-1063

$86.71

49006

BOOT,STEERING SHAFT,LWR

49006-1255

$34.90

92015

NUT,LOCK,10MM,BLACK

92015-1189

$7.34

92015A

NUT,POP,6MM,L=15

92015-1791

$4.69

92015B

NUT

92015-1864

$14.39

92022

WASHER,10.5X26X2.3,BLACK

92022-1396

$3.21

92072

BAND,L=188

92072-1239

$1.73

92150

BOLT,FLANGED,10X100

92150-1731

$18.15

92153

BOLT,SOCKET,10X23

92153-1269

$2.80

92160

DAMPER,STEERING GEAR

92160-1084

$31.96

92161

DAMPER

92161-0800

$9.61

92172

SCREW,6X14

92172-0004

$2.80

92200

WASHER,15X25X1.6

92200-0460

$3.71

92210

NUT,LOCK,FLANGED,10MM

92210-1139

$4.18

92210A

NUT,POP,6MM,L=15

92210-1397

$5.48

130

BOLT-FLANGED,8X20

130BA0820

$4.14

130A

BOLT-FLANGED,8X20

130BB0820

$0.84

130B

BOLT-FLANGED,10X30

130BB1030

$6.55

132

BOLT-FLANGED-SMALL,8X25

132BA0825

$4.12

132A

BOLT-FLANGED-SMALL,8X25

132BB0825

$4.12

224

SCREW-PAN-WP-CROS,5X8

224AA0508

$0.68

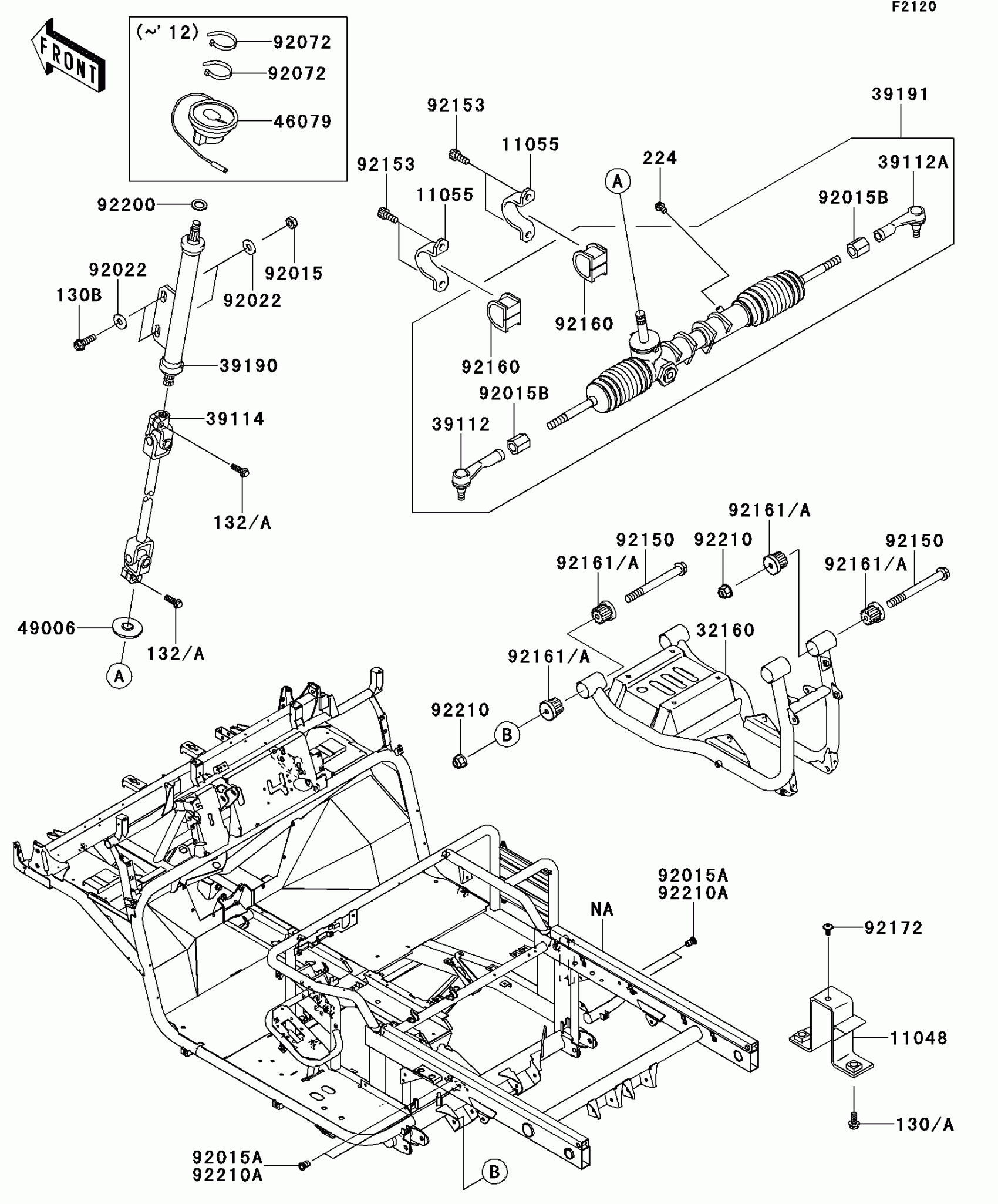

Kawasaki MULE™ 4000 Frame Diagram

BRACKET,REAR FRAME

BRACKET,STEERING GEAR

FRAME-COMP,RR

RODEND-TIE,STEERING GEAR,LH

RODEND-TIE,STEERING GEAR,RH

SHAFT-COMP-STRG

SHAFT-ASSY-STEERING

GEAR-ASSY-STEERING

CONTACT,HORN SWITCH

BOOT,STEERING SHAFT,LWR

NUT,LOCK,10MM,BLACK

NUT,POP,6MM,L=15

NUT

WASHER,10.5X26X2.3,BLACK

BAND,L=188

BOLT,FLANGED,10X100

BOLT,SOCKET,10X23

DAMPER,STEERING GEAR

DAMPER

SCREW,6X14

WASHER,15X25X1.6

NUT,LOCK,FLANGED,10MM

NUT,POP,6MM,L=15

BOLT-FLANGED,8X20

BOLT-FLANGED,8X20

BOLT-FLANGED,10X30

BOLT-FLANGED-SMALL,8X25

BOLT-FLANGED-SMALL,8X25

SCREW-PAN-WP-CROS,5X8
