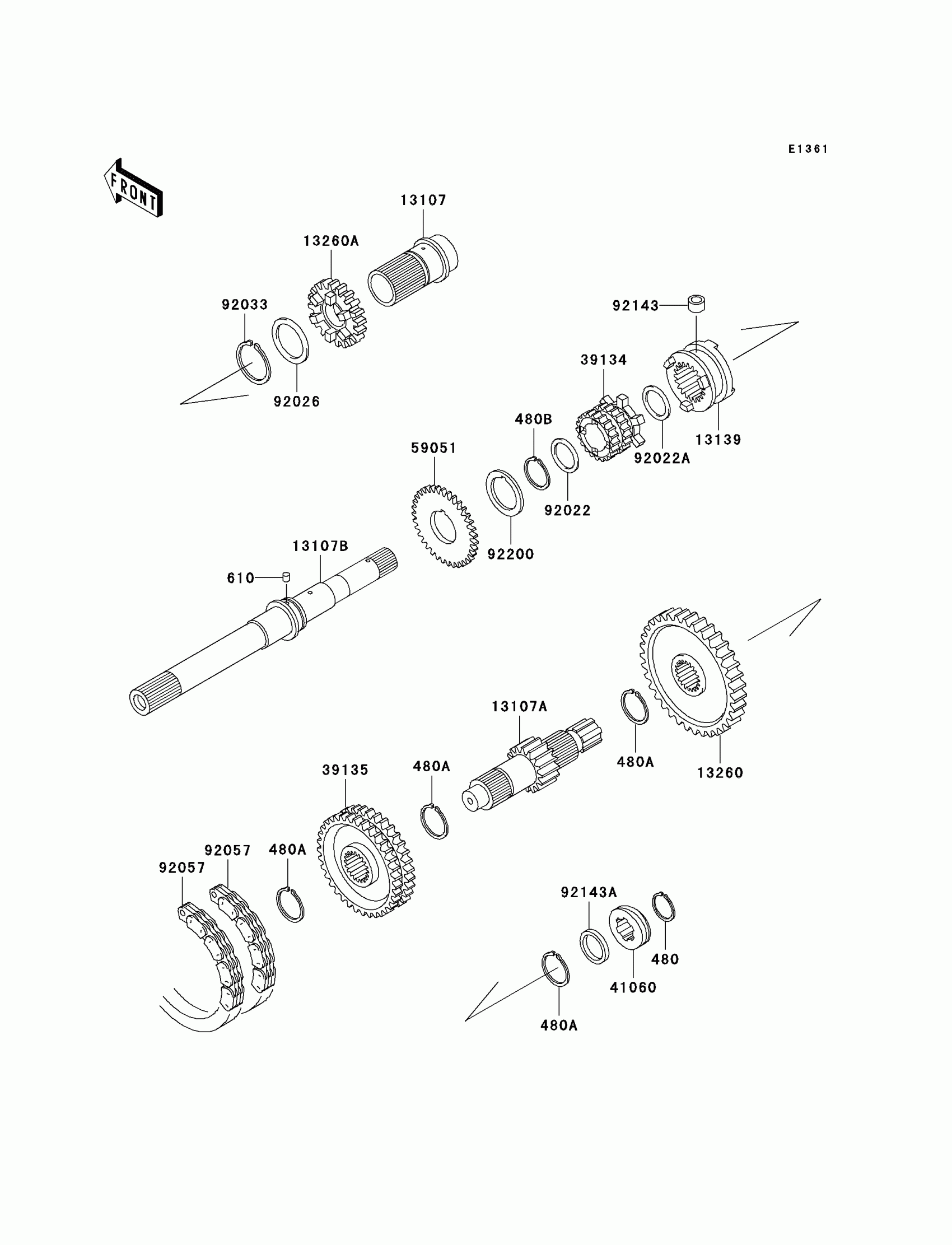

Find the part on the Transmission diagram for your 2007 Kawasaki Mule 3020 Turf, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Kawasaki Mule 3020 Turf Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

480

CIRCLIP-TYPE-C,25MM

480J2500

1
Out of stock

480A

CIRCLIP-TYPE-C,30MM

480J3000

1
Out of stock

480B

CIRCLIP-TYPE-C,32MM

480J3200

1
Out of stock

610

ROLLER

610A0505

1
Out of stock

13107

SHAFT,INPUT OUTER

13107-1315

1
Out of stock

13107A

SHAFT,OUTPUT,15T

13107-1316

1
Out of stock

13107B

SHAFT,INPUT

13107-1471

1
Out of stock

13139

SHIFTER,FR/RR

13139-1072

1
Out of stock

13260

GEAR,OUTPUT REVERSE,51T

13260-1288

1
Out of stock

13260A

GEAR,INPUT 28T

13260-1462

1
Out of stock

39134

SPROCKET-DRIVE,20T

39134-1055

1

$118.54

In stock

39135

SPROCKET-DRIVEN,41T

39135-1055

1

$145.89

In stock

41060

GEAR-METER SCREW

41060-1147

1

$38.53

In stock

59051

GEAR-SPUR

59051-2097

1
Out of stock

92022

WASHER,25.3X33X1

92022-1109

1
Out of stock

92022A

WASHER,22.3X33X1.0

92022-1573

1
Out of stock

92026

SPACER,35.3X44X0.5

92026-1375

1
Out of stock

92033

RING-SNAP

92033-1269

1
Out of stock

92057

CHAIN,REVERSE,81RH2520,54L

92057-1364

1
Out of stock

92143

COLLAR,8X14X10.5

92143-1497

1
Out of stock

92143A

COLLAR,25X32X4.5

92143-1597

1
Out of stock

92200

WASHER,GOVERNOR GEAR

92200-1155

1
Out of stock
